PC Specialist Nucleus AMD Threadripper 2990WX Workstation

1. Introduction2. PC Specialist Nucleus3. Testing Methodology4. Cinebench R155. SPECviewperf 12.16. SPECviewperf 137. CPU, OpenCL and CUDA Rendering8. Video Encoding9. Total System Power Consumption10. SSD Performance11. Closing Thoughts12. View All Pages

The SPECviewperf 13 benchmark is the worldwide standard for measuring graphics performance based on professional applications. The benchmark measures the 3D graphics performance of systems running under the OpenGL and Direct X application programming interfaces. The benchmark’s workloads, called viewsets, represent graphics content and behavior from actual applications.

The latest version is SPECviewperf 13, released on May 23, 2018. SPECgpc members at the time of V13 release include AMD, Dell, Fujitsu, HP, Intel, Lenovo, and NVIDIA.

SPECviewperf 13 is a comprehensive upgrade of previous versions of the benchmark. Medical and energy viewsets incorporate new models and raycasting for volume visualization; the Maya viewset features new models based on the SPECapc for Maya 2017 benchmark; and the Creo viewset has been updated with fresh application traces. All other viewsets have been recompiled with minor changes. Results from SPECviewperf 13 are not comparable to those from earlier versions.

Other major updates in SPECviewperf 13 include:

• Support for 4K resolution displays.
• New reporting methods, including JSON output that enables more robust and flexible result parsing.
• A new user interface that will be standardized across all SPEC/GWPG benchmarks.
• New workloads and scoring that reflect the range of activities found in real-world applications.
• Various bug fixes and performance improvements.

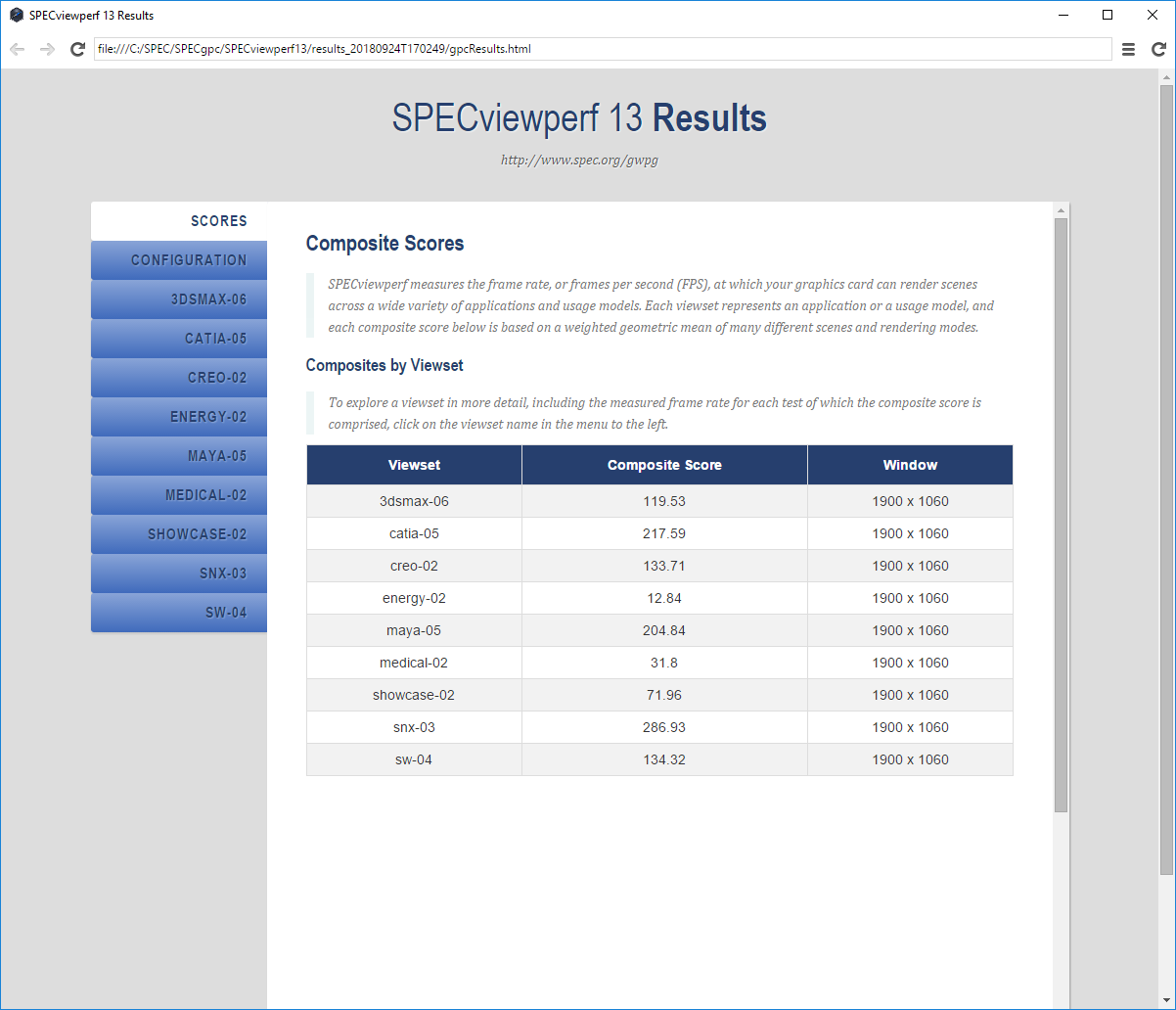

We only have comparative results from a machine with the same processor but AMD Radeon Pro WX 9100 graphics, which are nearly twice the price and therefore a more direct competitor to the Quadro P5000 rather than the P4000 in the PC Specialist system.

You can see that the P4000 fares quite well, particularly with the Siemens NX and SolidWorks tests. It's a little behind with 3ds Max and Maya, but still very serviceable. It's a little behind with CATIA and quite a bit with Creo, but overall you're getting very credible modelling ability whether using 3D animation, product design, engineering or scientific visualisation software. As with SPECviewperf 12.1, though, the particular strength is product design software.
