The PCMark 10 Data Drive Benchmark has been designed to test drives that are used for storing files rather than applications. You can also use this test with NAS drives, USB sticks, memory cards, and other external storage devices.
The Data Drive Benchmark uses 3 traces, running 3 passes with each trace.

Trace 1. Copying 339 JPEG files, 2.37 GB in total, in to the target drive (write test).
Trace 2. Making a copy of the JPEG files (read-write test).
Trace 3. Copying the JPEG files to another drive (read test)

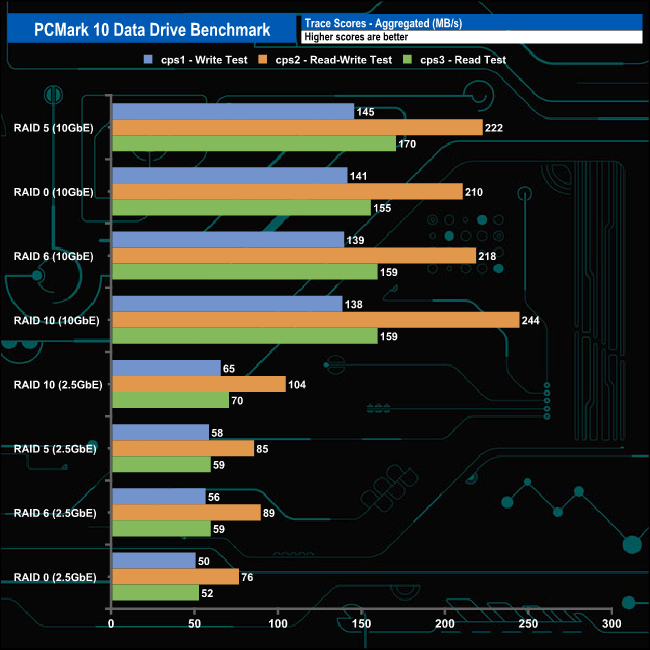

Here we show the total bandwidth performance for each of the individual traces.

The fastest performance from the test traces came using a RAID 10 array at 10GbE and the cps2 Read-Write test with a test result of 244MB/s. For this test, the drive averaged 223.5MB/s using the 10GbE connection and 88.5MB/s with the NAS connected at 2.5GbE.

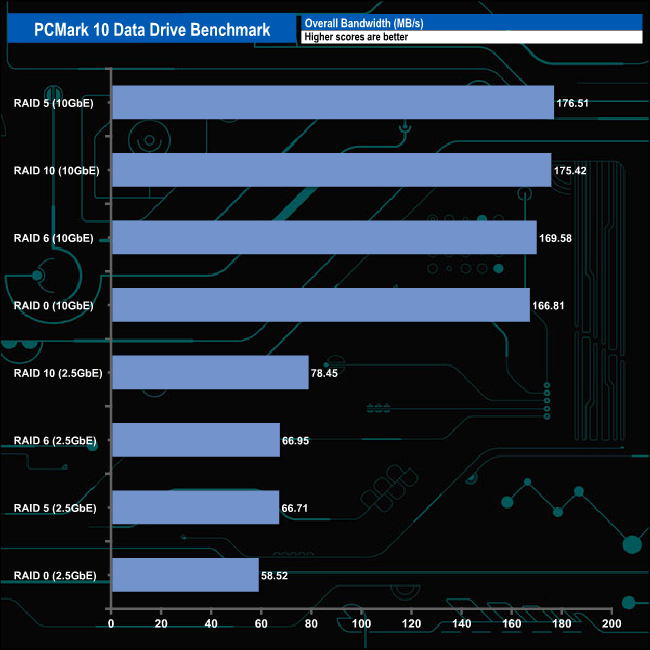

When it comes to the Overall Bandwidth result, the NASync DXP4800Plus averaged 172.08MB/s using a 10GbE connection and 68.15MB/s using 2.5GbE.
