The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

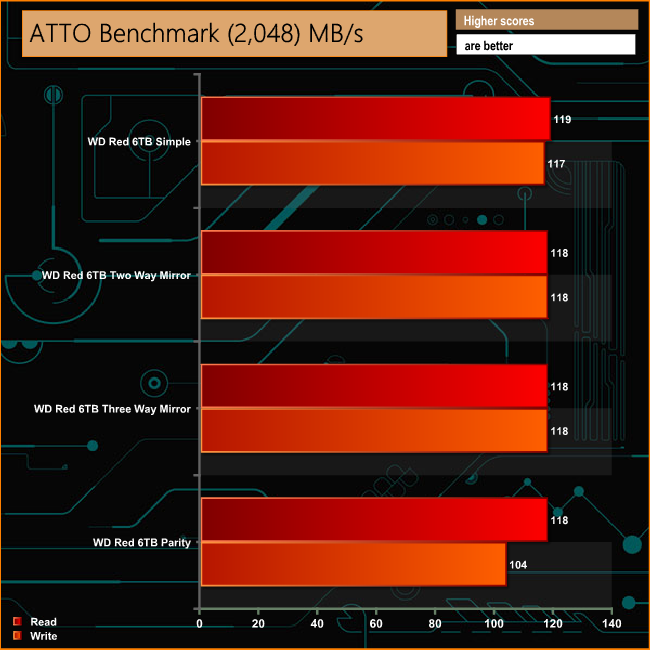

Although the 4K performance of the W5810 is nothing to get excited about, its Sequential performance is good and for the most part consistent across the various Storage Space modes at around 118MB/s for both reads and writes. The only time the performance drops is during the write test when the disks are set up in Parity mode, producing a figure of 104MB/s.
