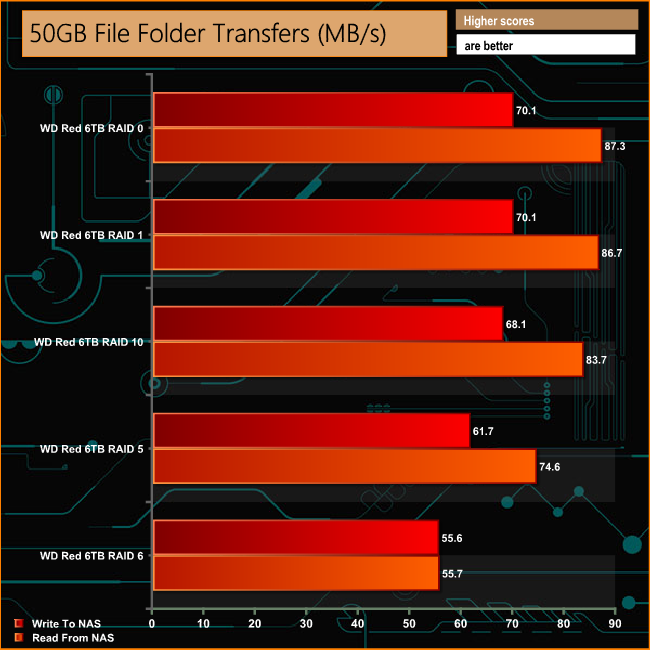

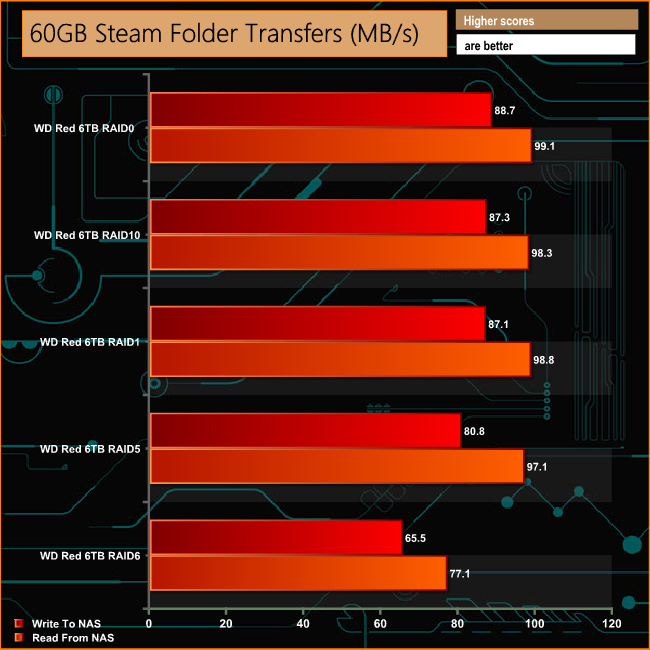

The Synology DS1517+ performed well in all our real life transfer tests. During the 60GB Steam folder test it got very close to the 100MB/s mark for reads and over 80MB/s for writes for all arrays except RAID 6 where the performance dropped off for both reads and writes. It was the same story in the 50GB File folder transfer with pretty good performance across the arrays apart from RAID 6.
Tags 5-bay NAS DS1517+ DSM 6.1 Intel Atom C2538 Review synology diskstation
We check out an all-AMD prebuilt from Ebuyer AlphaSync
Thank you for visiting KitGuru. Our news and reviews teams work hard to bring you the latest stories and finest, in-depth analysis.
We want to be as informative as possible – and to help our readers make the best buying decisions. The mechanism we use to run our business and pay some of the best journalists in the world, is advertising.
If you want to support KitGuru, then please add www.kitguru.net to your ad blocking whitelist or disable your adblocking software. It really makes a difference and allows us to continue creating the kind of content you really want to read.
It is important you know that we don’t run pop ups, pop unders, audio ads, code tracking ads or anything else that would interfere with the KitGuru experience. Adblockers can actually block some of our free content, such as galleries!
KitGuru KitGuru.net – Tech News | Hardware News | Hardware Reviews | IOS | Mobile | Gaming | Graphics Cards
Somehow the benchmark results do not make a lot of sense to me ie looking at the throughput benchmarks most of them hover around 100 MB/sec despite the different RAID set-ups ie one would expect for example a noticeable difference between RAID-0 and RAID-5….
My guess is that you connected the NAS and/or workstation via a standard 1 Gigabit Ethernet to the Network and therefore the LAN became the bottleneck at around 100 MB/sec ie 1 Gigabit …
In a 10 Gigabit LAN with 5 HDs installed I would expect that you should get close to 400 – 500 Megybytes/sec (at least thats my experience with Synology although I am not familiar with this specific model, so there might be otehr bottleneckes in the specific set-up, also 10 Gigabit needs a little bit of tuning until you get good throughput).
