To test real life file/folder performance we use a number of different file/folder combinations to test the read and write performance of the NAS device. Using the FastCopy utility to get a MB/s and time taken for each transfer, the data is written from and read back to a 960GB SSD.

We use the following file/folder types:

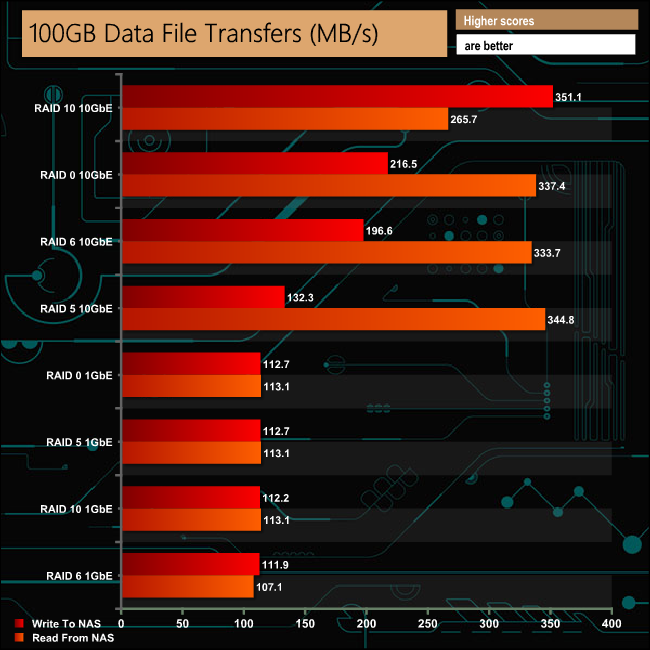

• 100GB data file.

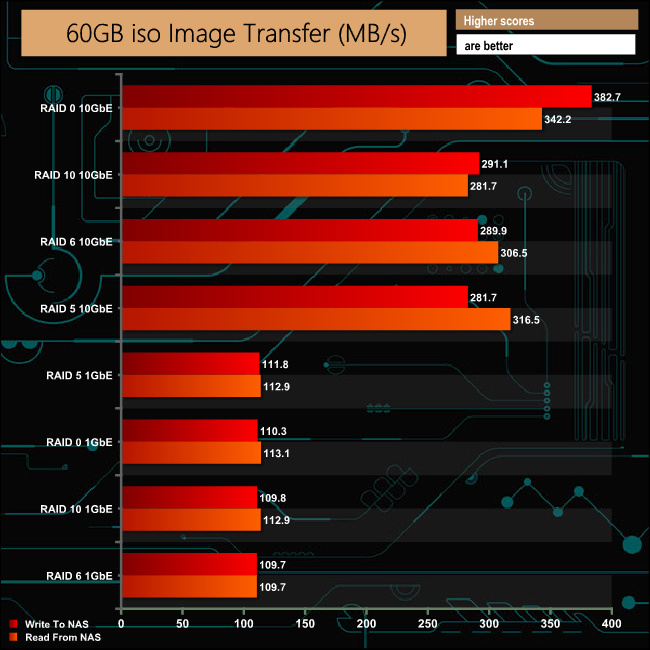

• 60GB iso image.

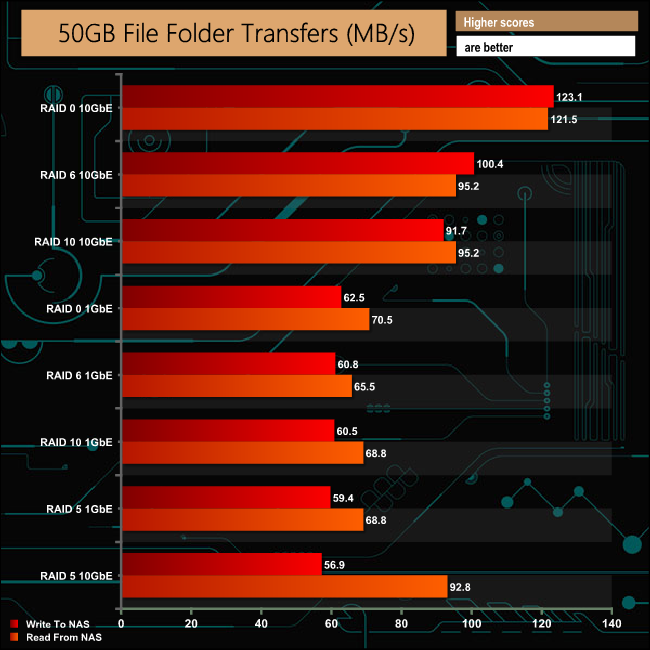

• 50GB File folder – 28,523 files.

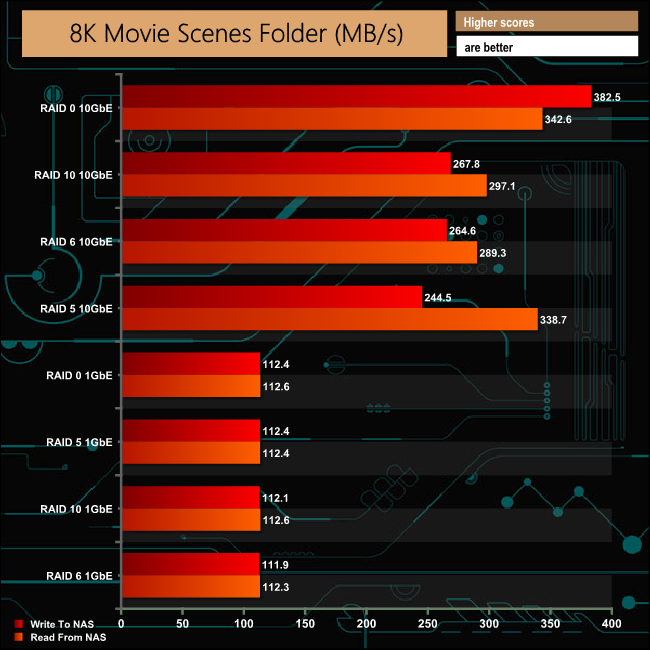

• 21GB 8K Movie demos.

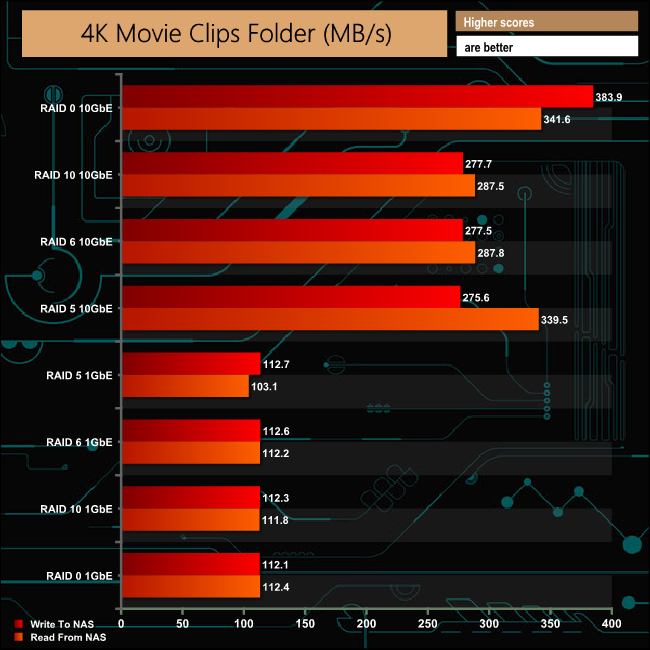

• 11GB 4K Raw Movie Clips (8 MP4V files).

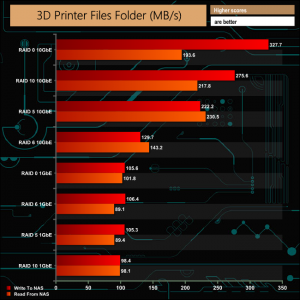

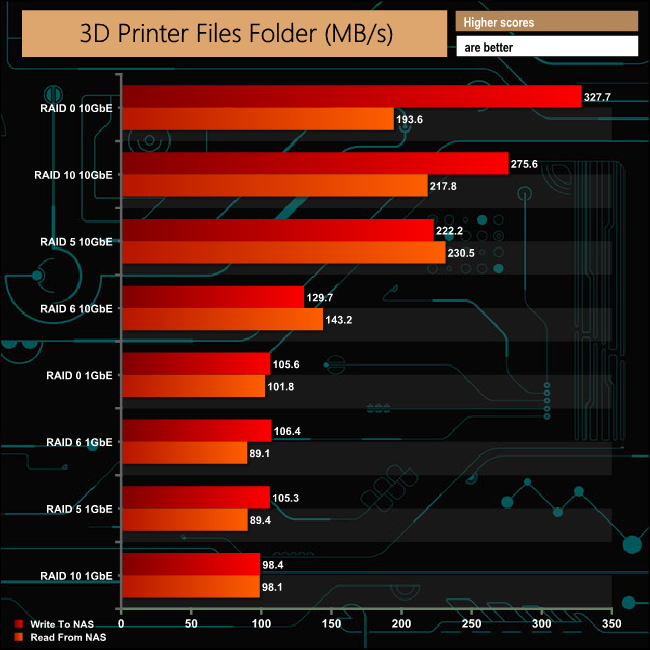

• 4.25GB 3D Printer File Folder (mostly .STL).

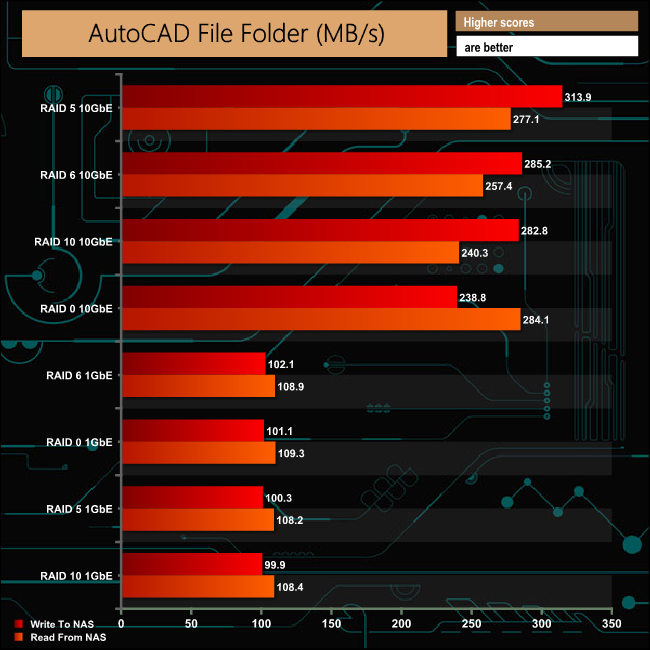

• 1GB AutoCAD File Folder (.dwg and .dxf).

Click to enlarge.

The XCubeNAS XN5004T didn't have any problems dealing with our real life file transfer tests showing some strong bandwidth figures across the arrays.
