QNAP TS-453Be 4-bay NAS Review

1. Introduction2. Packaging & Bundle3. QNAP TS-435Be - Design4. QTS 4.35. Usability6. Testing Methodology7. ATTO Disk Benchmark8. Intel NASPT9. IOMETER10. Encryption Performance11. Workload Scenarios12. Real Life File Testing13. Power Consumption14. Closing Thoughts15. View All Pages

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

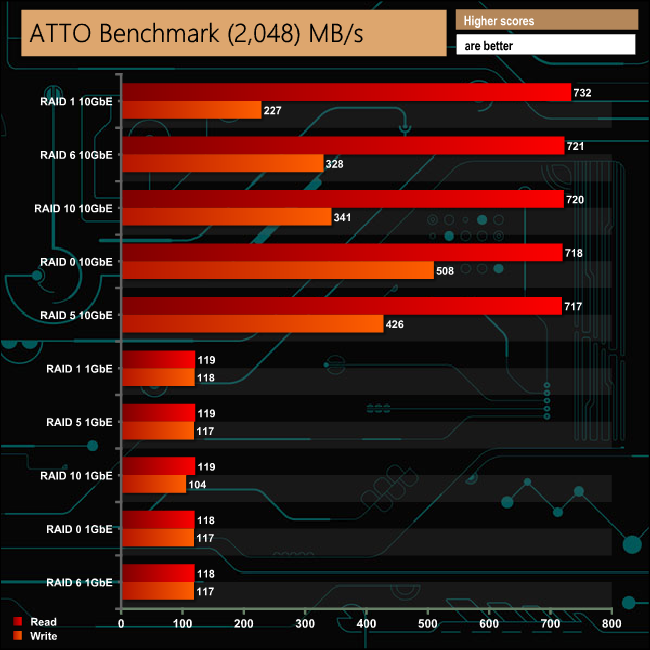

Using a single Gigabit Ethernet connection, the sequential read/write performance of the TS-453Be peaks at 119MB/s and 118MB/s respectively which is around the maximum speed you will see from that interface. The 10GbE performance is very good, taking into account that while the QM2-2P10G1T card has a PCIe x4 interface, the PCIe slot in the TS-453Be is only x2. Peak read performance came in the RAID 1 setup at 732MB/s while the best write performance we saw came from the RAID 0 array at 508MB/s.
