To test real life file/folder performance we use a number of different file/folder combinations to test the read and write performance of the NAS device. Using the FastCopy utility to get a MB/s and time taken for each transfer, the data is written from and read back to a 240GB SSD.

We test the following file/folders:

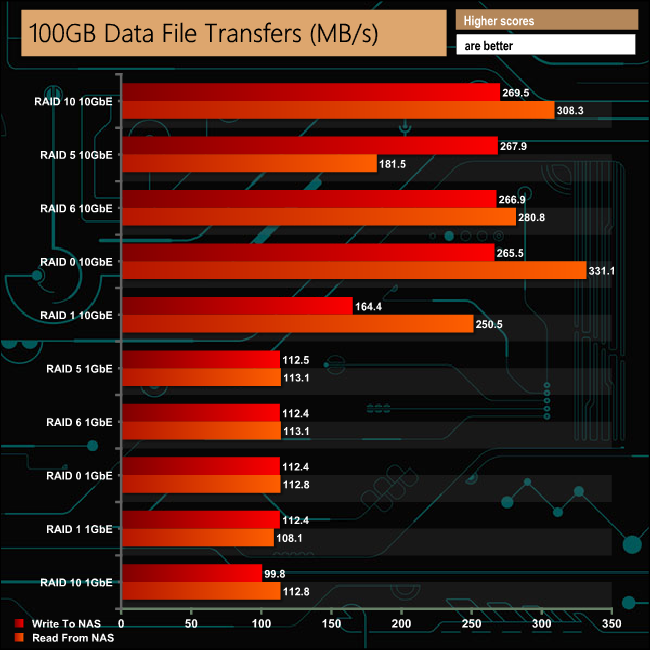

100GB data file.

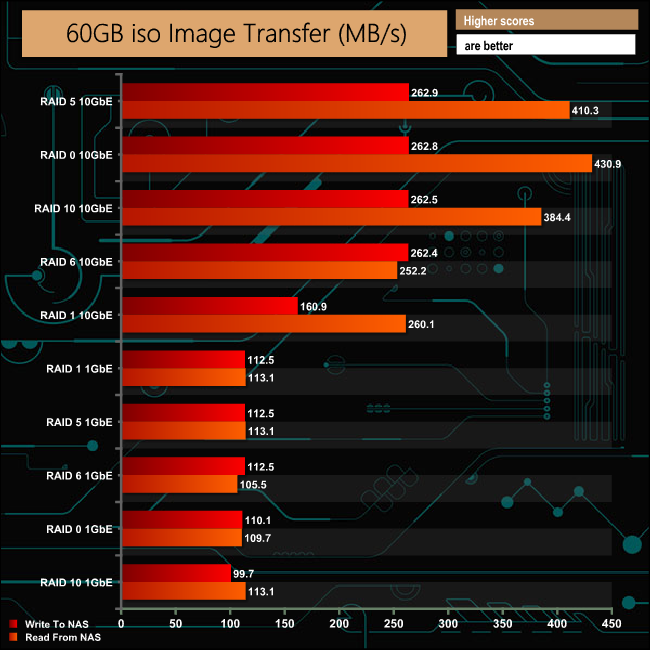

60GB iso image.

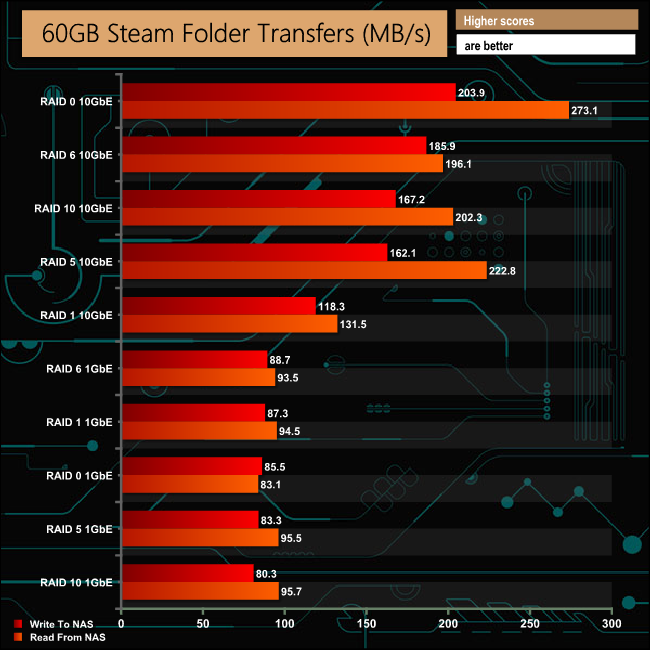

60GB Steam folder: 29,521 files.

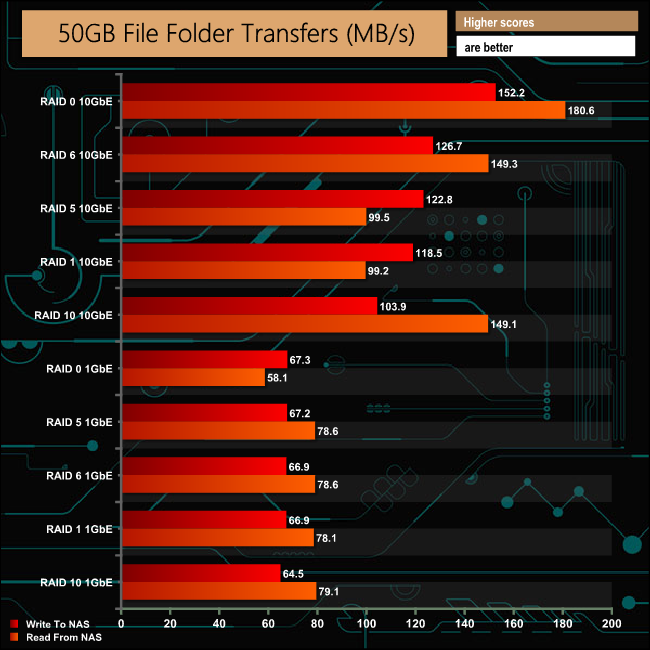

50GB Files folder: 28,523 files.

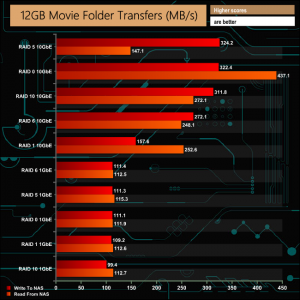

12GB Movie folder: 24 files – mix of Blu-ray and 4K files.

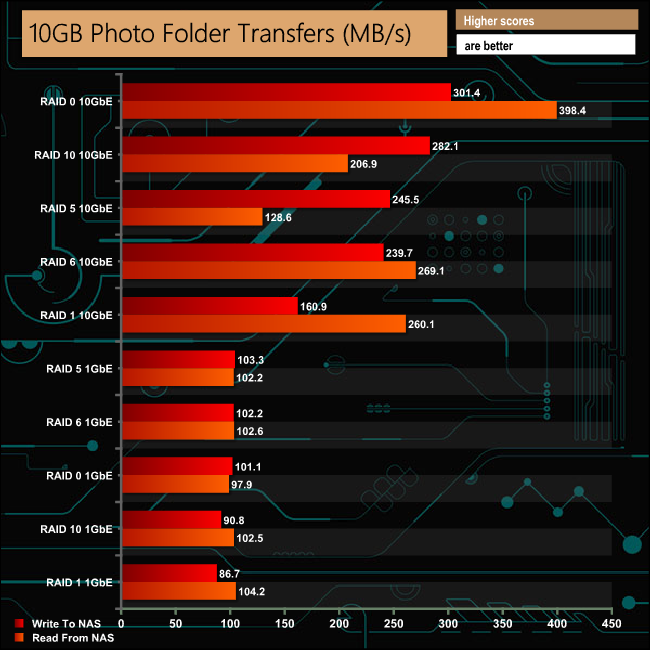

10GB Photo folder: 621 files – mix of .png, .raw and .jpeg images.

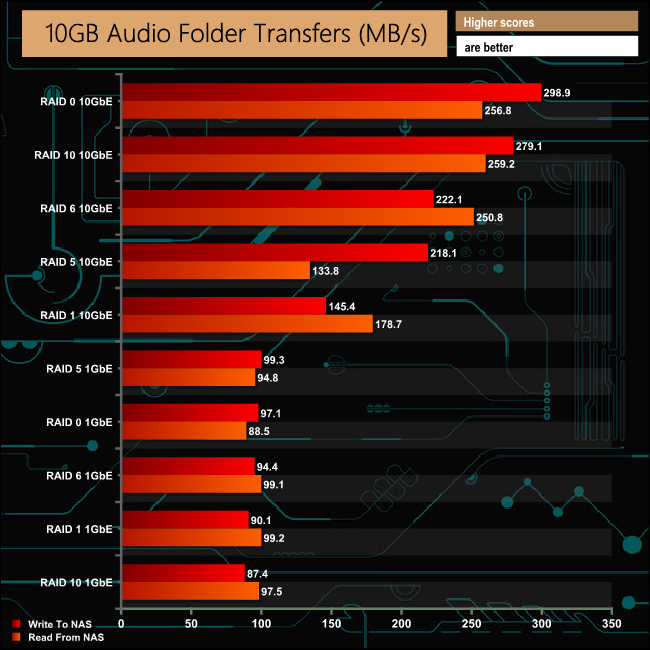

10GB Audio folder: 1,483 files – mix of .mp3 and .flac files.

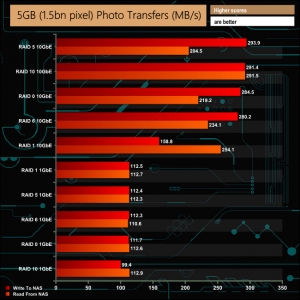

5GB (1.5m pixel) image.

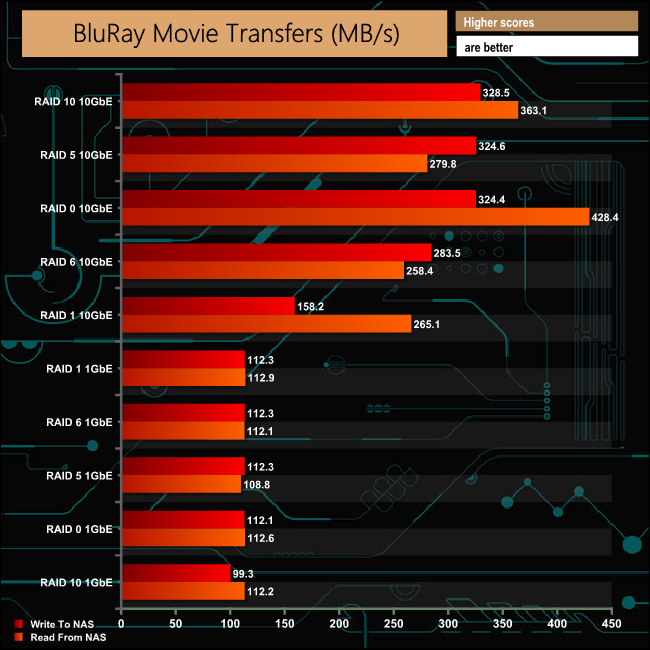

BluRay Movie.









Click charts to enlarge.

The TS-453Be had no problem at all dealing with our real life file transfers with excellent transfer rates for both connection speeds.
