QNAP TS-364-4G 3-bay NAS Review

1. Introduction2. QNAP TS-364 /Packaging & Bundle3. QNAP TS-364 / Design4. QNAP QTS5. Usability6. Testing Methodology7. ATTO Disk Benchmark8. Intel NASPT9. Backup / Restore10. Encryption Performance11. PCMark10 Data Drive Benchmark12. Real Life File Testing13. SSD Cache Performance14. Power15. Closing Thoughts16. View All Pages

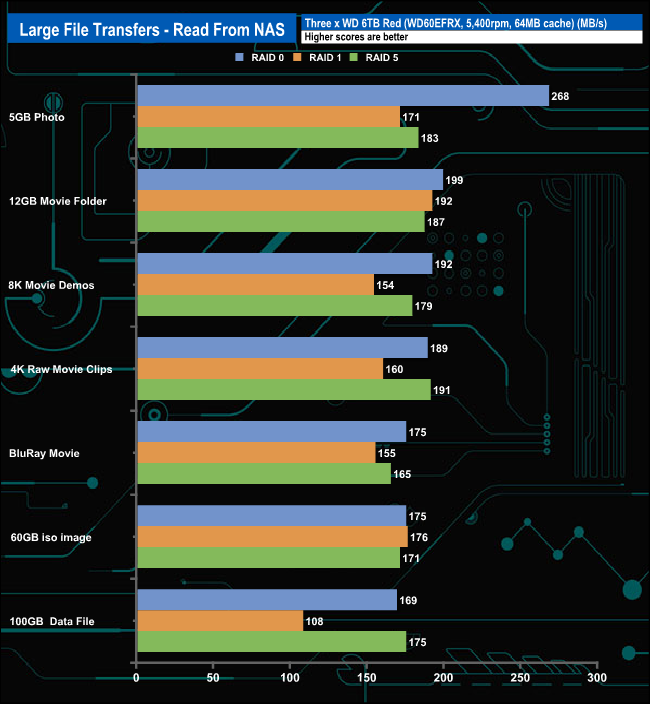

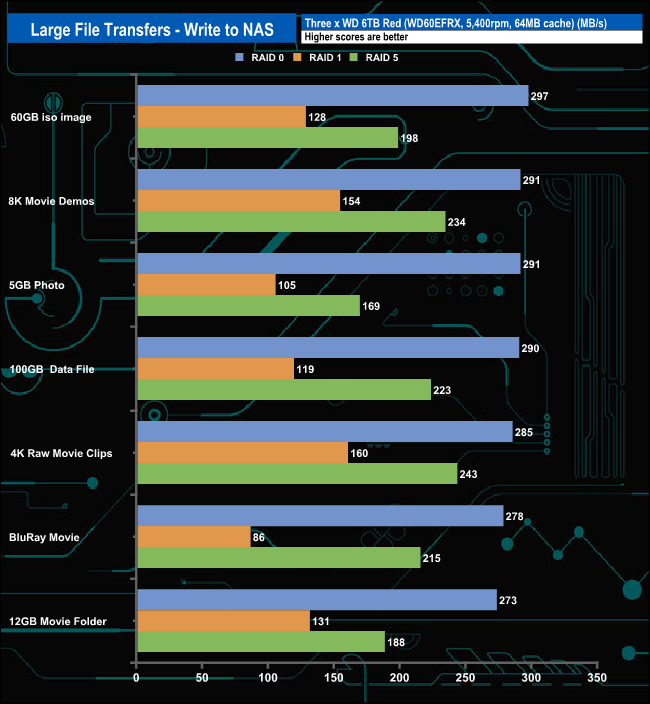

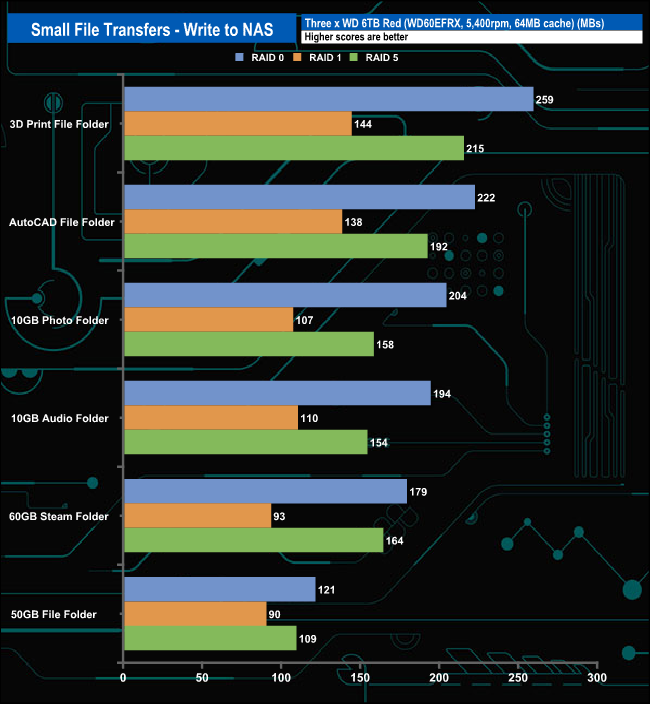

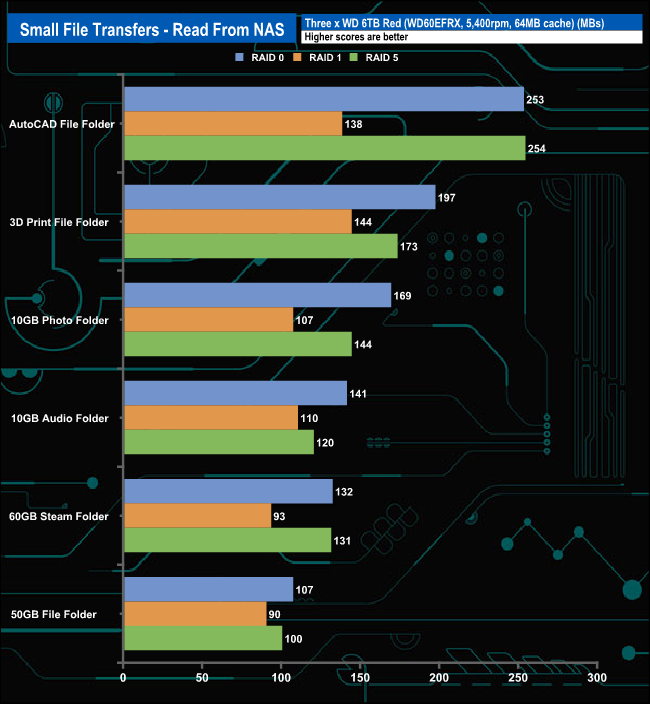

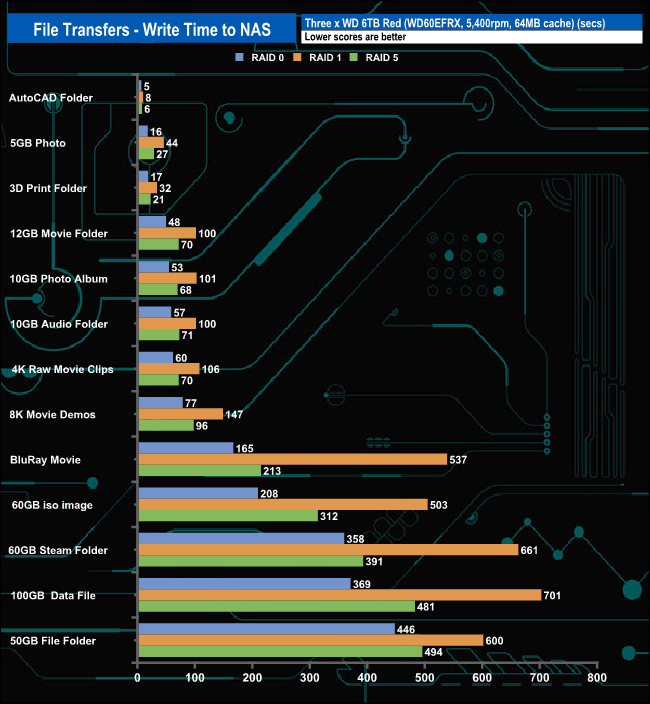

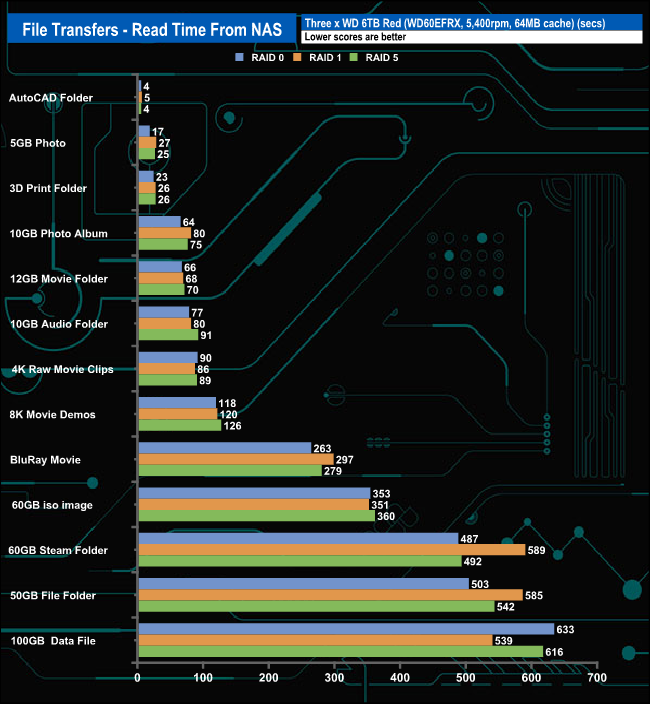

To test real life performance of an NAS we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of drive reading from & writing to a 256GB Samsung SSD850 PRO.

We use the following folder/file types:

• 100GB data file.
• 60GB iso image.
• 60GB Steam folder – 29,521 files.
• 50GB File folder – 28,523 files.
• 12GB Movie folder – (15 files – 8 @ .MKV, 4 @ .MOV, 3 @ MP4).
• 10GB Photo folder – (304 files – 171 @ .RAW, 105 @ JPG, 21 @ .CR2, 5 @ .DNG).
• 10GB Audio folder – (1,483 files – 1479 @ MP3, 4 @ .FLAC files).
• 5GB (1.5bn pixel) photo.
• BluRay Movie – 42GB.
• 21GB 8K Movie demos – (11 demos)
• 16GB 4K Raw Movie Clips – (9 MP4V files).
• 4.25GB 3D Printer File Folder – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).
• 1.5GB AutoCAD File Folder (80 files – 60 @ .DWG and 20 @.DXF).

The TS-364 dealt with our real-life file transfer tests without any real problems and displayed a good deal of consistency across the tested arrays.
