To test real life file/folder performance we use a number of different file/folder combinations to test the read and write performance of the NAS device. Using the FastCopy utility to get a MB/s and time taken for each transfer, the data is written from and read back to a 240GB SSD.

We use the following file/folder types:

• 100GB data file.

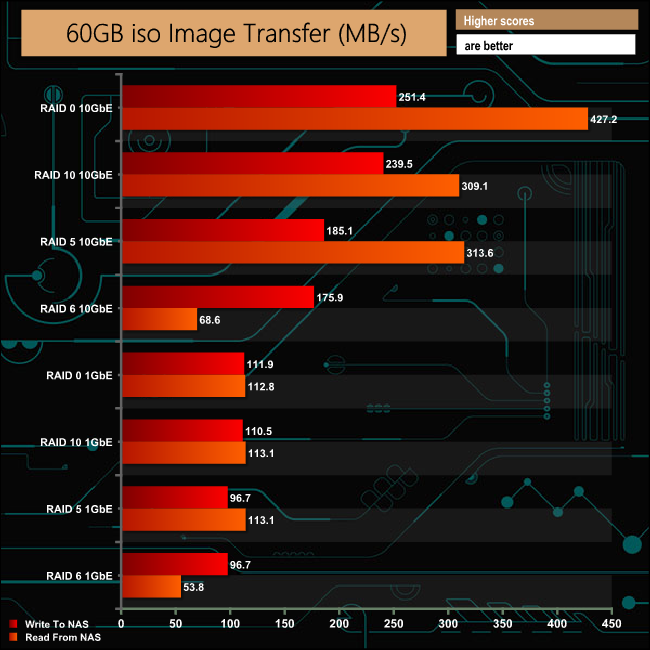

• 60GB iso image.

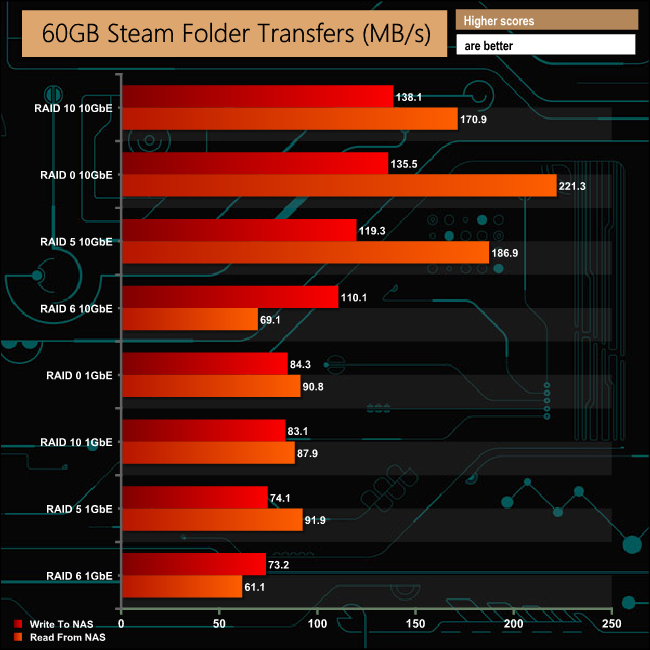

• 60GB Steam folder: 29,521 files.

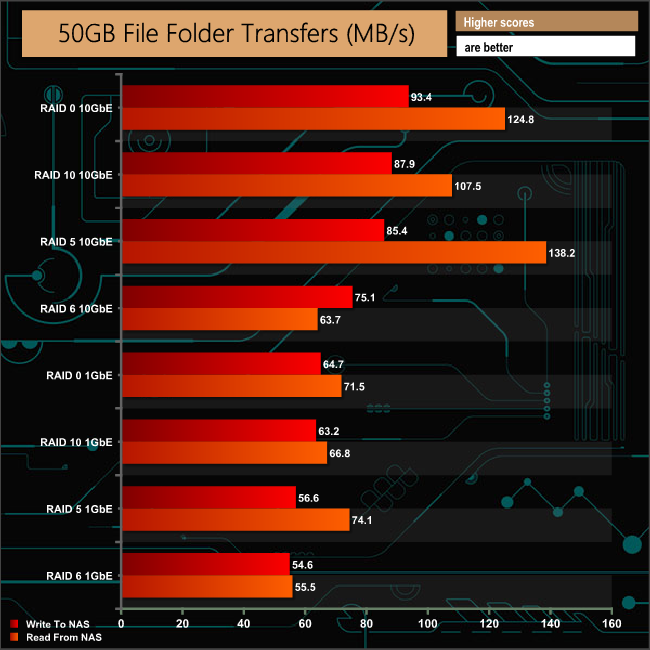

• 50GB Files folder: 28,523 files.

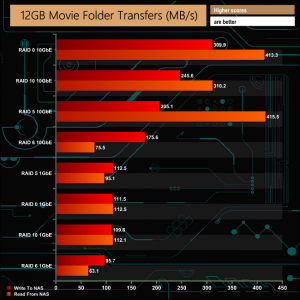

• 12GB Movie folder: 24 files – mix of Blu-ray and 4K files.

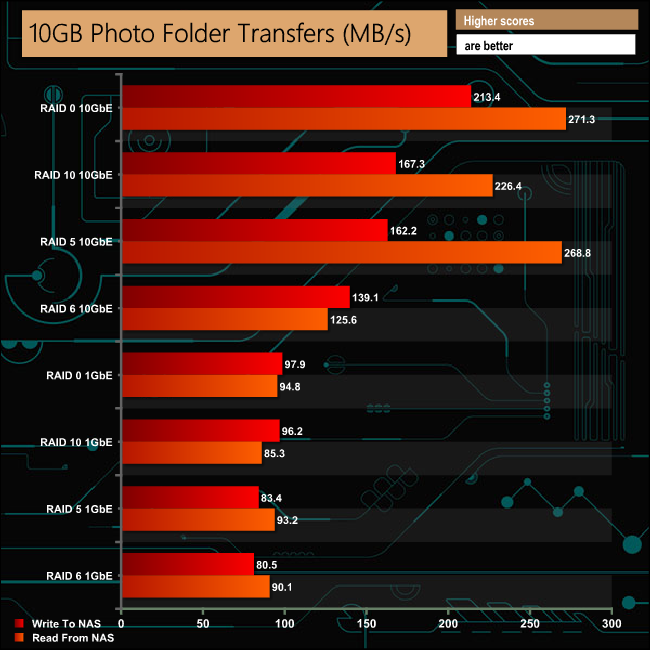

• 10GB Photo folder: 621 files – mix of .png, .raw and .jpeg images.

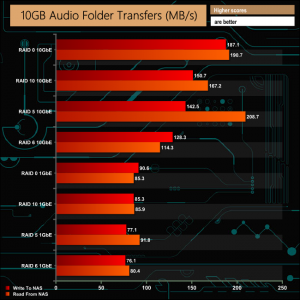

• 10GB Audio folder: 1,483 files – mix of .mp3 and .flac files.

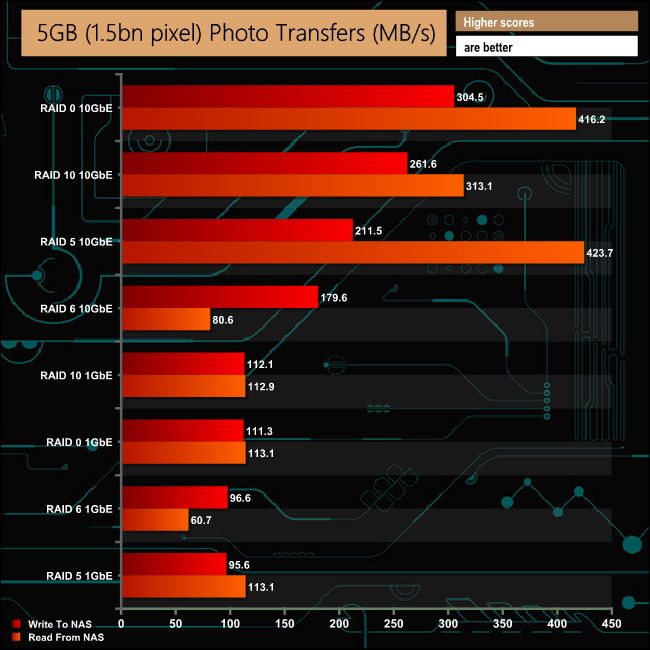

• 5GB (1.5m pixel) image.

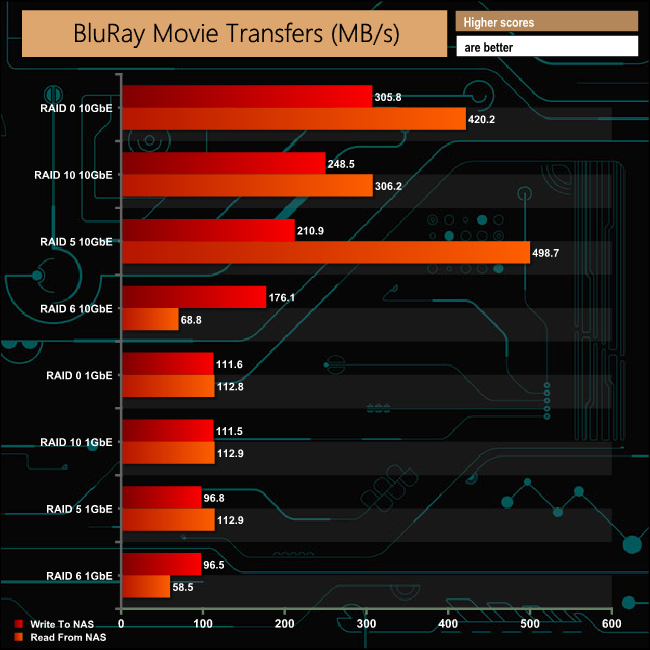

• BluRay Movie.



Click to enlarge.

The AS4004T had no trouble dealing with our real life file transfers, although the write performance in RAID 6 was the slowest in most of the tests at both connection speeds.
