System latency is another area of our testing, where we use Nvidia’s Latency and Display Analyzer Tool (LDAT) to measure end-to-end system latency. LDAT itself is a photosensor which is placed on the monitor. It has an integrated mouse button, allowing it to measure the total time taken from mouse click, to an action happening on screen, which is done by measuring a change in luminance. This data is logged to a CSV file over USB, allowing for close analysis of the data.

As this is end-to-end system latency, we are not measuring only the processing/input latency of each monitor we test. However, we can standardise the test process so the monitor is the only variable. It also gives an insight into how different refresh rates and resolutions can affect end-to-end latency, which is of course highly relevant to your purchasing decision.

We use Rainbow Six Siege for this testing.

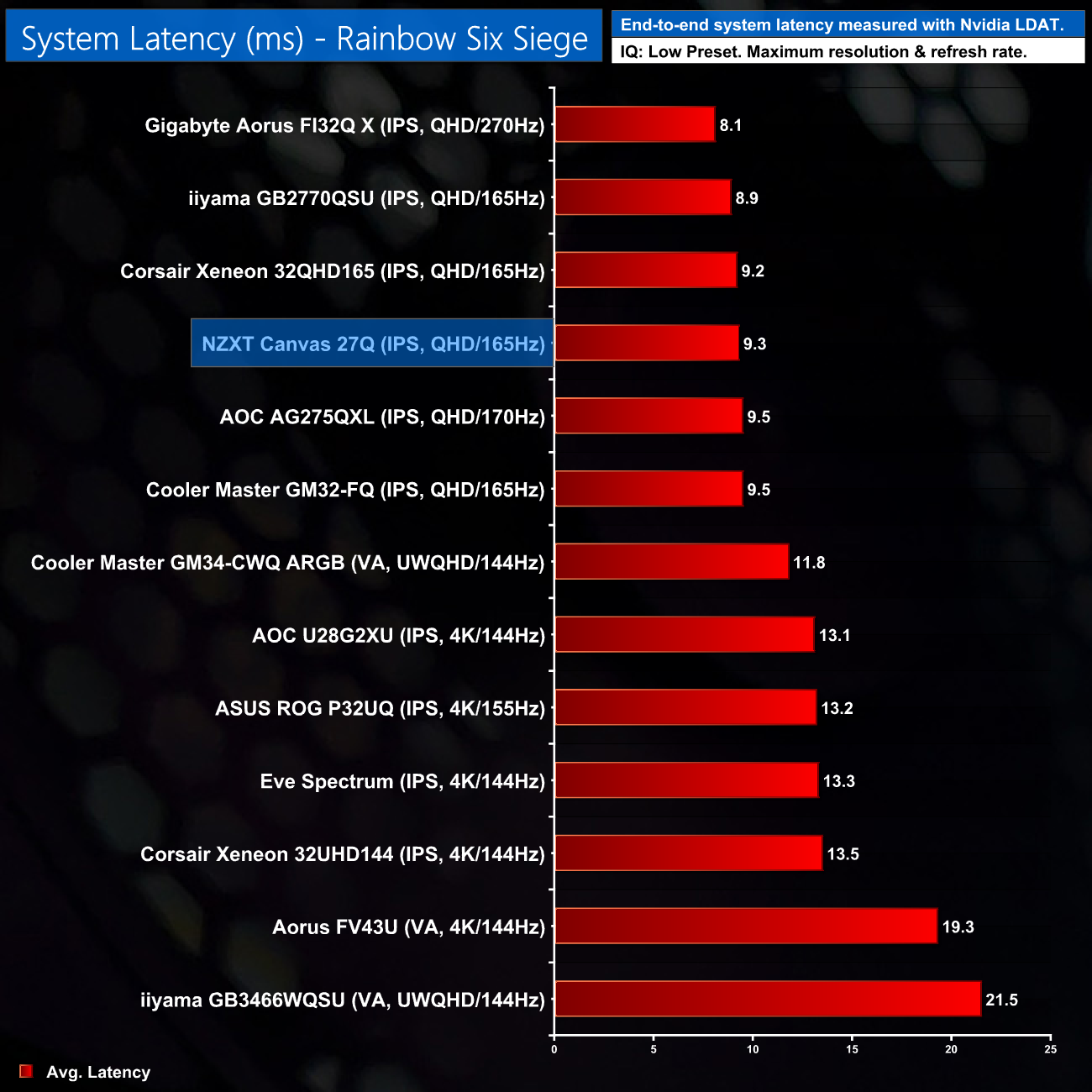

As for latency, this is right in line with other 1440p 165Hz display we have tested. The GB2270QSU does deliver fractionally less latency, but we're talking a difference of 0.4ms, so we have no complaints about the latency on show here from the Canvas 27Q.
