ASUS TUF Gaming GT502 System Build – Featuring B650 Plus WiFi

Today’s video was originally planned to be a standard chassis review of the new TUF Gaming GT502 from ASUS, but it quickly developed into something much grander! Alongside the chassis, we were also sent the new TUF Gaming B650 Plus WiFi motherboard, the recently launched TUF Gaming TF120 ARGB fans and the brand new ASUS ROG Ryuo III ARGB closed-loop 360mm CPU cooler, so we decided to look at the lot in one go.

Timestamps:
00:00 Start
00:55 ASUS TUF GT502 Case
11:28 ASUS TUF Gaming B650 Plus WiFi
13:37 ASUS TUF RTX 3080 GPU & TF120 Fans
14:44 ASUS ROG RYUO III 360 RGB Cooler
15:53 The Build components
17:13 James makes the system

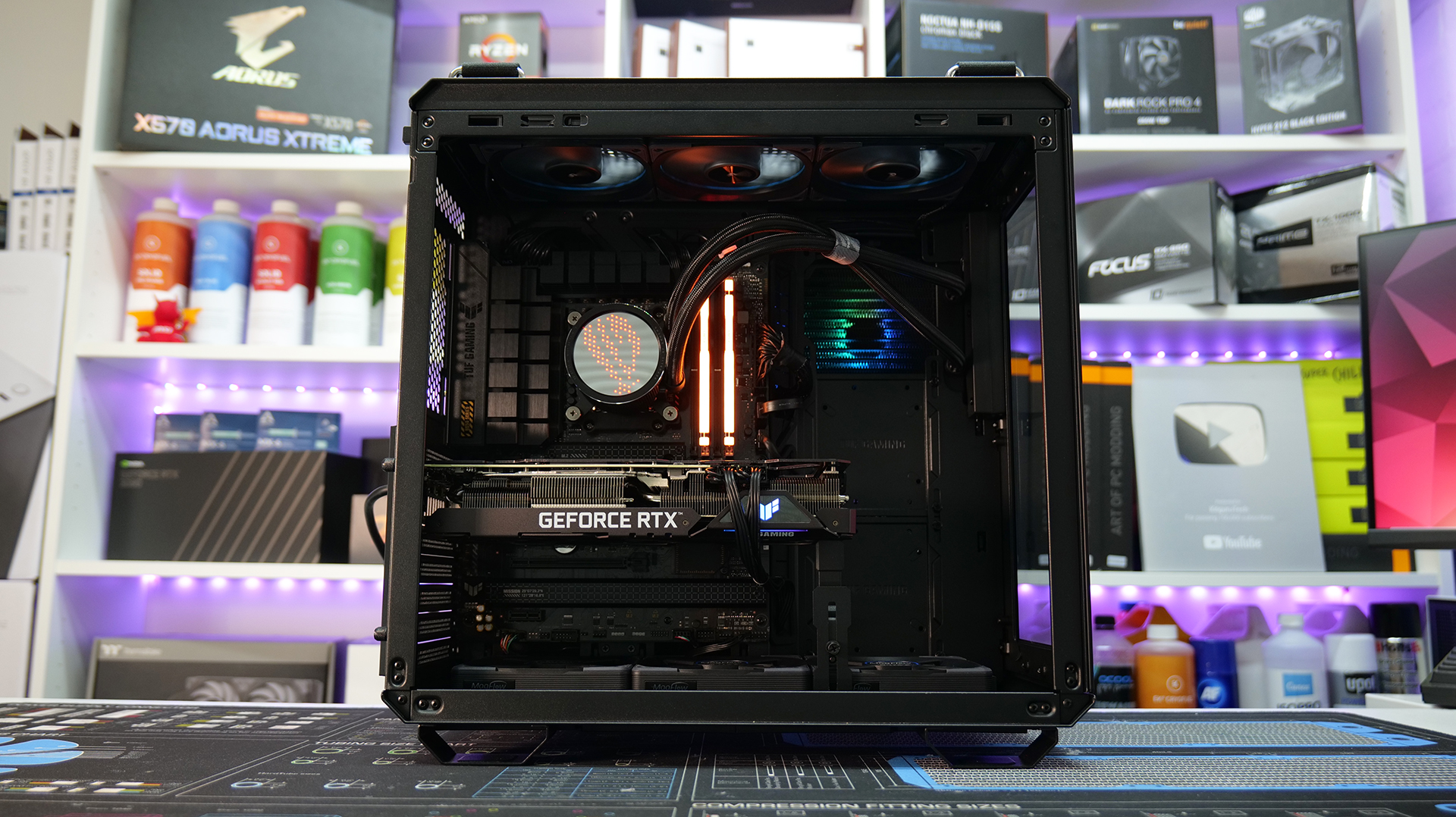

25:50 The Finished Build
27:02 James thoughts on the build
30:10 ASUS Armory Crate
30:36 Seasonic MagFlow Fans
31:18 Overclocking
33:34 James ‘Closing Thoughts

With all these new ASUS parts to look at in a short space of time, we decided to give you a semi case review combined with an initial look at the B650 Plus WiFi motherboard, TF120 fans and the ROG Ryuo (I’m still not sure how you pronounce that!) III ARGB 360mm AIO cooler. So, we have built all the parts into a system to give you guys a helping hand in deciding which (if any) of these parts you might like to splash out on soon.

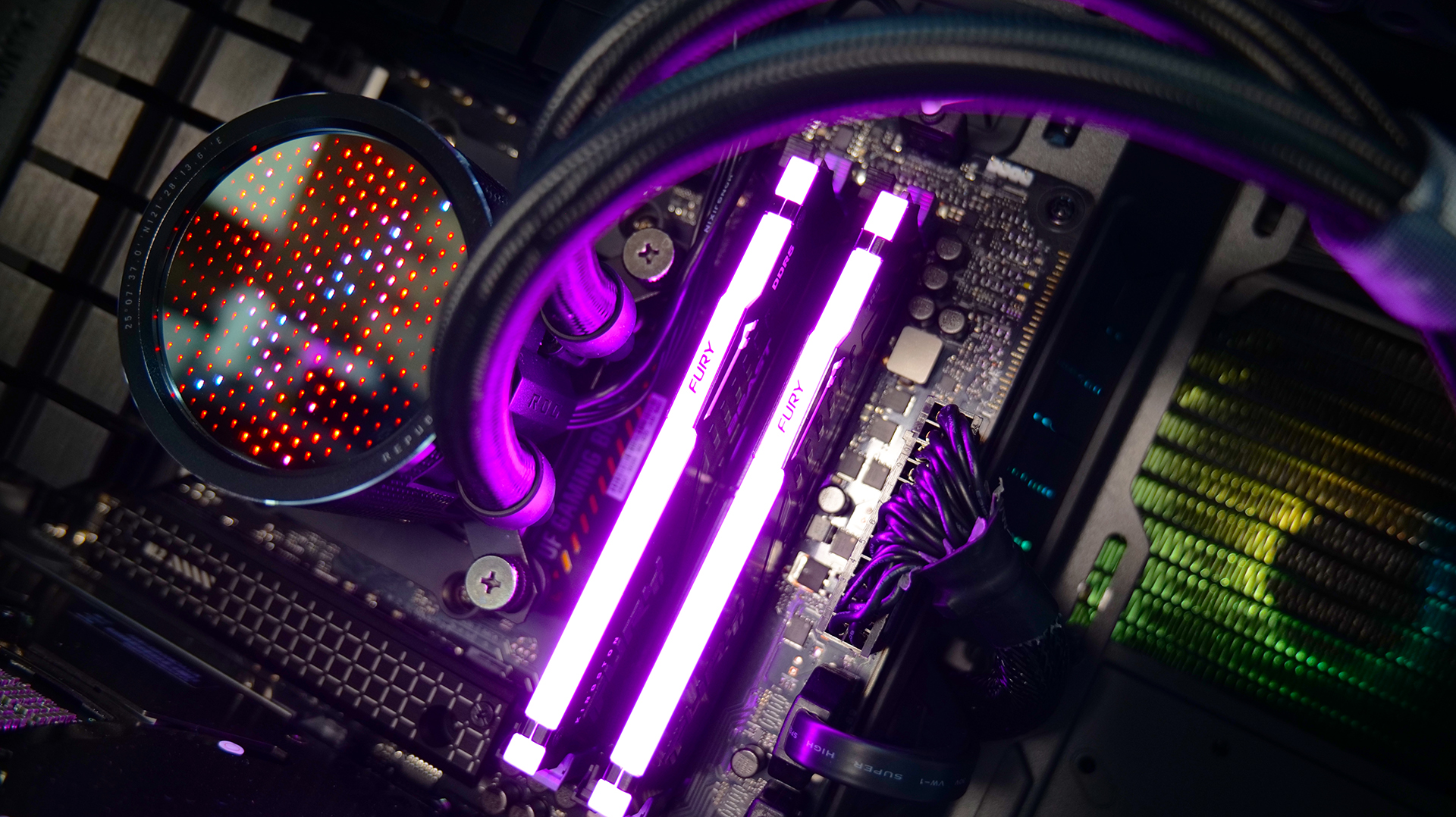

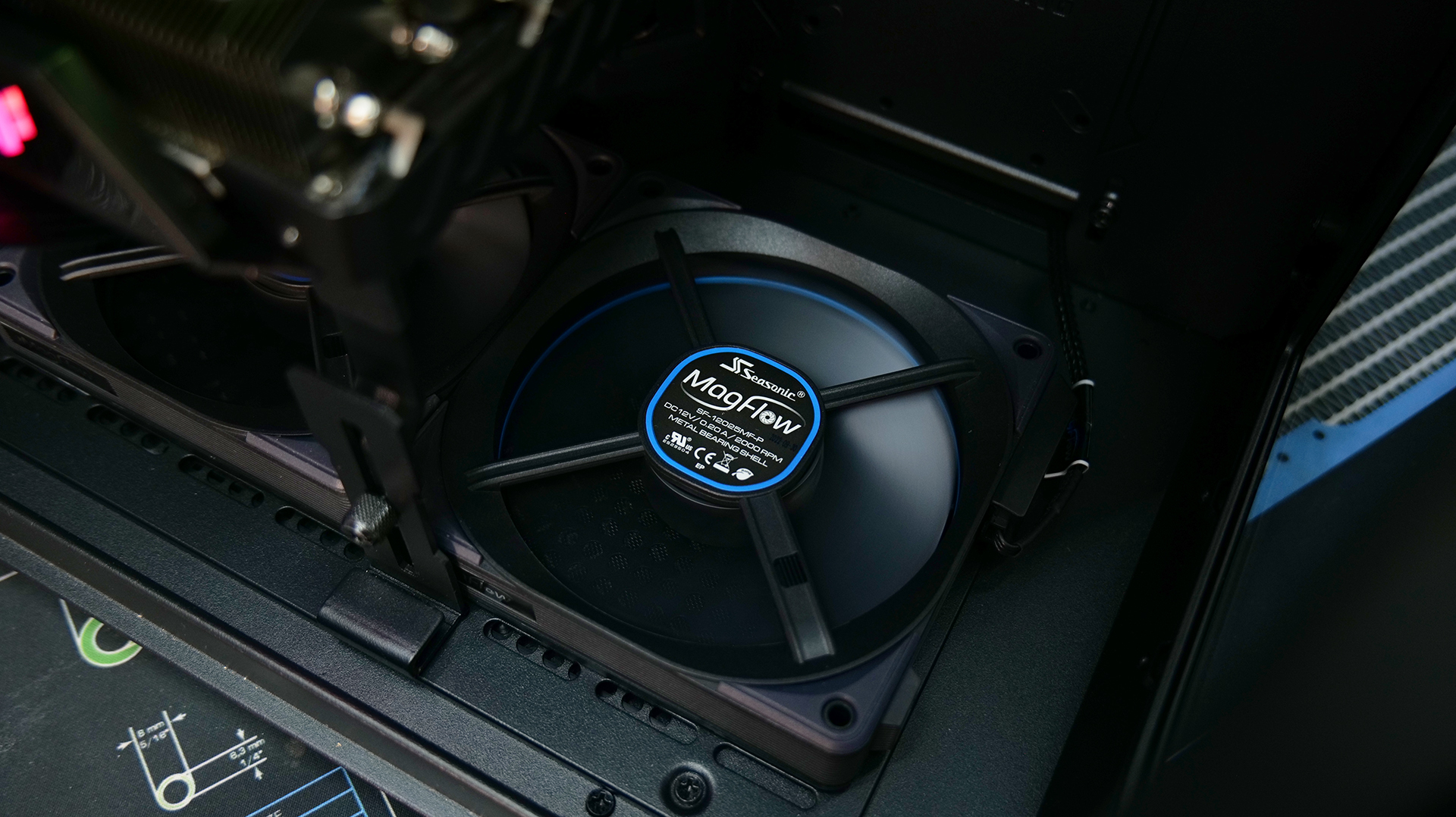

We also added a few other parts that we think are interesting bits of new hardware, including the brilliant new MagFlow 120mm fans from Seasonic and some fast AMD EXPO compatible DDR5 6000MHz Kingston Fury Beast RGB memory. An ASUS TUF RTX 3080 12GB graphics card, AMD Ryzen 7600X CPU, a WD_Black SN820 2TB PCIe Gen4 M.2 SSD were thrown in for good measure and a little bit of overclocking was applied to the CPU.

System Specification:

• CPU – AMD Ryzen 5 7600X
• Motherboard – ASUS TUF Gaming B650 Plus WiFi
• Memory – 32 GB (2 x 16GB Modules) Kingston FURY Beast EXPO RGB

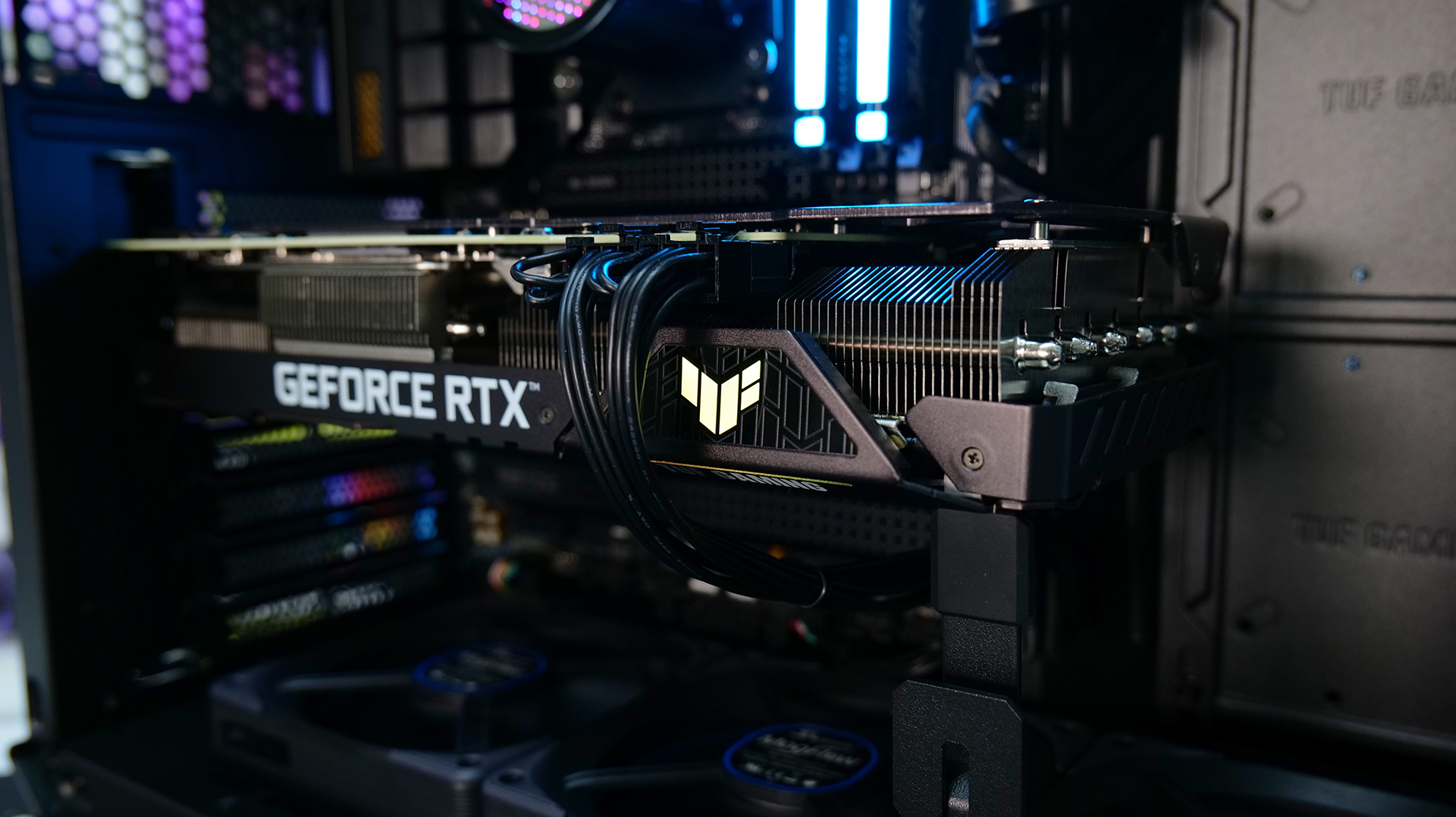

• Graphics Card – ASUS TUF Gaming RTX 3080 12G
• Main Storage – 2TB WD_Black SN850 PCIe Gen4 M.2 NVMe SSD

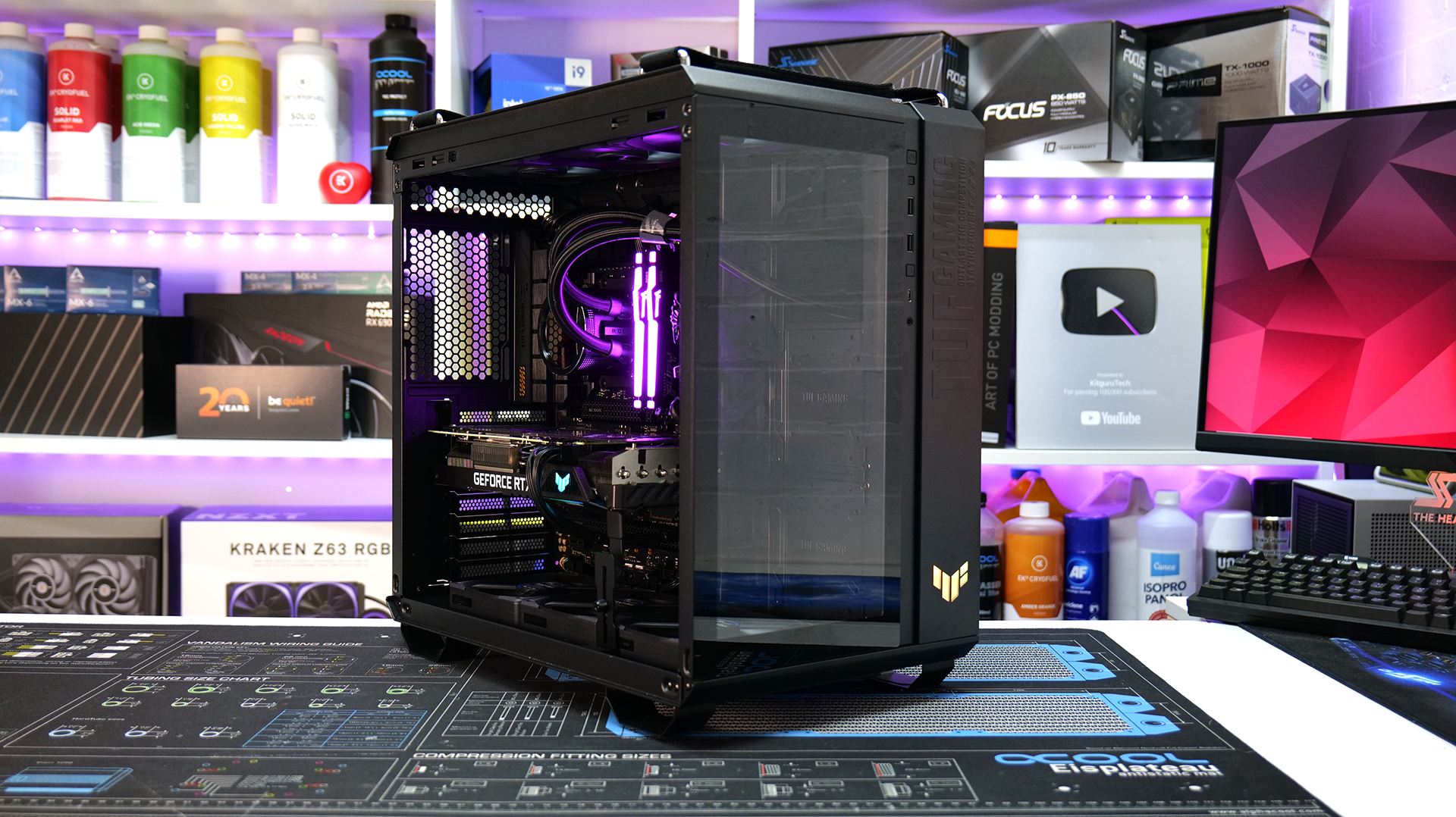

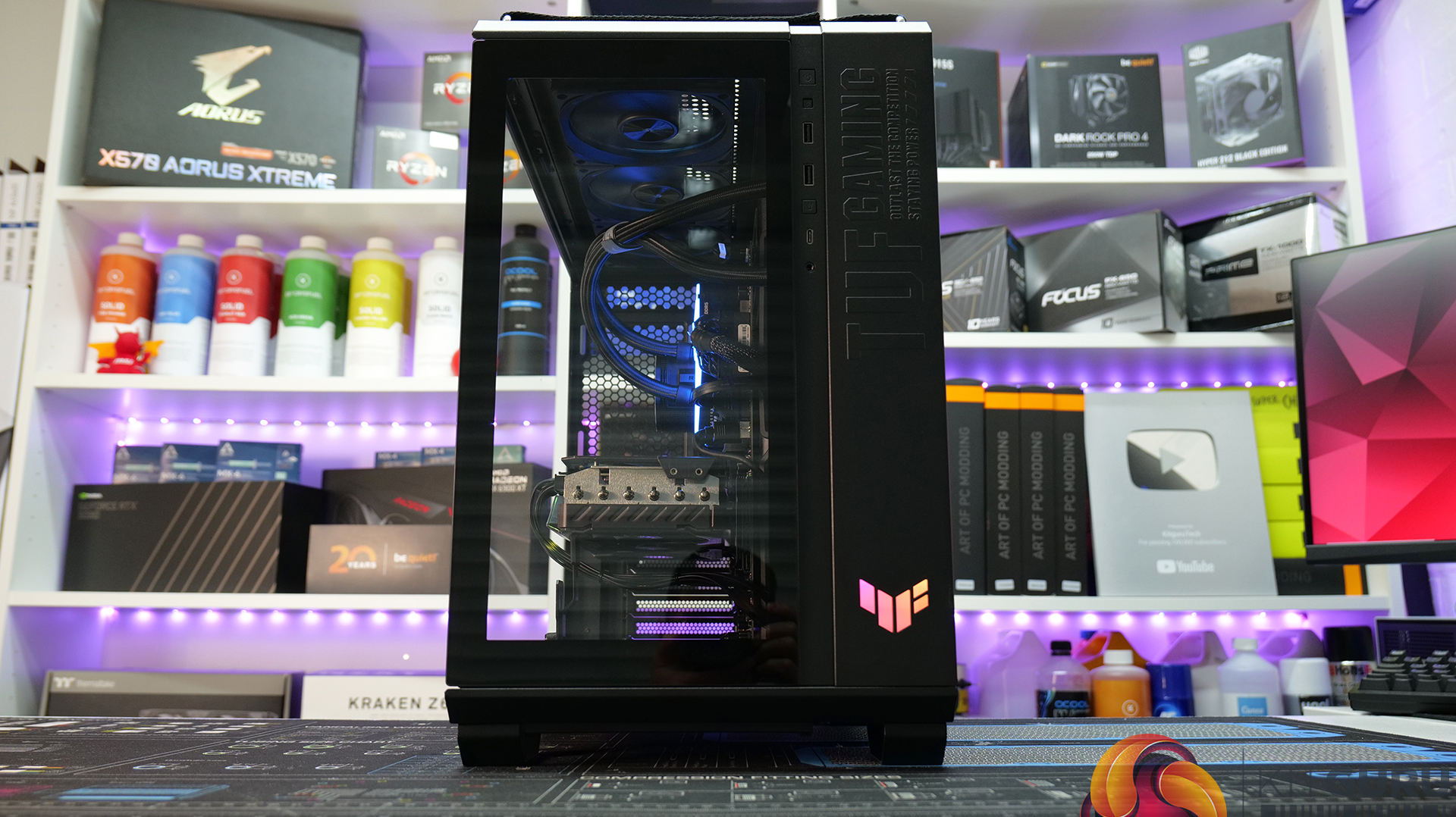

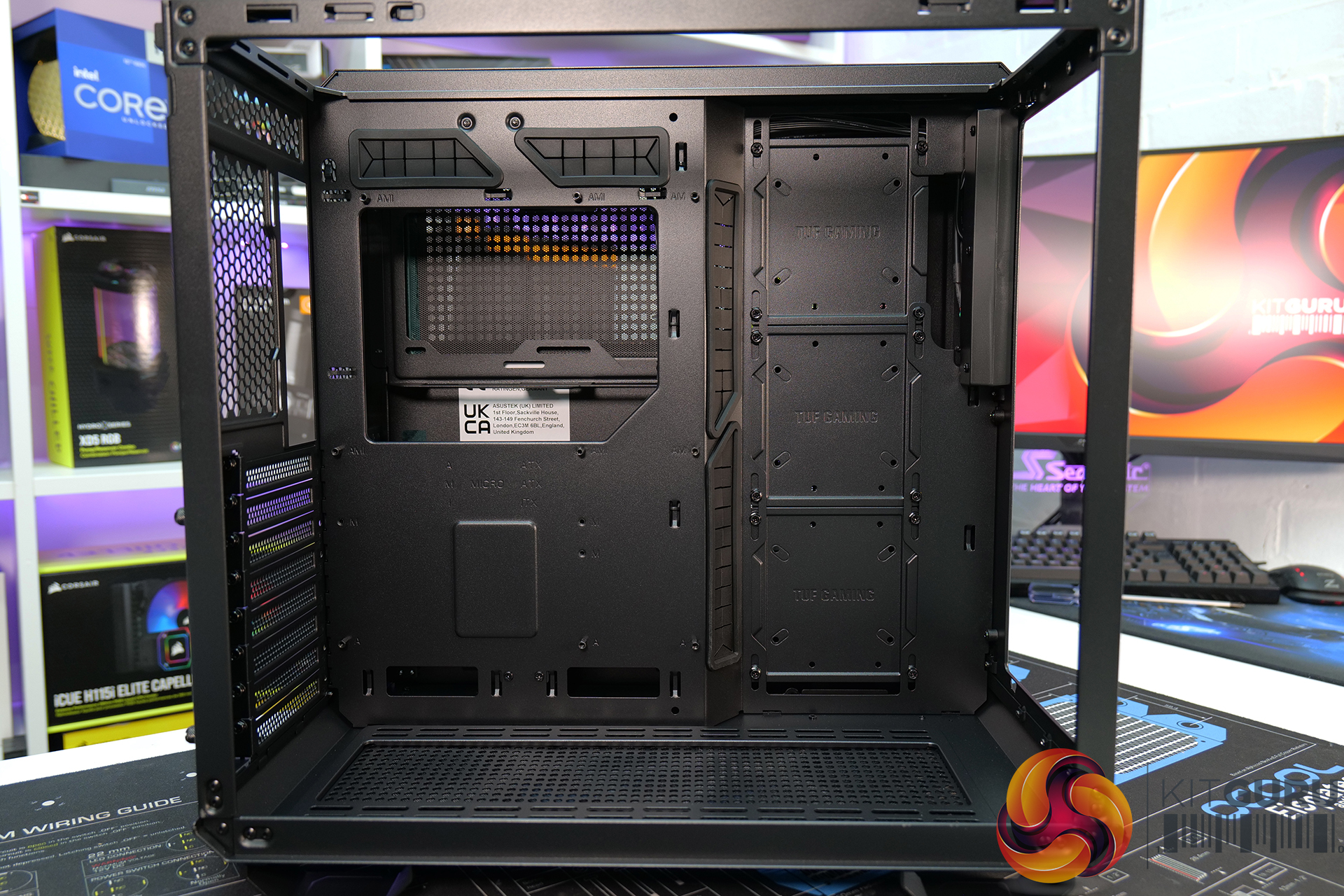

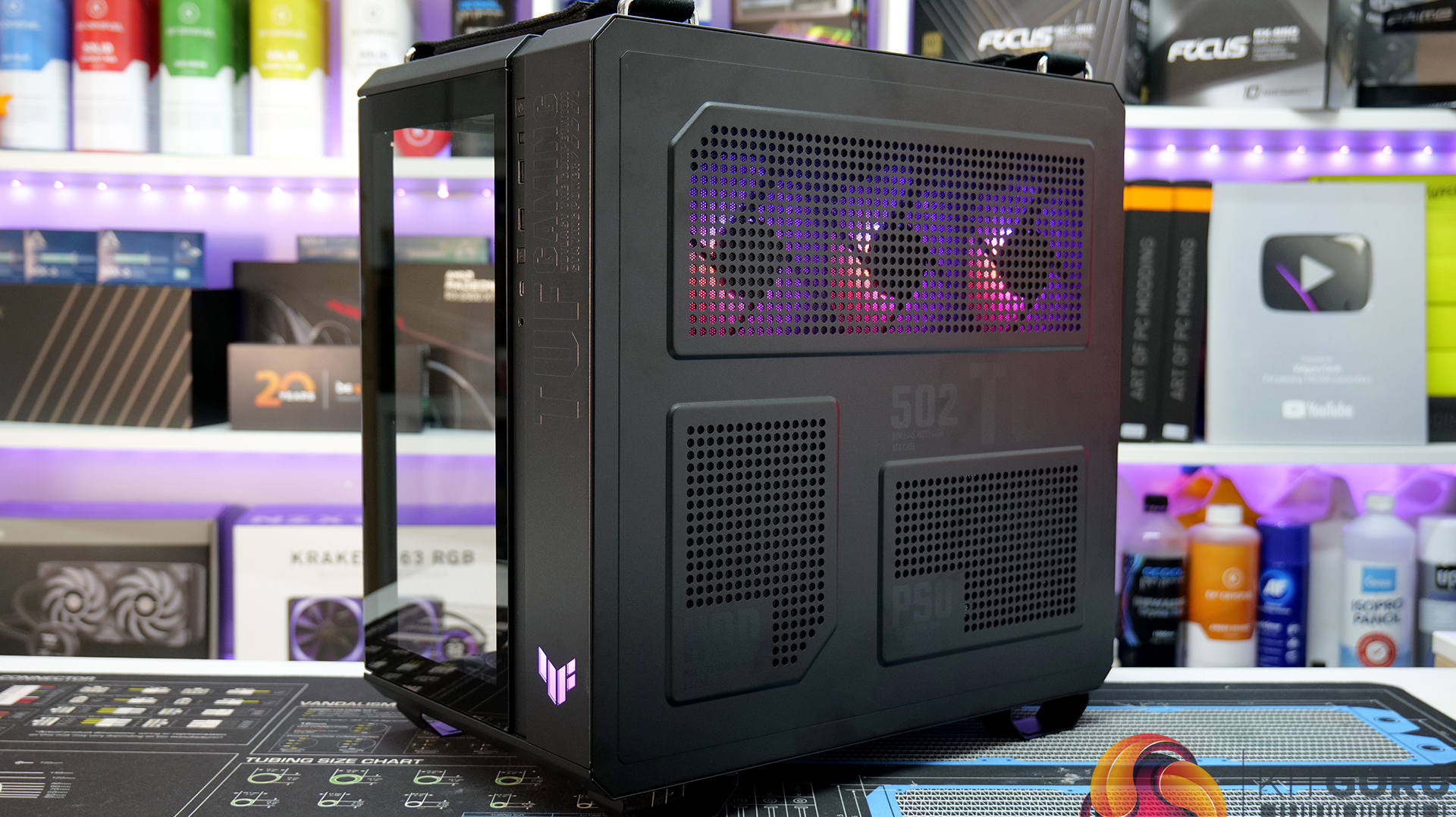

• Chassis – ASUS TUF Gaming GT502
• Fans: ASUS TUF Gaming TF120 / Seasonic MagFlow 120mm
• CPU Cooling – ASUS ROG Ryuo III ARGB 360mm AIO
• Power Supply – Seasonic Prime TX-850 850W 80+ Titanium

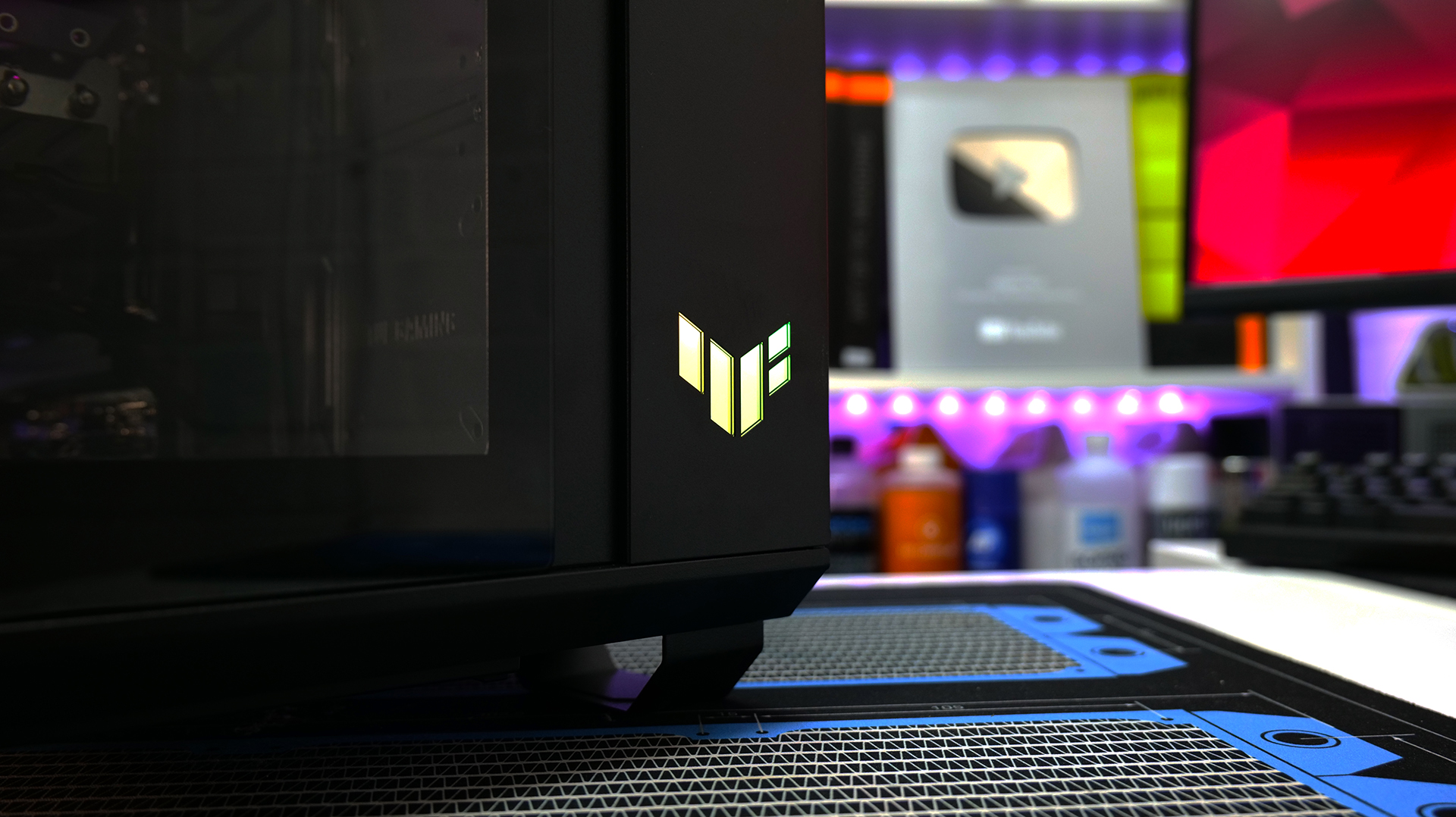

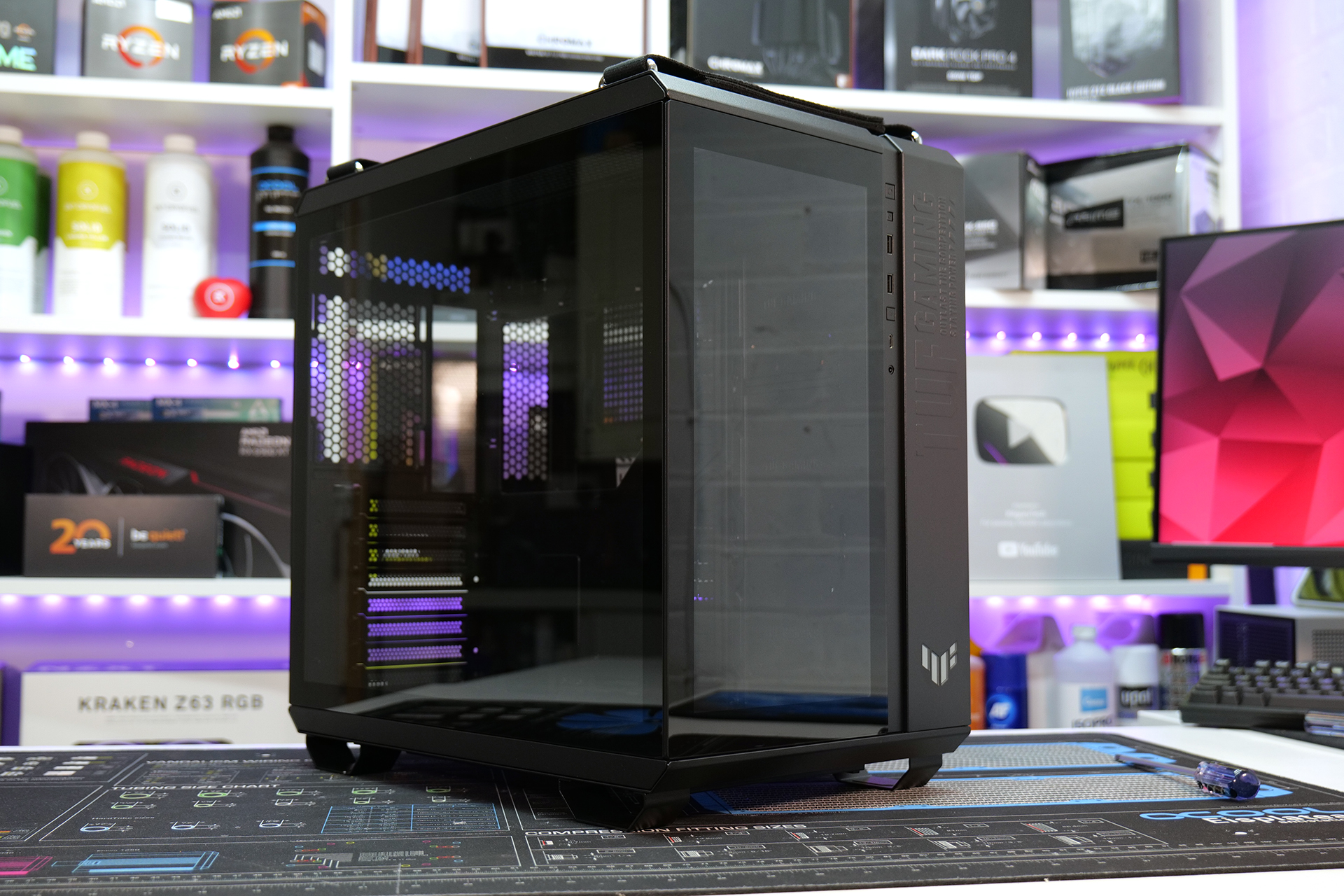

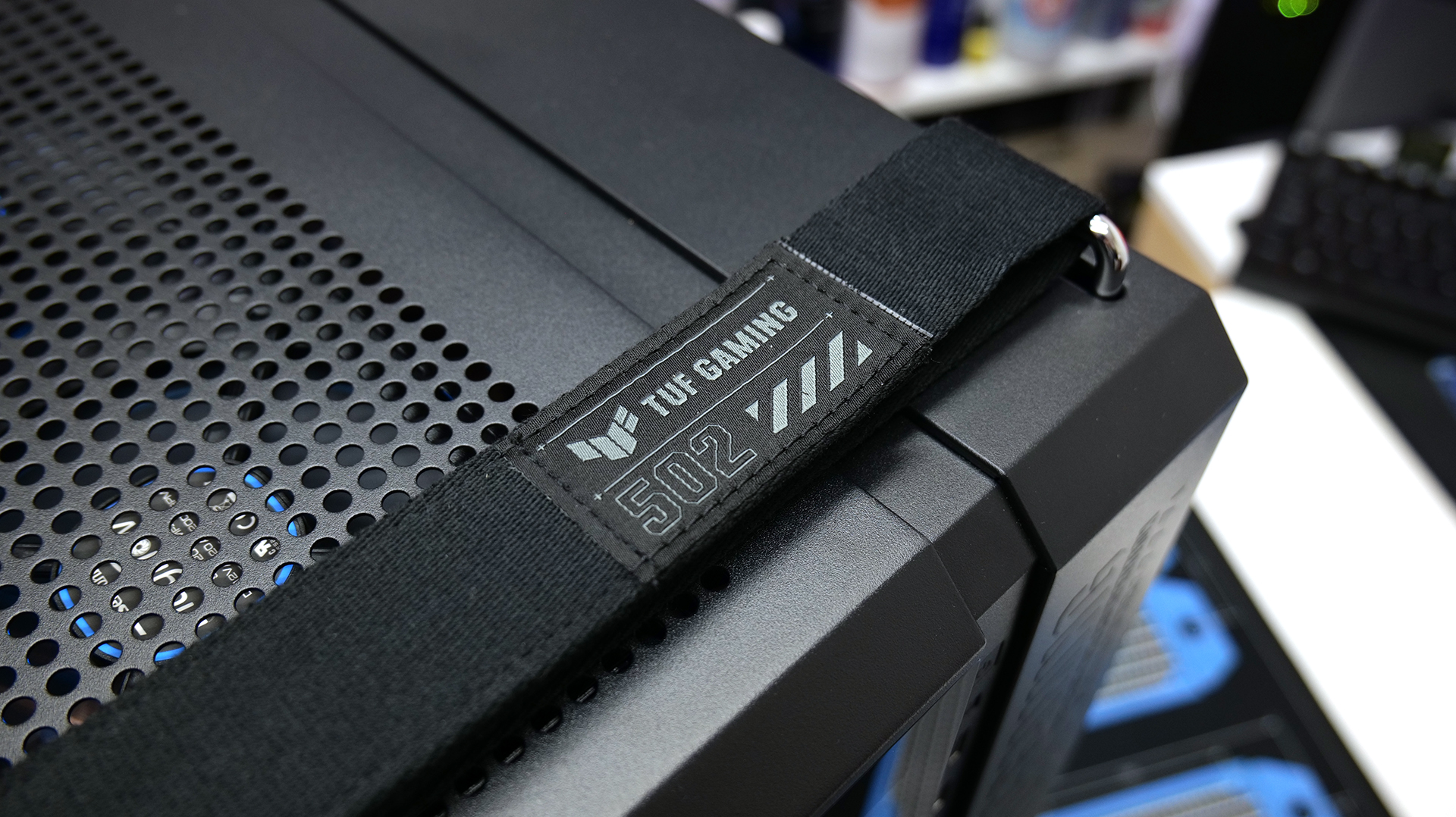

Chassis: ASUS TUF Gaming GT502 – Available to pre-order now from OcUK at £159.99 HERE

Specifications

• Case Size – ATX Mid Tower

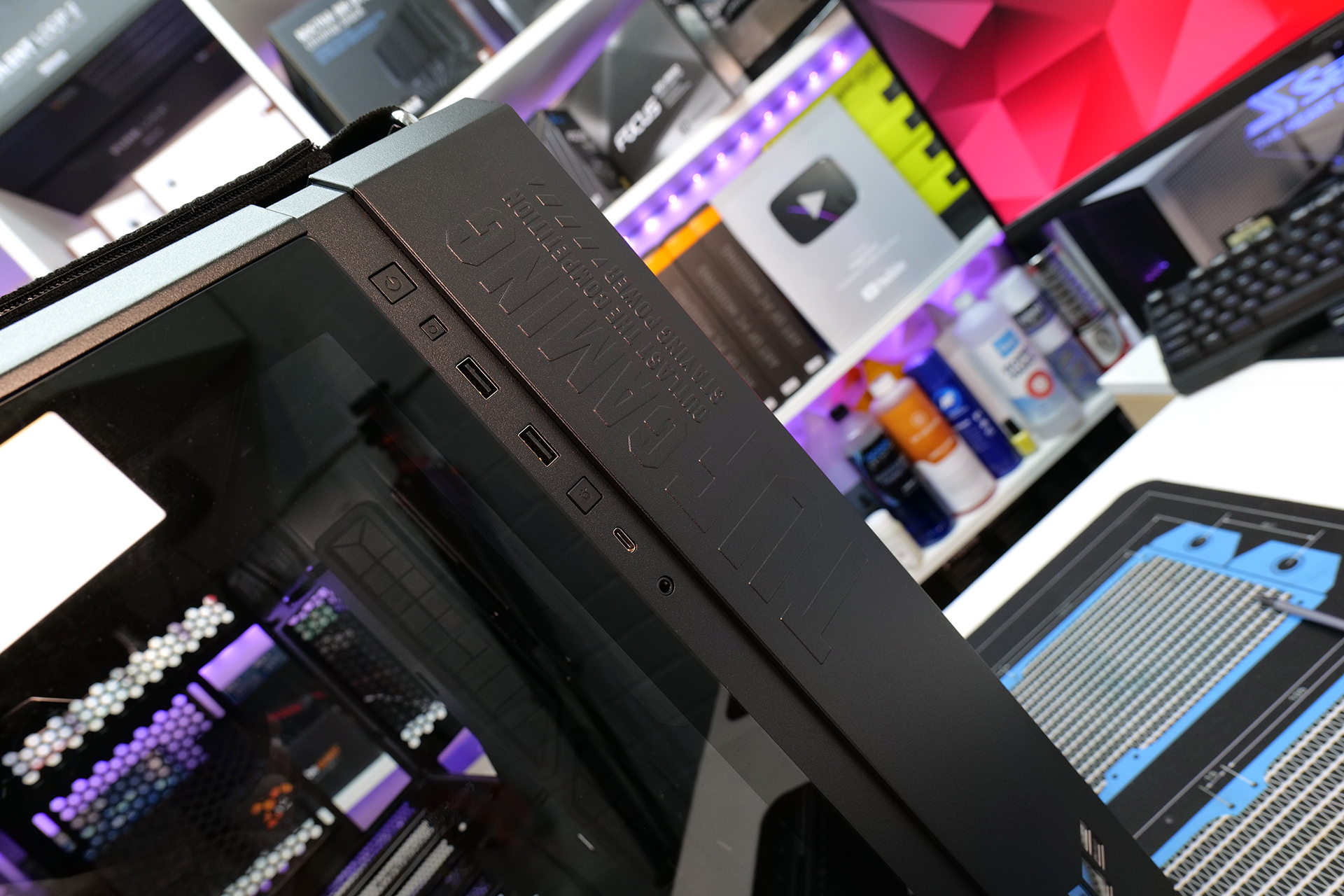

• Front I/O Port – 1 x headphone / Microphone, 2 x USB 3.2 Gen1 , 1 x USB 3.2 Gen2 Type C ,LED Control Button
• Tempered Glass – Front Side, Left Side
• Radiator Support (Top) – 120,140,240,280,360 mm
• Radiator Support (Rear) – 120 mm
• Cooling Support (Top) – 3 x 120 mm or 2 x 140 mm
• Cooling Support (Rear) – 1 x 120 mm
• Maximum CPU Cooler Height – 163 mm
• Maximum GPU Length – 400 mm
• Maximum PSU Length – 200 mm
• Motherboard Support – ATX, Micro-ATX, Mini-ITX

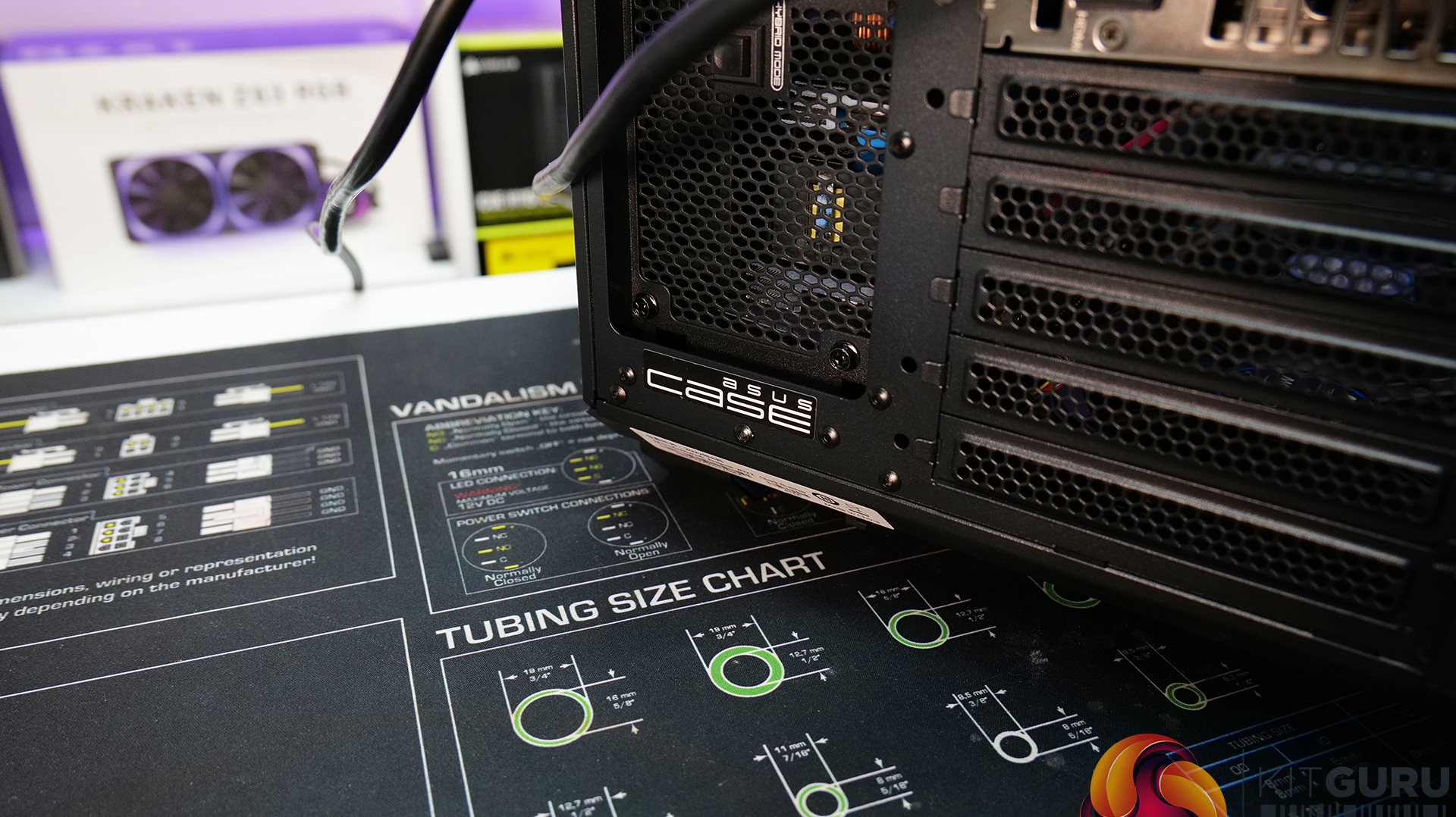

• Expansion Slots – 8 + 3 (additional vertical)
• Drive Bays – 4 x 2.5″/3.5″ Combo Bay
• Removable Dust Filters – Top, Bottom, Right
• Dimensions – 285 x 450 x 446 mm
• Weight – 11Kg

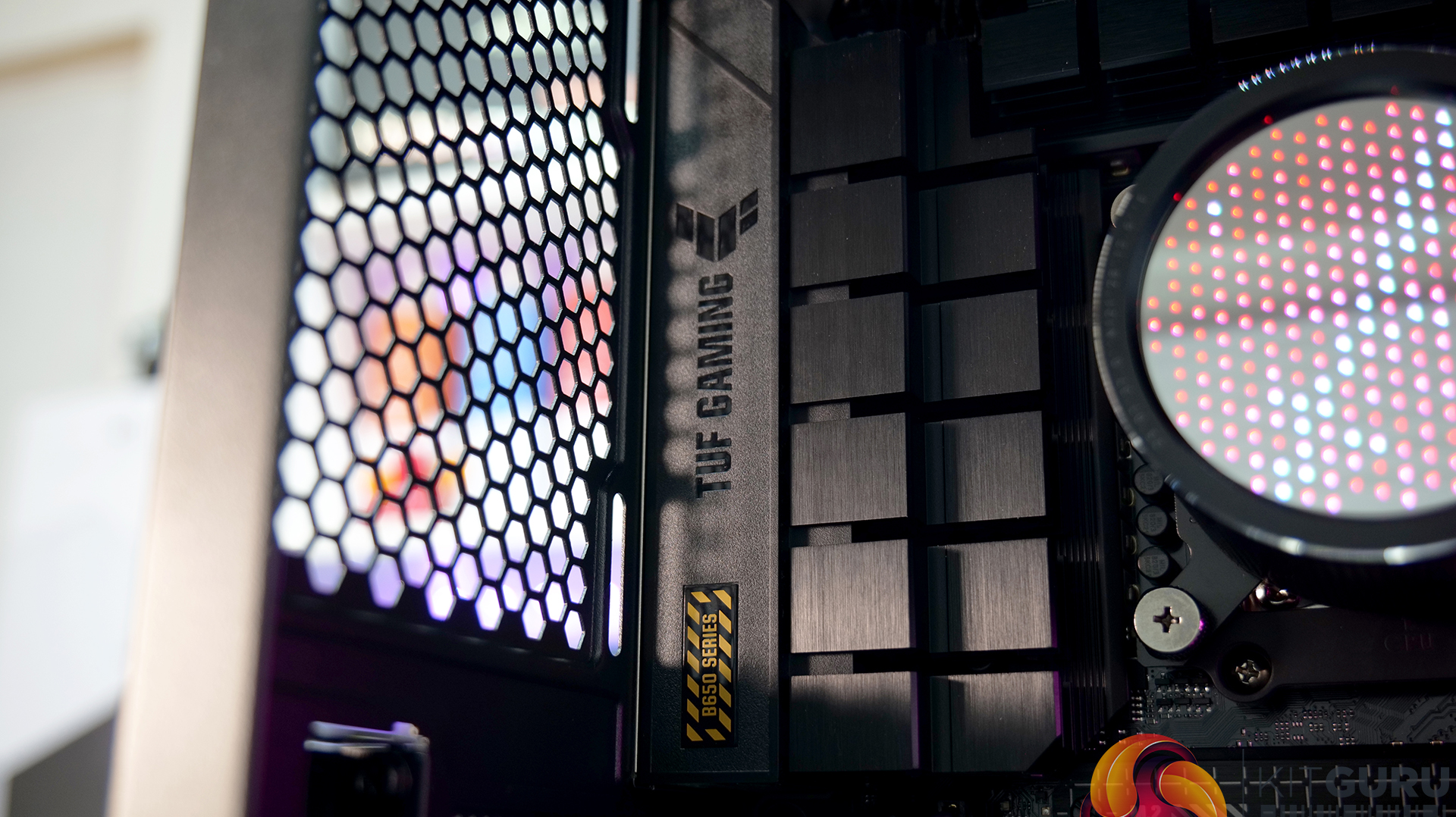

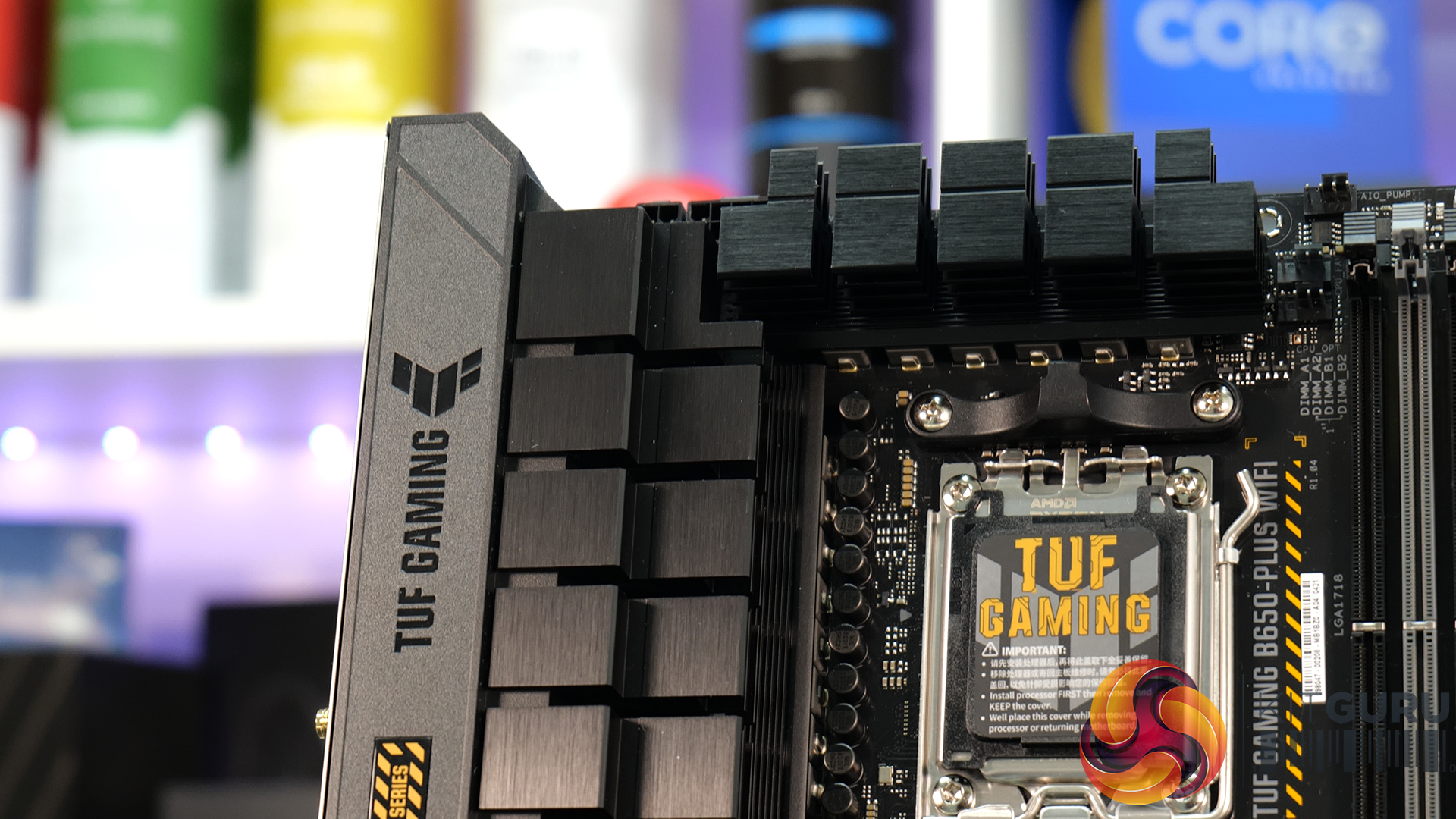

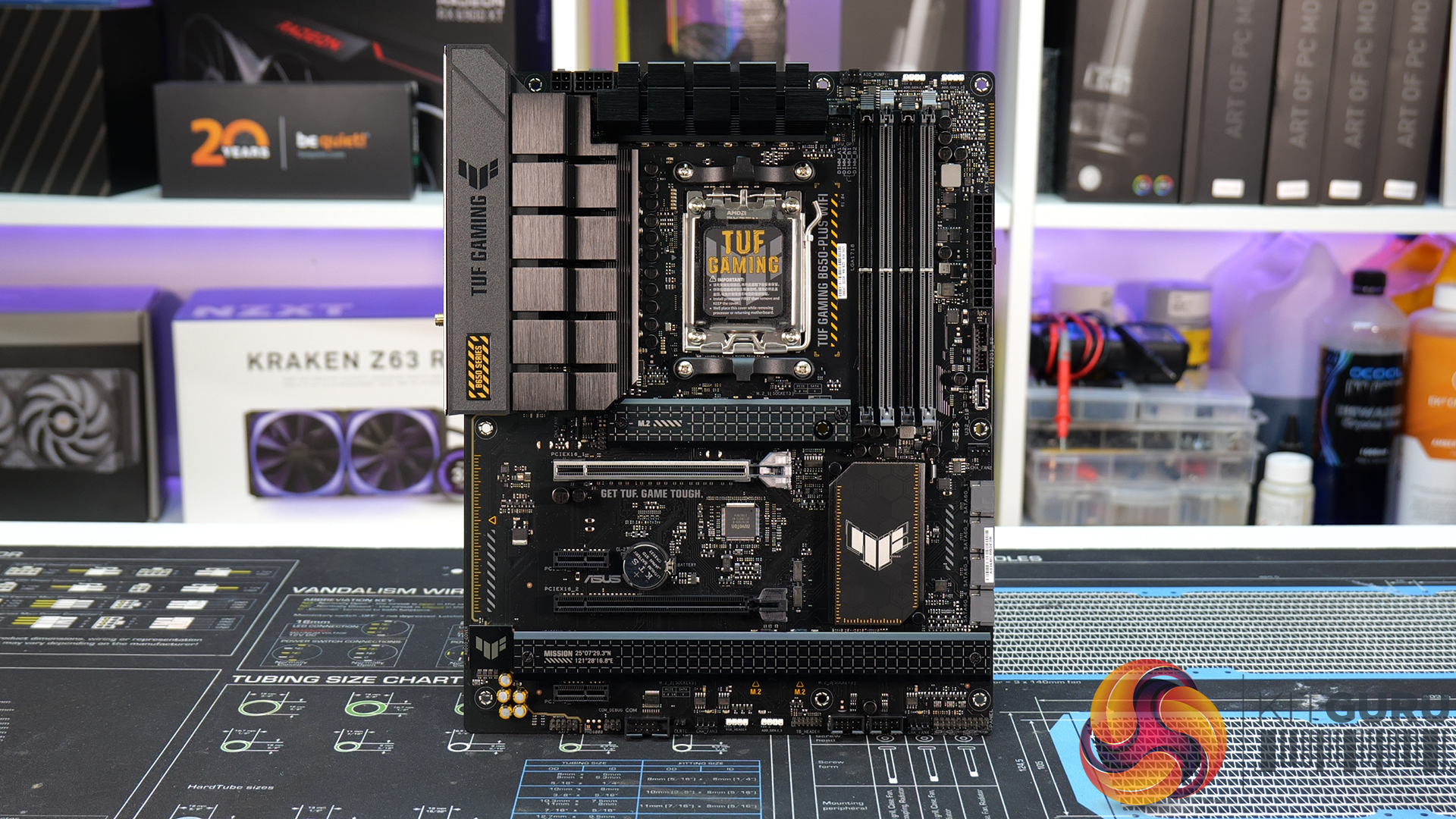

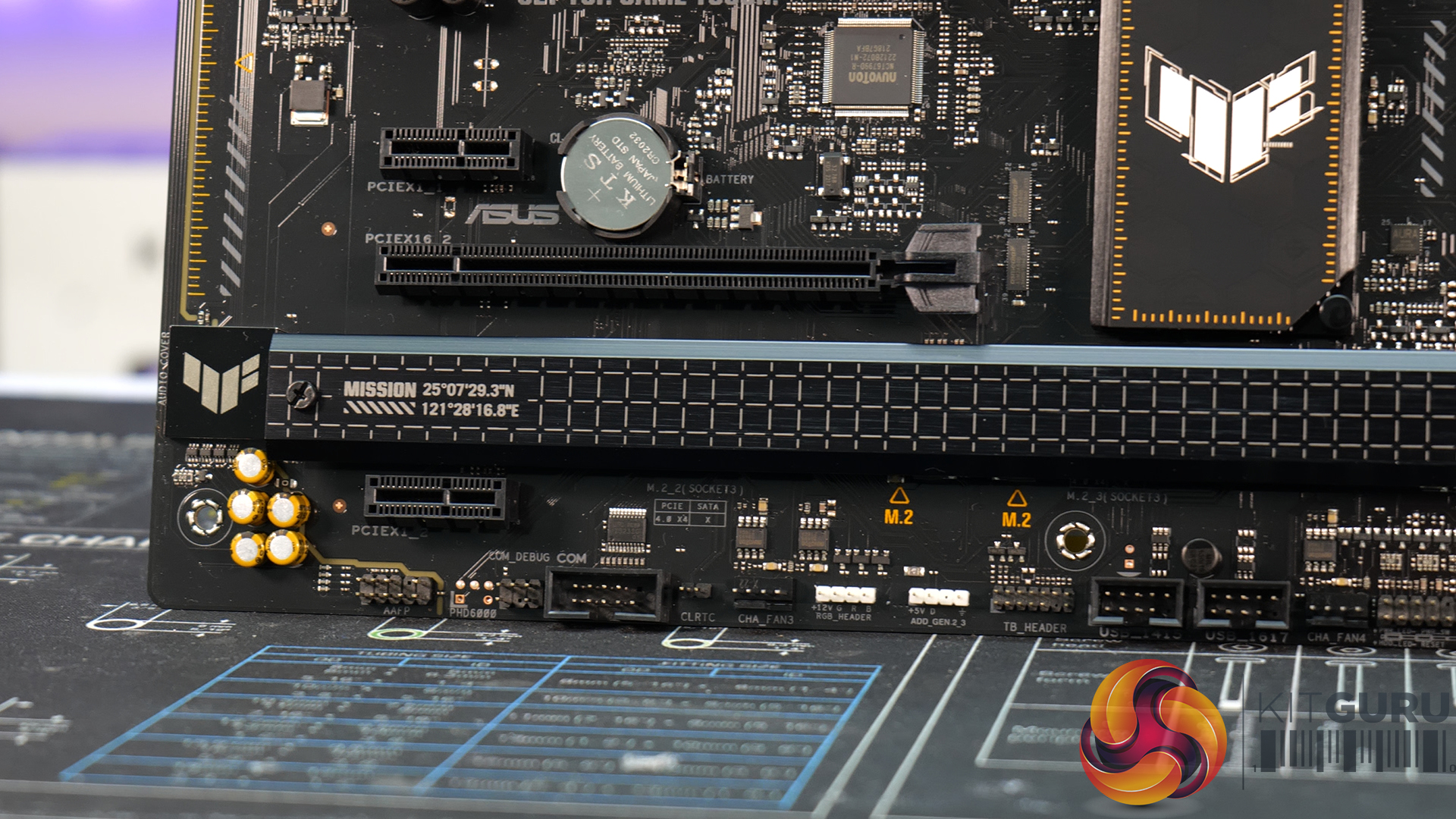

Motherboard: ASUS TUF Gaming B650-Plus WiFi – Available to pre-order now from OcUK at £242.99 HERE

Specifications

• CPU – AMD Socket AM5/AMD Ryzen 7000 Series
• Chipset – AMD B650
• Memory – 4 x DIMM, Max. 128GB, DDR5 Supports AMD (EXPO)
• Graphics – 1 x DisplayPort, 1 x HDMI port
• Expansion Slots – 2 x PCIe 4.0/3.0 x16 slots, 2 x PCIe 4.0/3.0 x1 slots
• Storage – Total support 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Ethernet – 1 x Realtek 2.5Gb Ethernet
• Wireless Connectivity – Wi-Fi 6, Bluetooth v5.2
• Rear USB – (Total 8 ports) ,1 x USB 3.2 Gen 2×2 Type-C port ,3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 2.0 Type-A ports
• Front USB – (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports,2 x USB 2.0 headers (supports additional 4 USB 2.0 ports)
• Audio – Realtek 7.1 Surround Sound High Definition Audio CODEC

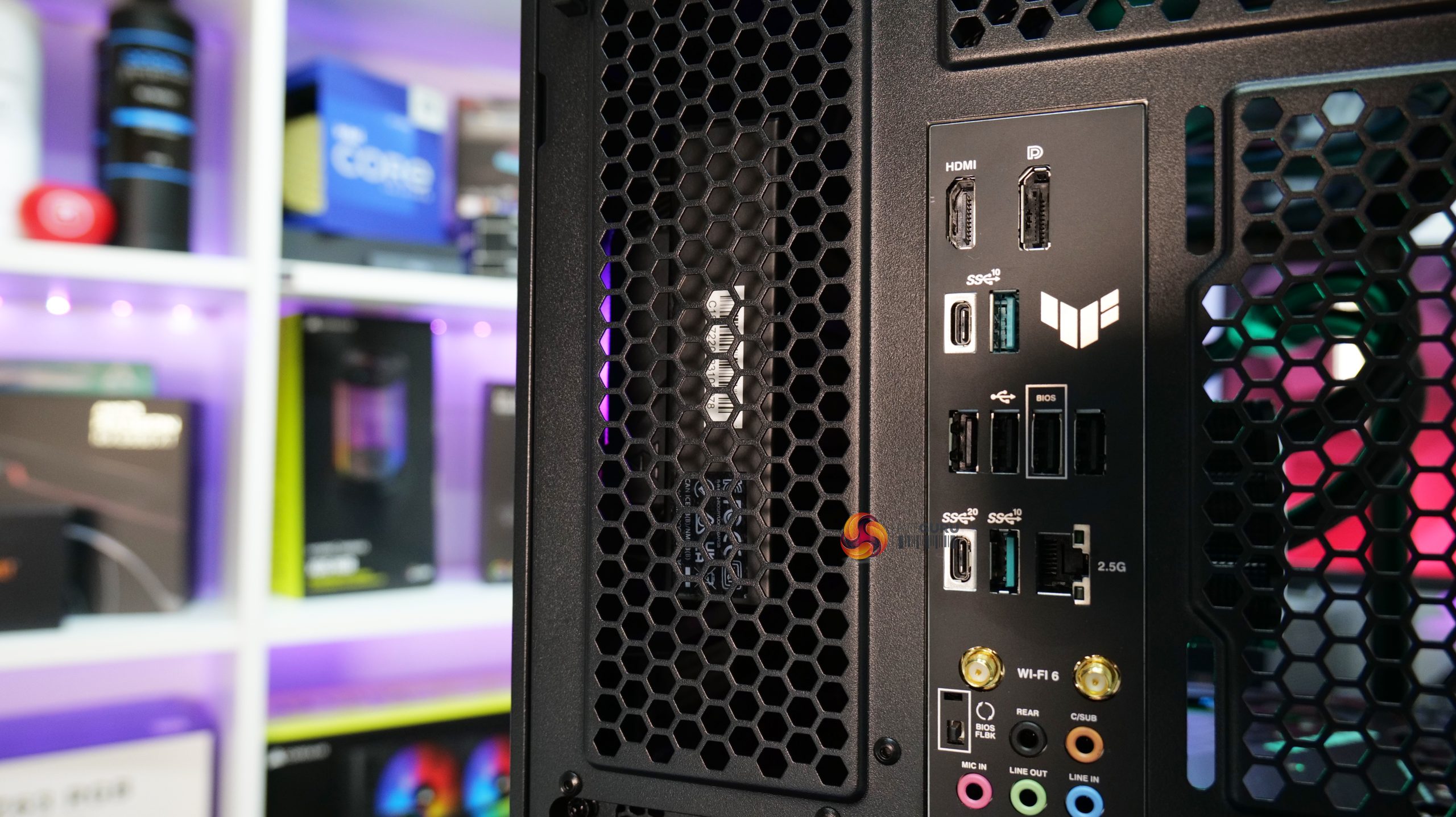

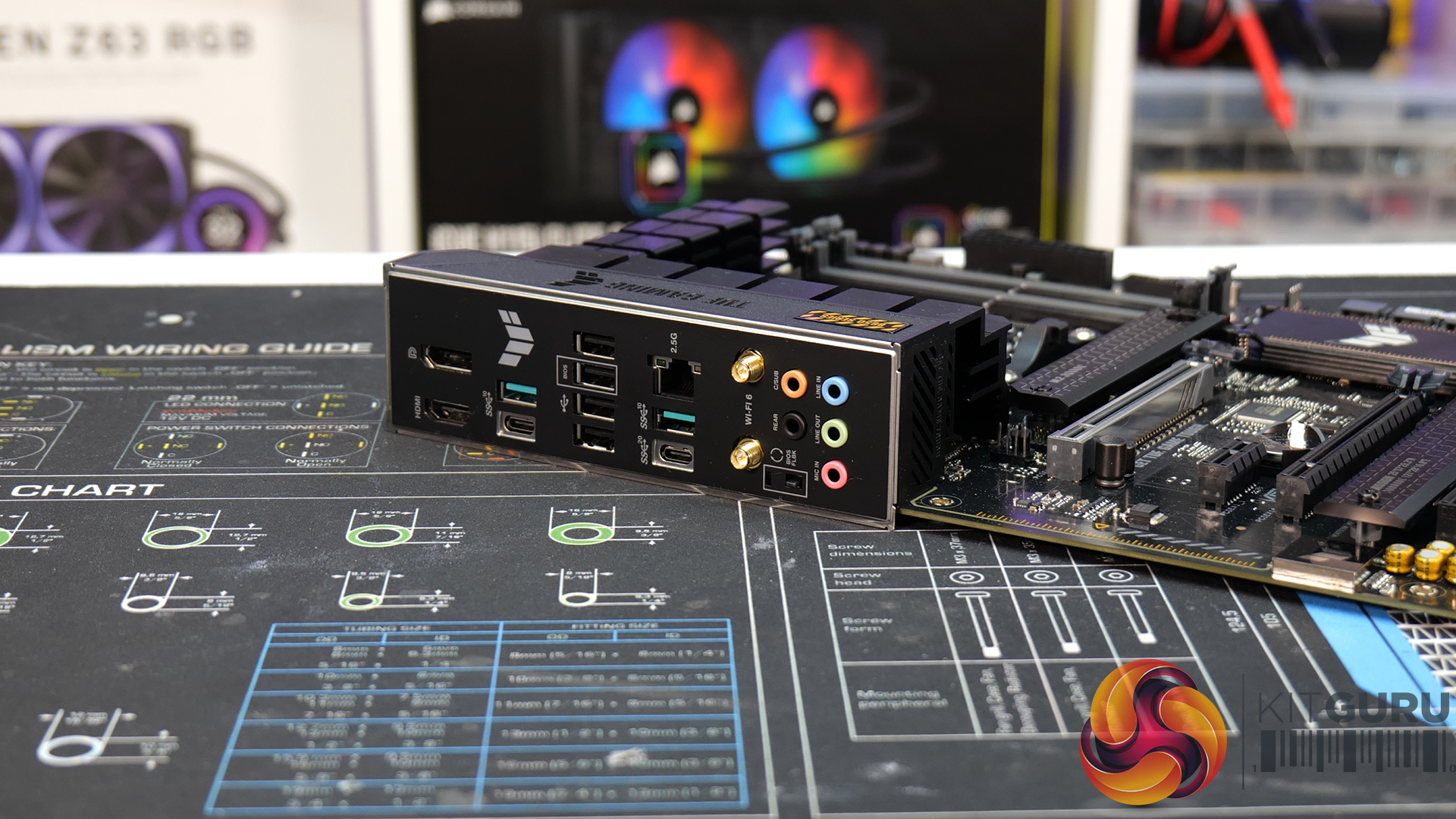

• Rear Panel I/O Ports – 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 1 x USB 3.2 Gen 2×2 Type-C port ,4 x USB 2.0 Type-A ports, 1 x DisplayPort , 1 x HDMI port ,1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port ,5 x Audio jacks ,1 x BIOS FlashBack button

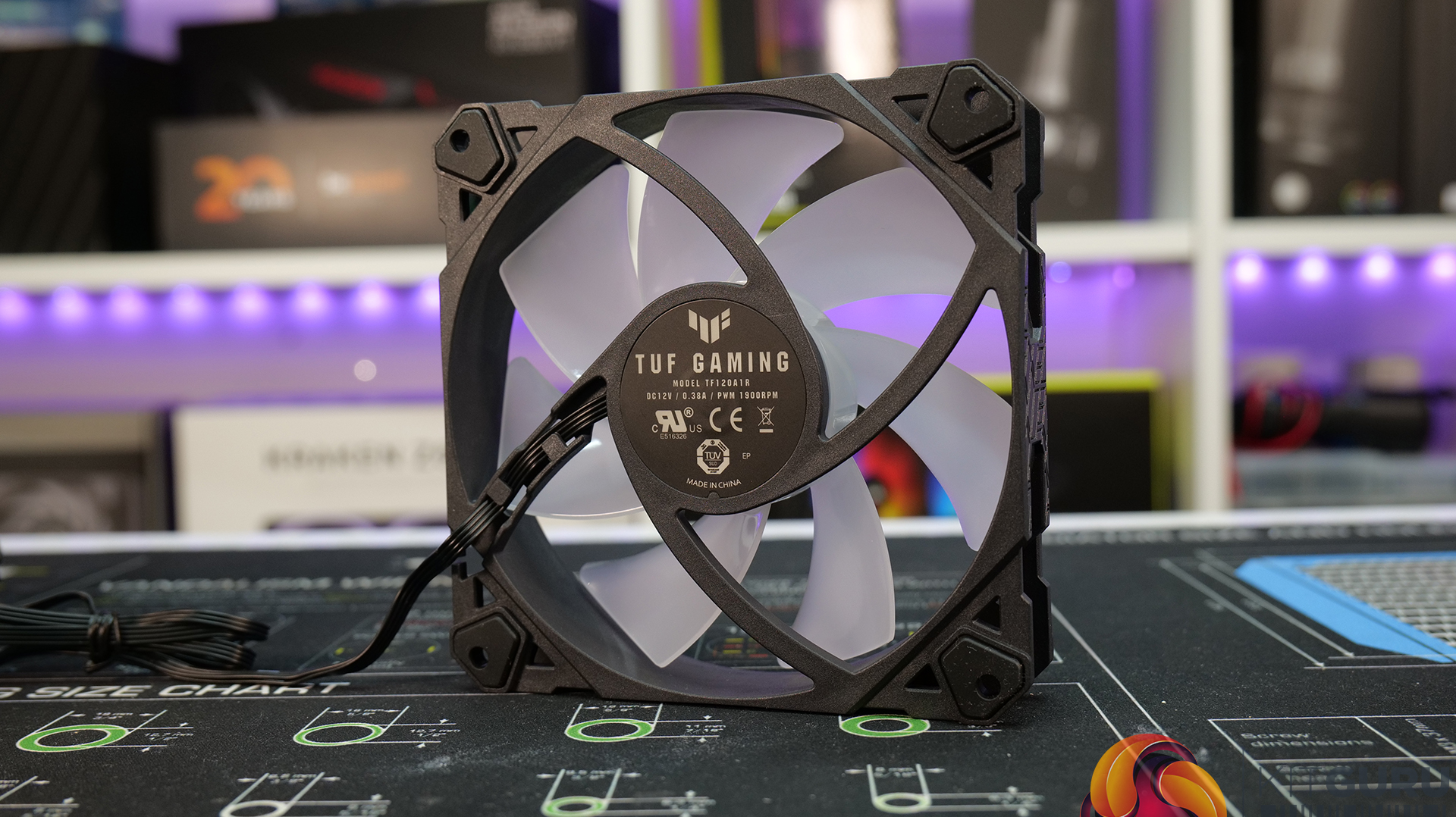

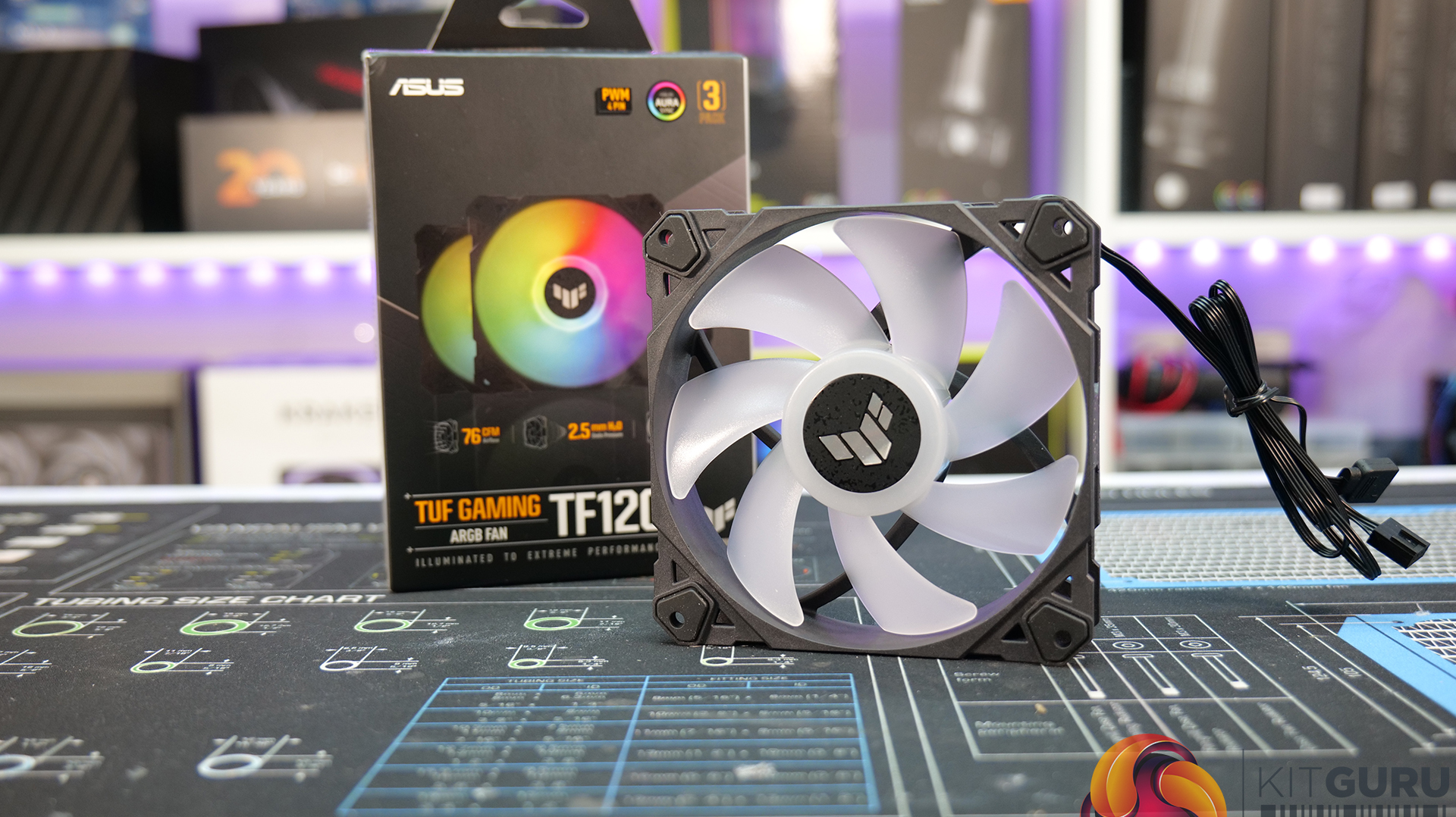

Fans: ASUS TUF Gaming TF120 – ASUS USA price $49.99 HERE

Features

• Available in black and white.
• Advanced fluid dynamic bearing rated for up to 250,000 hours of operation.
• PWM Speed range of 250 -1900 RPM.
• Max airflow rate 76 CFM.
• Max Noise level 29 dBA.
• ARGB Double layer LED array.
• ARGB controller with up to 4 3-pin 5v connections.

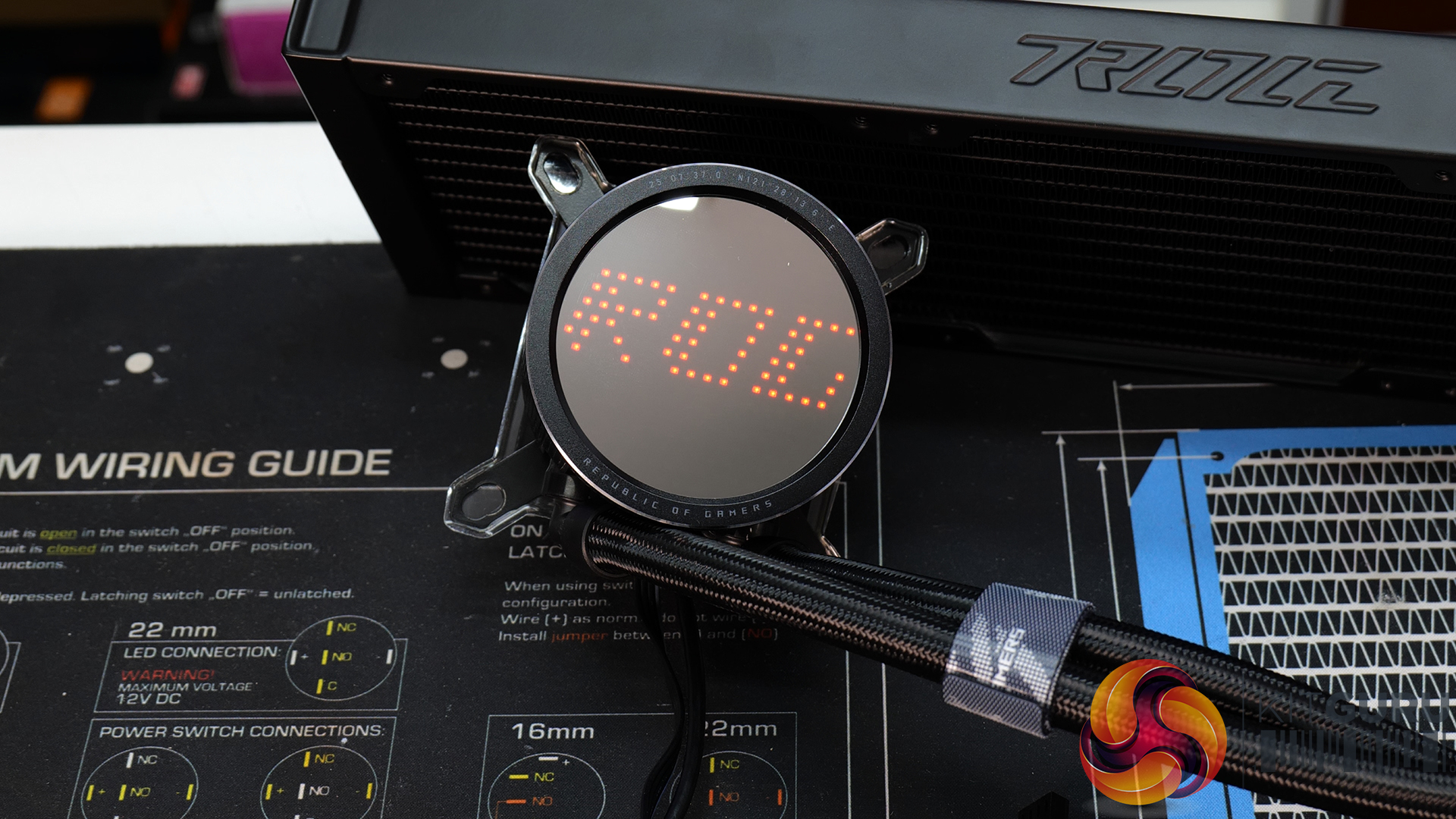

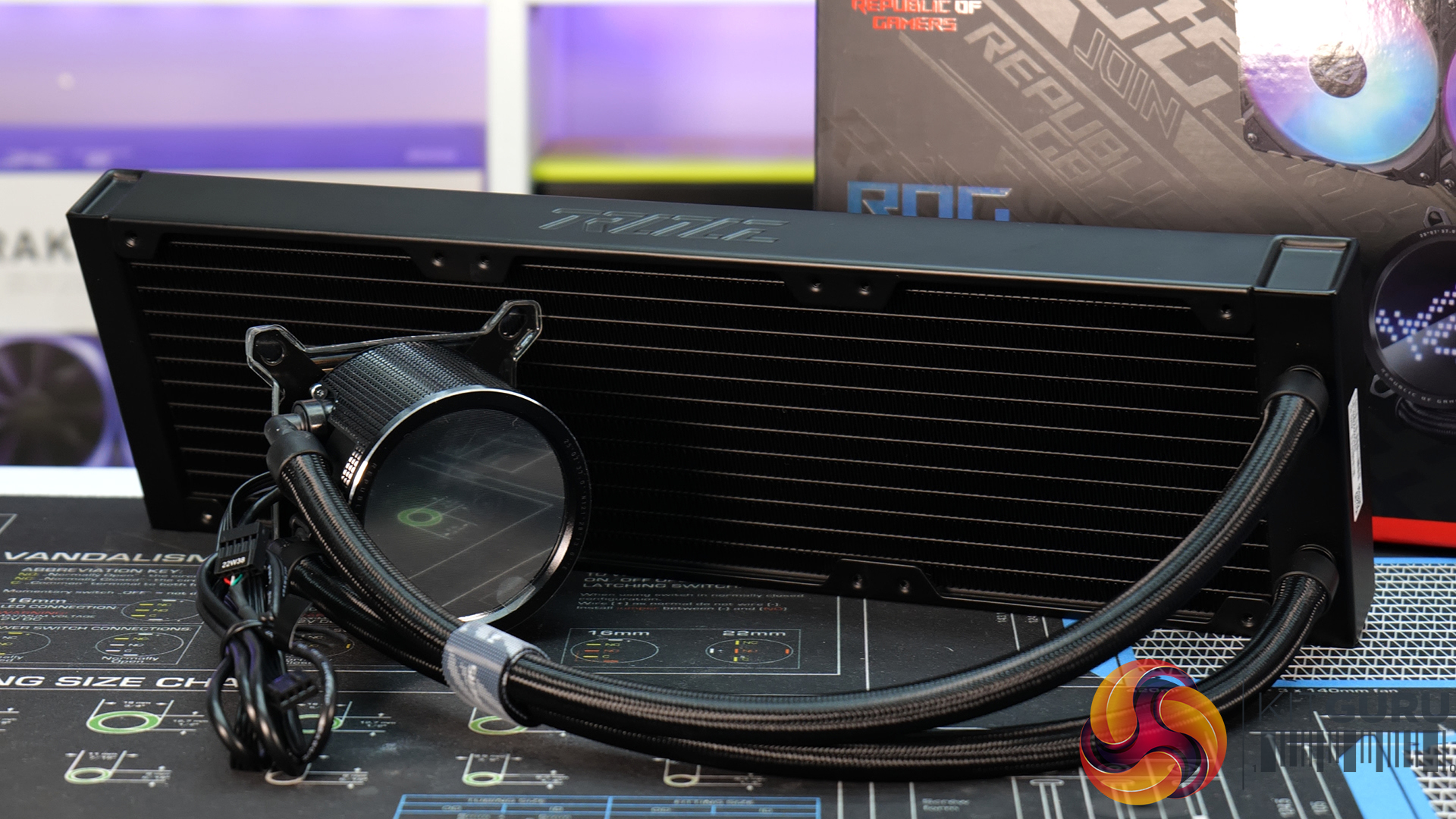

AIO CPU Cooler: ASUS ROG RYUO III 360 ARGB – Available to purchase from OcUK priced at £299 HERE

Features

• Latest 8th-generation Asetek pump with a three-phase motor that spins up to 2600 RPM.
• 27mm thick aluminium radiator with a black powder-coated finish.

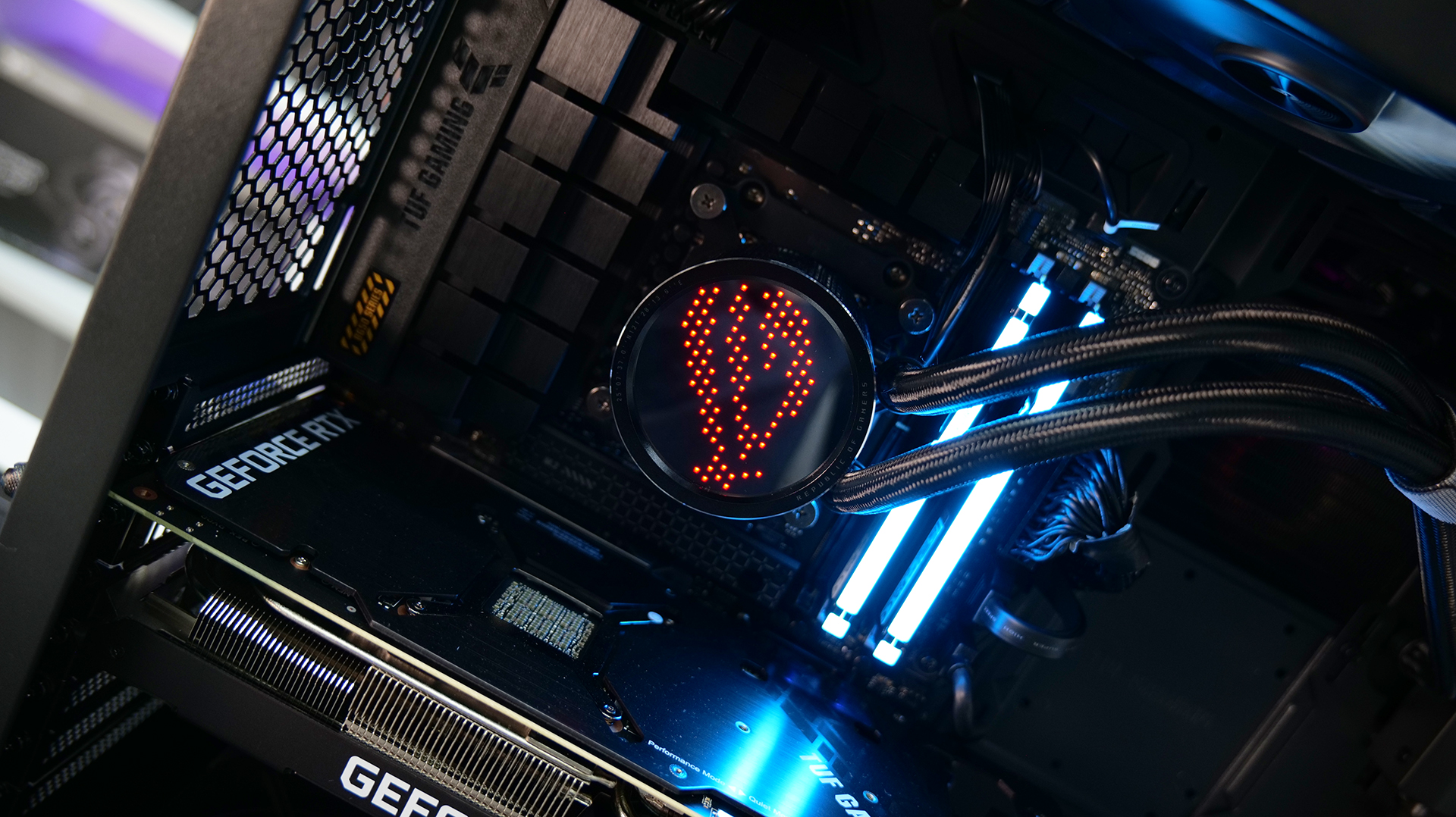

• Mini-led array that can display ROG-exclusive content, system stats and custom animations.

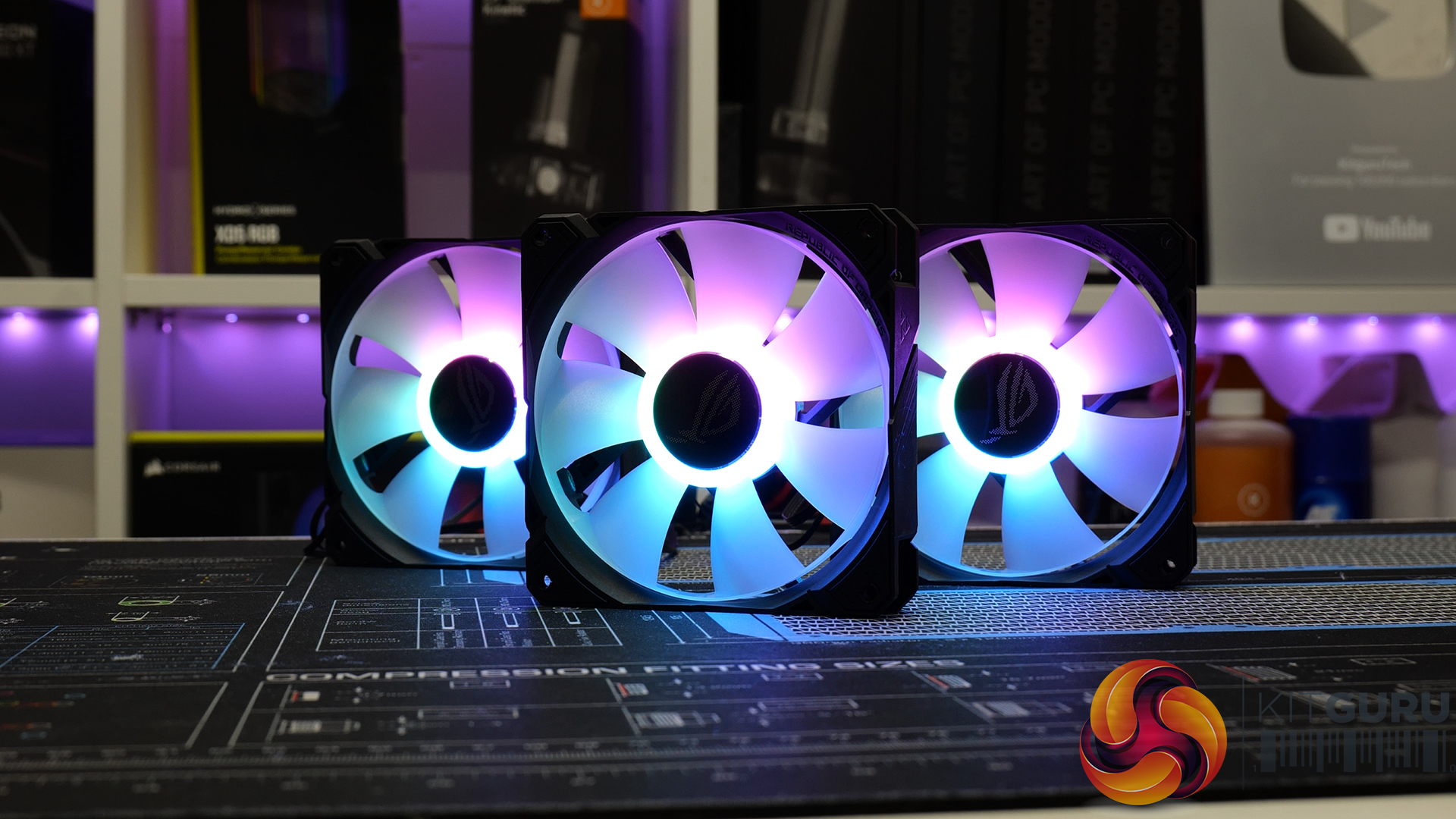

• ASUS ROG ARGB Fans, PWM 300- 2200 RPM, high static pressure, 36.45 dBA.
• Compatible with all desktop platforms inc LGA 1700 / AM5 etc.

KitGuru says: We hope you enjoyed watching this ASUS TUF Gaming system build featuring the new GT502 chassis. Now you have seen the parts, will any of you guys be picking some up for your own builds?
