WD Blue SN580 1TB SSD Review

1. Introduction2. WD Blue SN580 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Sustained Random Read 9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark15. Final Fantasy XIV Endwalker Official Benchmark16. Drive Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

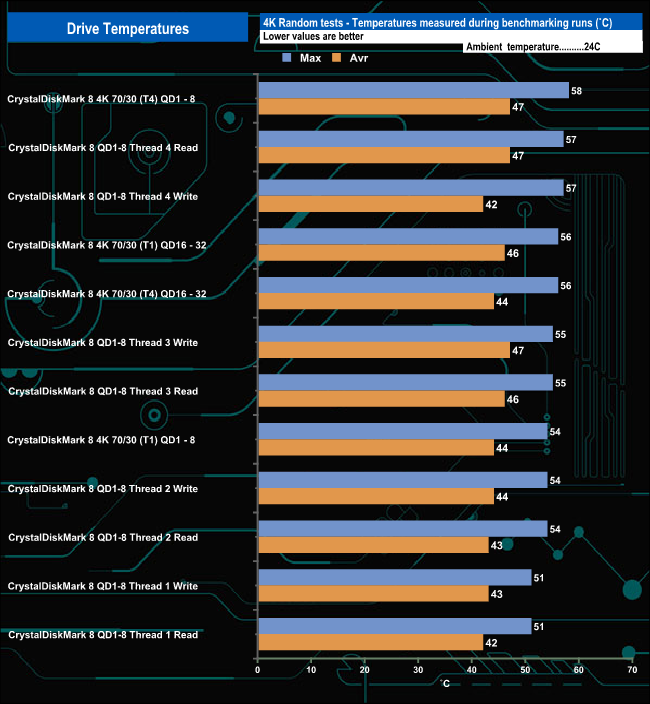

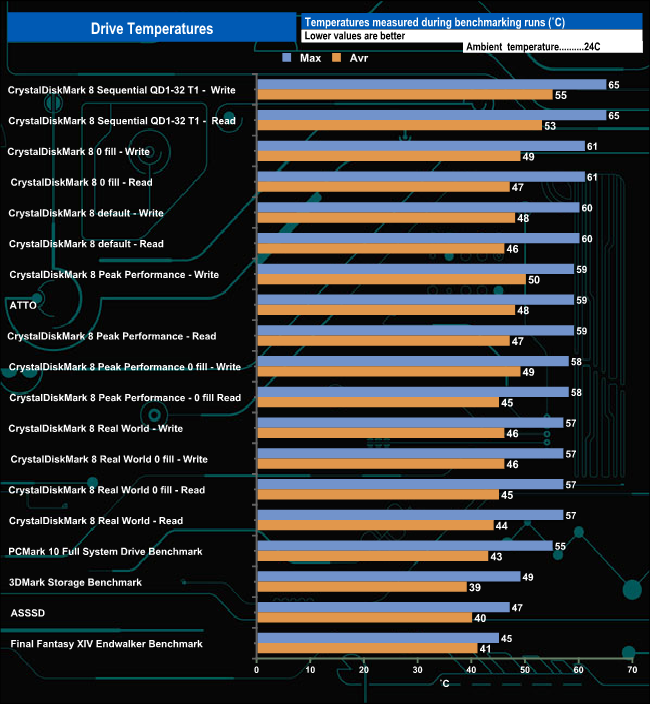

We took note of the drive’s temperature during some of our benchmarking runs.

We took note of the drive’s temperature during some of our benchmarking runs. The WD Blue SN580 doesn’t have a heatsink, but as there are so few components on the PCB, there is plenty of room for air circulation. The drive did get particularly hot during some of the testing but to be fair on the drive it was being pushed very hard by some of the benchmarks, far harder than it would see in everyday usage, so these figures are very much worse case scenario.
