Read Throughput

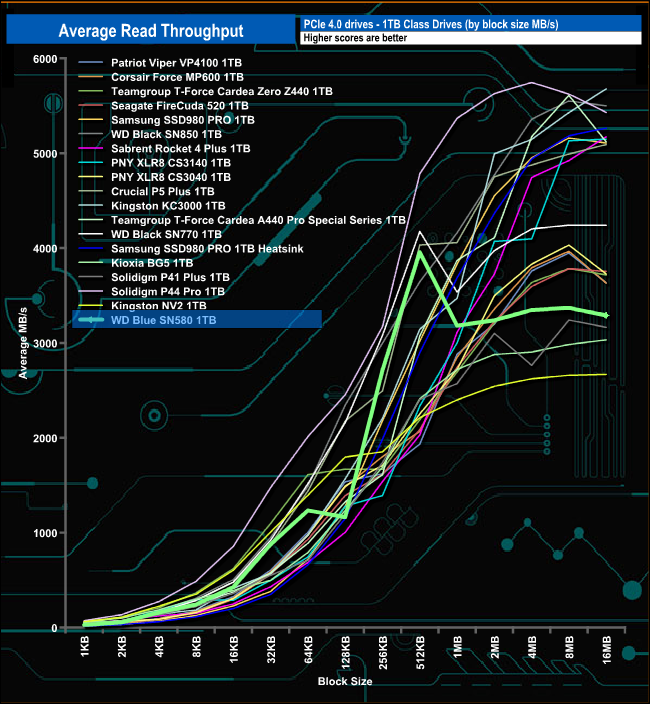

In the read throughput test the drive peaks at the 512KB block size at 3,956.30MB/s before ending the test run on 3,289.57. Both of these scores are some way behind the official maximum of 4,150MB/s.

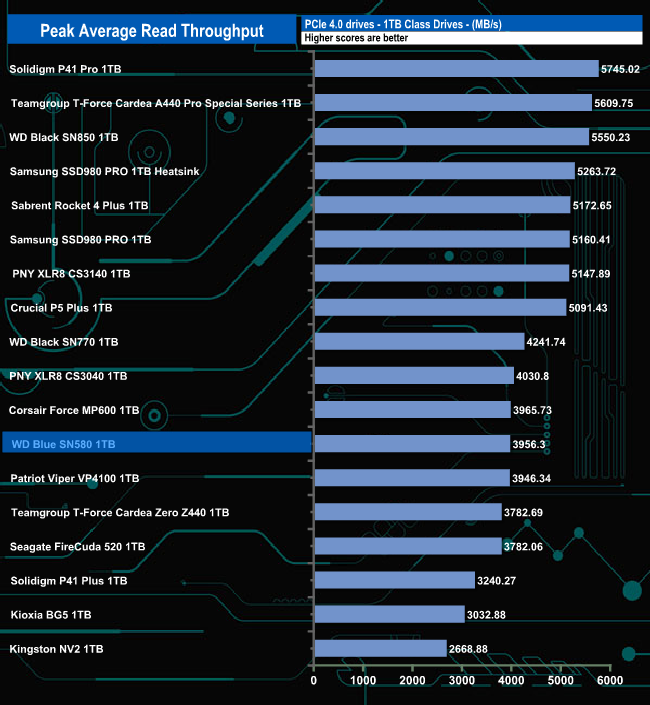

The peak read result of 3,956MB/s sees the WD Blue SN580 in the bottom half of the results chart.

Random Write

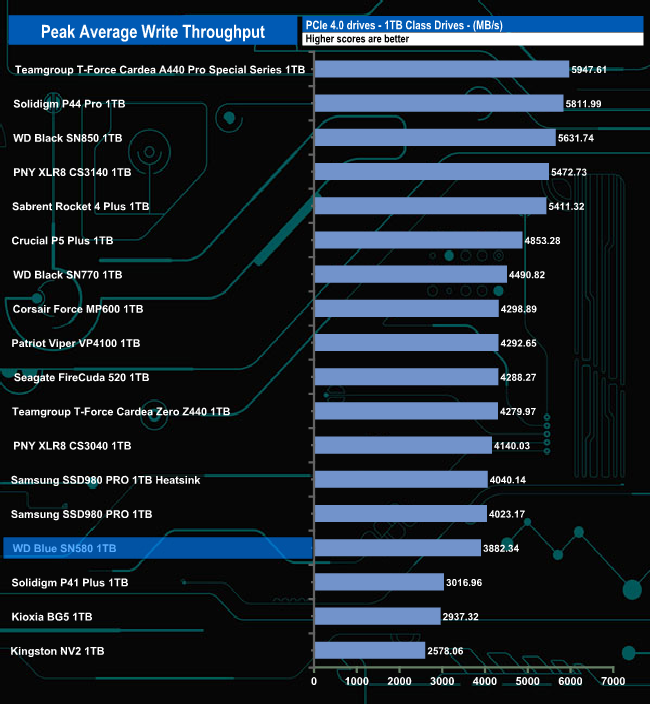

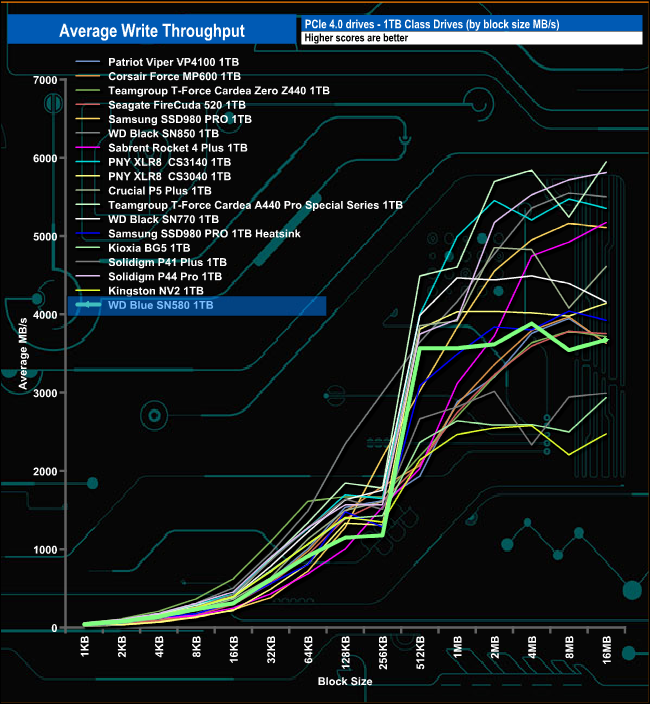

In the write throughput test the drive peaks at 3,882.34MB/s at the 4MB block mark before falling away to finish the test run at 3,673.35MB/s,

As with the read throughput test, the write test result sees the WD Blue SN580 in the bottom half of the results chart.
