We test the 4K random write performance of a drive through a range of queue depths. The setup for the tests is listed below.

4K Random Write

Transfer Request Size: 4KB, Outstanding I/O: 1-32.

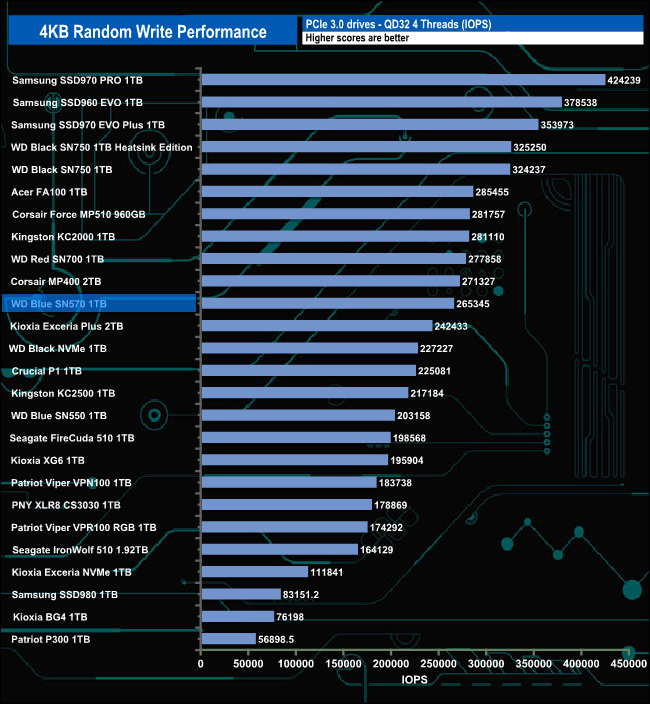

As with the random read testing when it came to random writes our 4-threaded test results were nowhere near the official maximum figure of 450,000 IOPS, the best we saw was 265,743 IOPS at QD16.

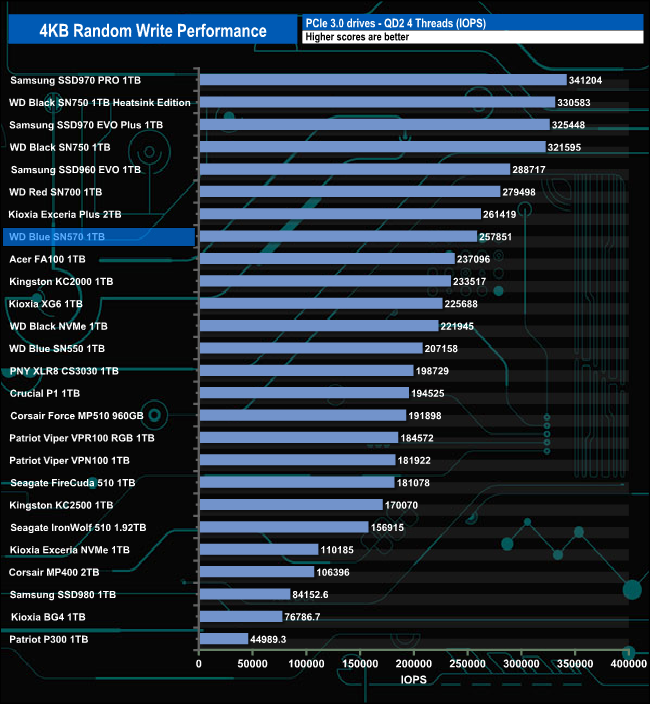

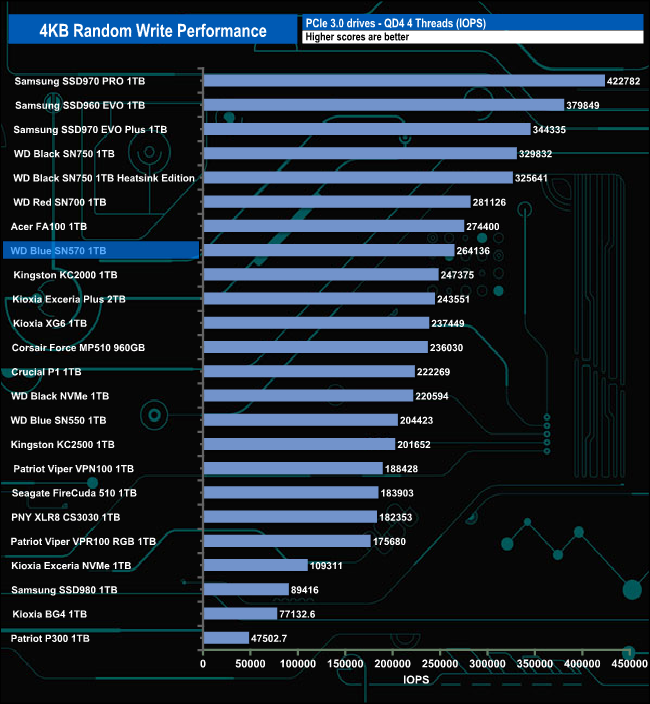

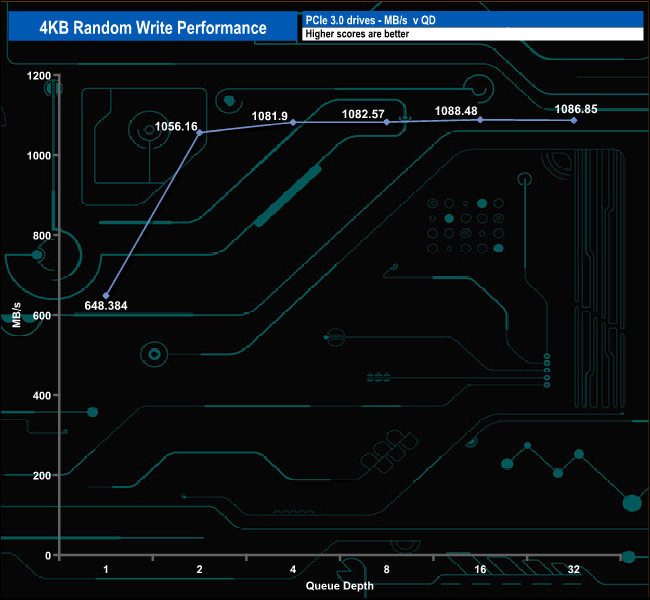

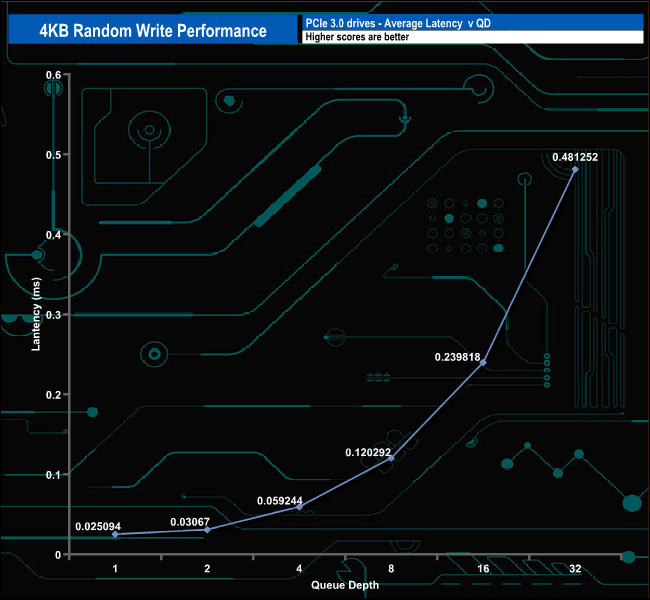

4K Random Write v QD Performance compared.

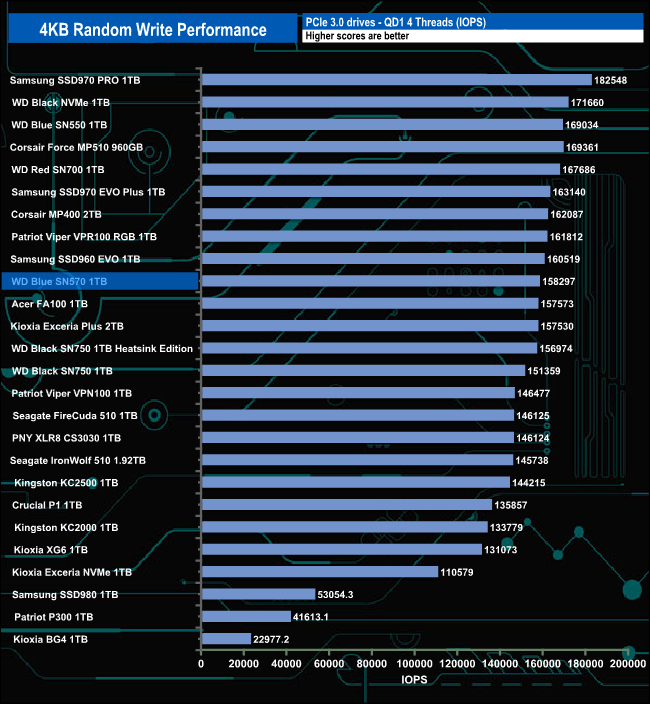

The write performance of the drive is pretty consistent though as the drive sits mid-table throughout the tested queue depths. At all the tested queue depths apart from QD1, the Blue SN570 is faster than the previous Blue SN550.
