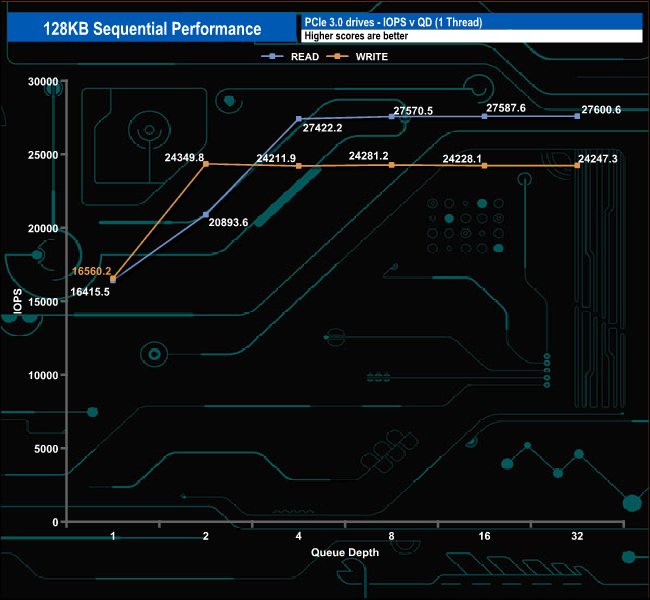

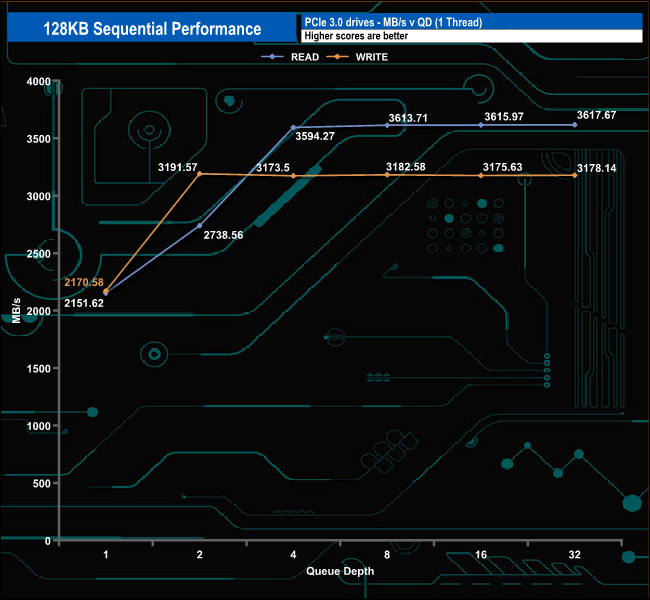

Using our own Sequential tests we could confirm the official figures of 3,500MB/s for reads and 3,000MB/s for writes with a read result of 3,617MB/s with writes at 3,178.14MB/s.

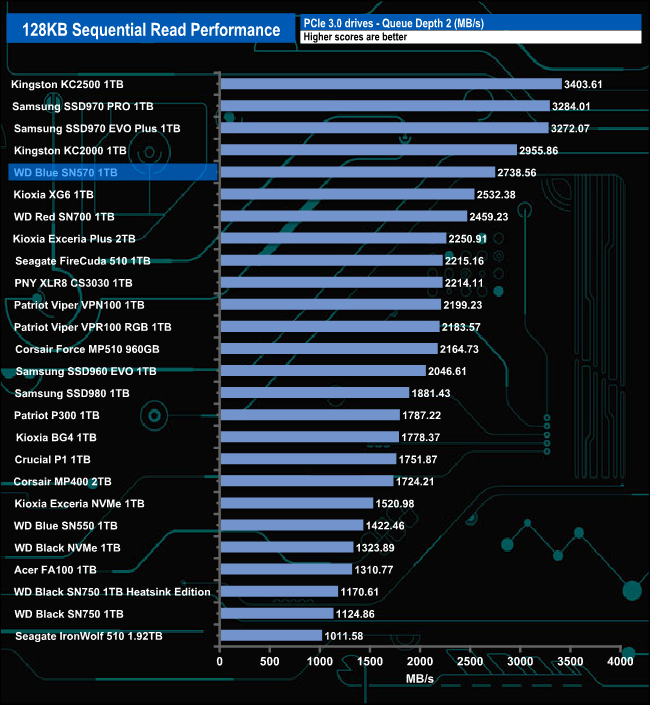

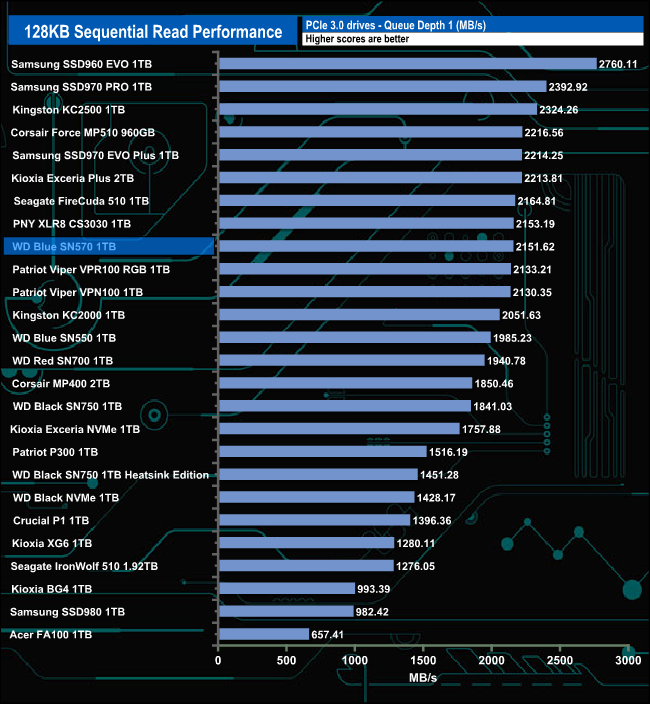

128KB Sequential Read Performance compared.

The drive's best performance comes at the QD4 where it tops the Sequential read performance charts with a test result of 3,594.26MB/s and is only just behind Samsung's SSD970 EVO Plus at QD32.

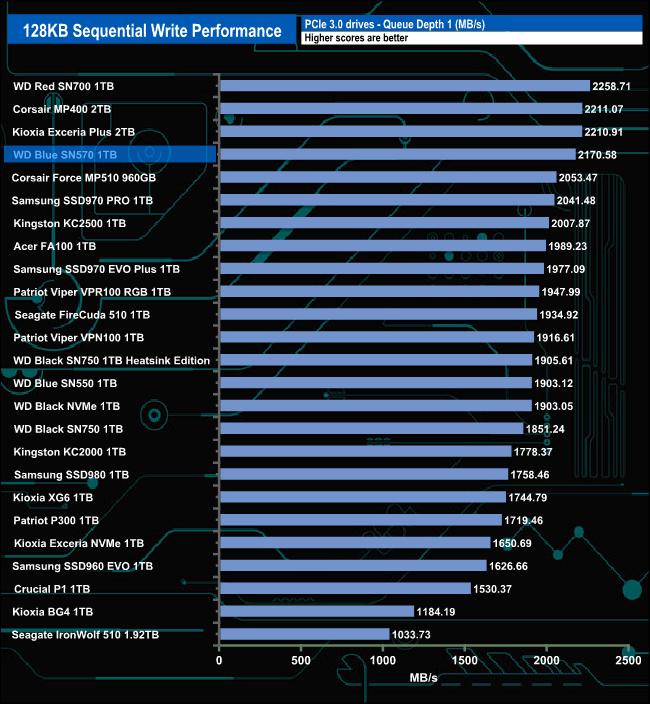

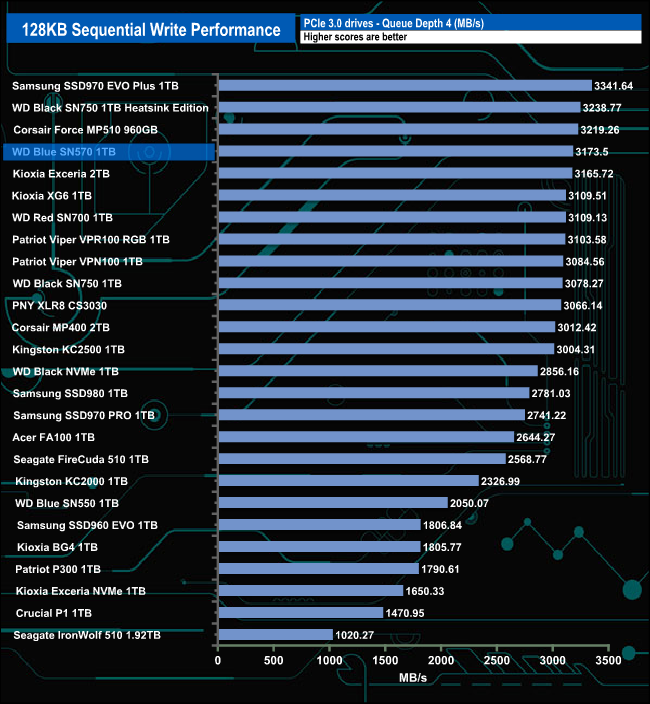

128KB Sequential Write Performance compared.

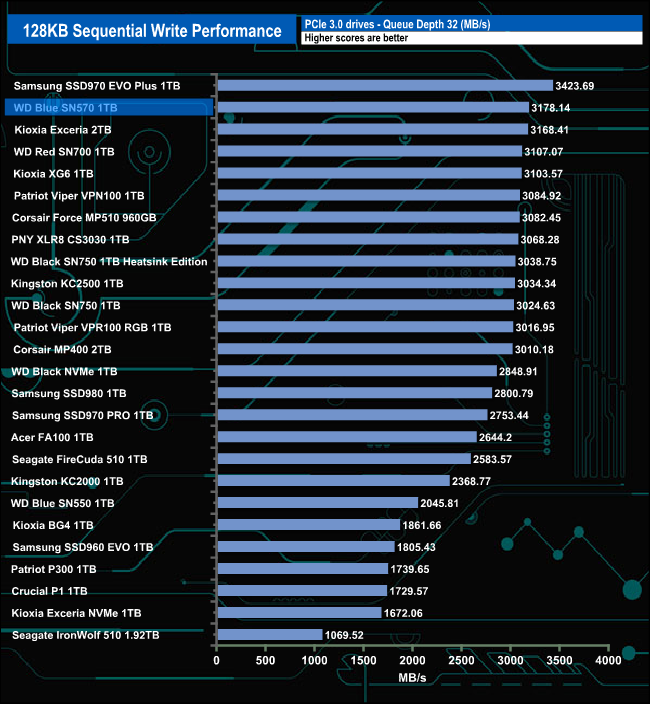

The WD Blue SN570 displays a good degree of consistency when it comes to Sequential writes with the best performance compared to the drives around it coming at QD32 with a test result figure of 3,178.14MB/s.
