The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

We are using version 4.0 for our NVMe disk tests.

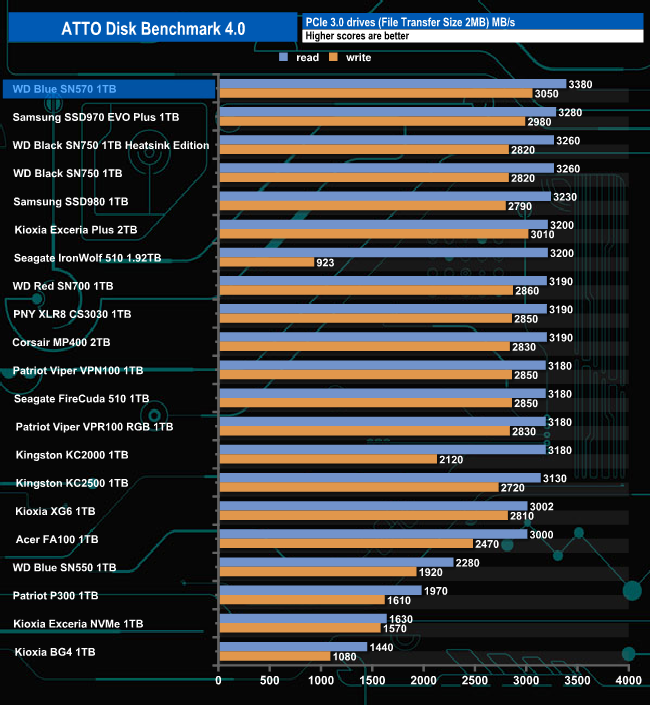

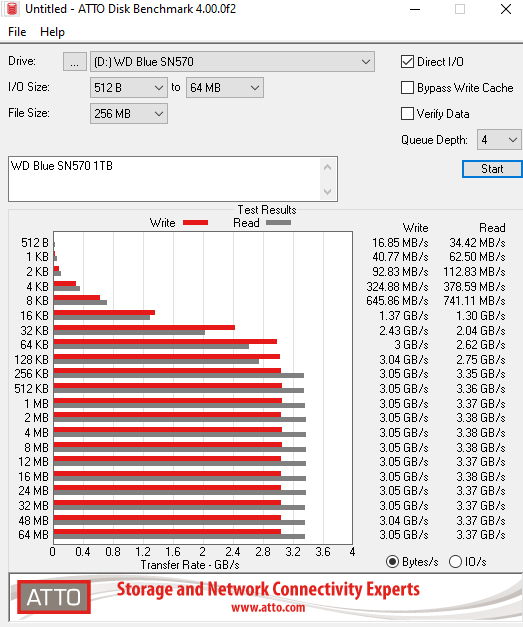

With the ATTO benchmark, we couldn't quite hit the official maximum Sequential read figure of 3,500MB/s with a test result of 3,380MB/s but the 3,050MB/s write result is a little better than the official maximum of 3,000MB/s. Although the 3,380MB/s read test result doesn't quite hit the official maximum, it's still good enough to place the SN570 at the top of the ATTO performance chart.
