The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage. We are using version 3.5 for our NVMe disk tests.

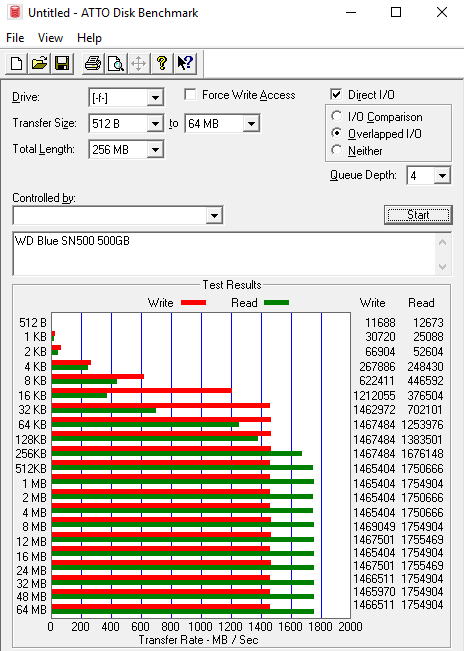

The official WD Sequential performance figures for the 500GB Blue SN500 drive are up to 1,700MB/s reads and up to 1,450MB/s for writes, figures that we could confirm are bang on the money when the review drive was tested with the ATTO benchmark.
