To test real life performance of a drive we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of drive reading from & writing to a 256GB Samsung SSD850 PRO.

To get a measure of how much faster PCIe NVMe drives are than standard SATA SSDss we use the same files but transfer to and from a 512GB Toshiba OCZ RD400

We use the following folder/file types:

• 100GB data file.
• 60GB iso image.
• 60GB Steam folder – 29,521 files.
• 50GB File folder – 28,523 files.
• 12GB Movie folder – 24 files (mix of Blu-ray and 4K files).
• 10GB Photo folder – 621 files (mix of png, raw and jpeg images).
• 10GB Audio folder – 1,483 files (mix of mp3 and .flac files).
• 5GB (1.5bn pixel) photo.

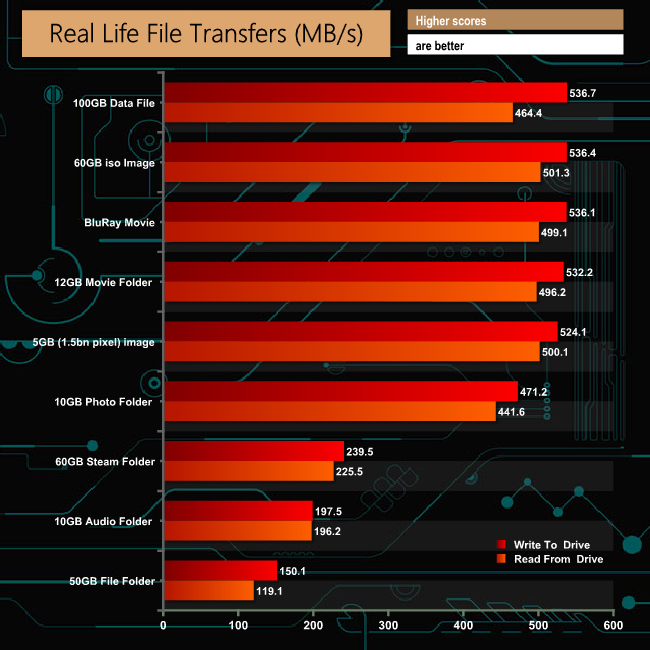

256GB Samsung SSD850 PRO

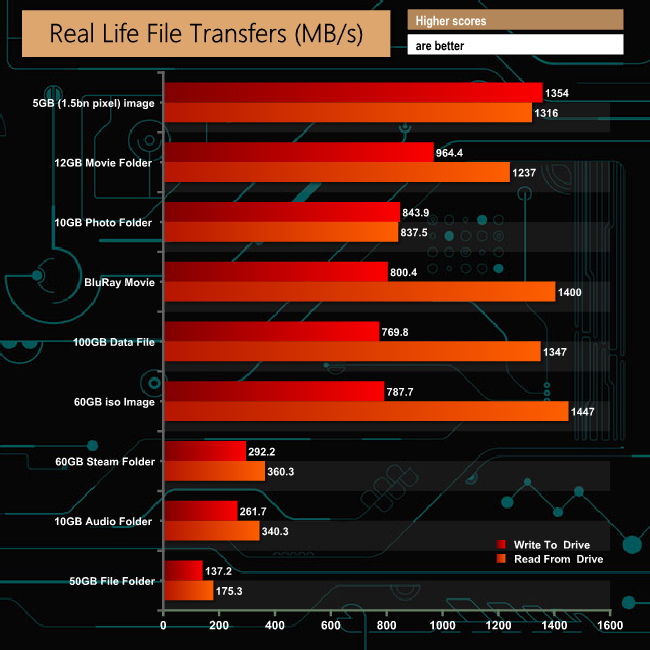

512GB Toshiba OCZ RD400

The WD Blue SN500 handled both sets of real life file transfer tests without any problems.
