We used CrystalDiskMark 8‘s custom settings to test the Sequential read and write performance of the drive through a range of queue depths. The setup for the tests is listed below.

128KB Sequential Read / Write.

Transfer Request Size: 128KB, Thread(s): 1, Outstanding I/O: 1-32.

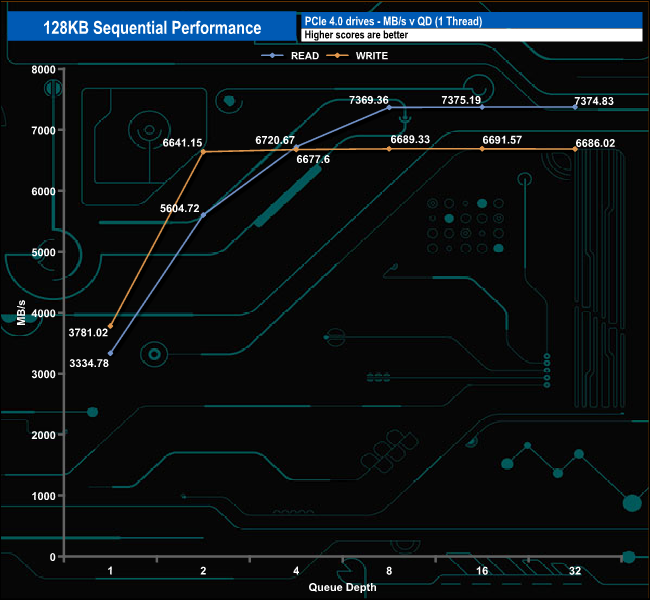

WD rate the Sequential performance of the 2TB Black SN850X as up to 7,300MB/s for reads and up to 6,600MB/s for writes. Using the custom settings option in CrystalDiskMark 8 we could confirm both official read and write figures with test run results of 7,374.83MB/s and 6,686.02MB/s respectively.

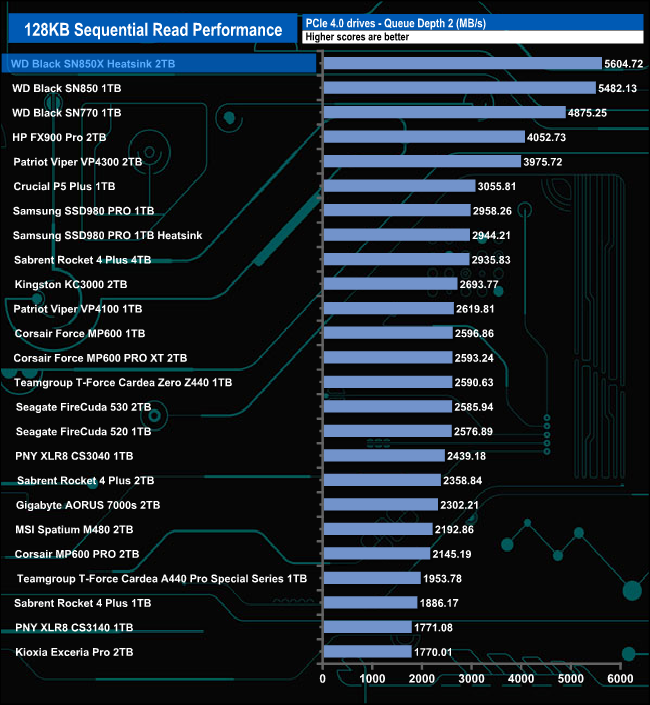

128KB Sequential Read v QD performance compared.

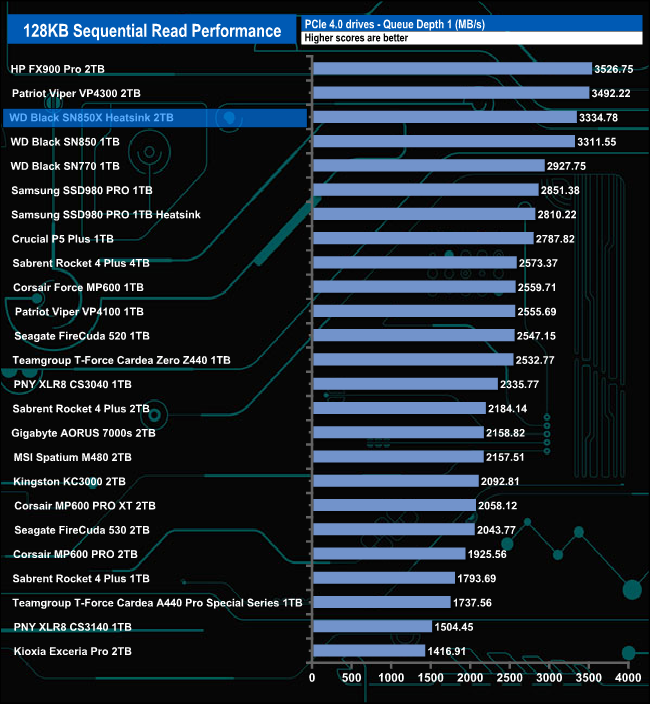

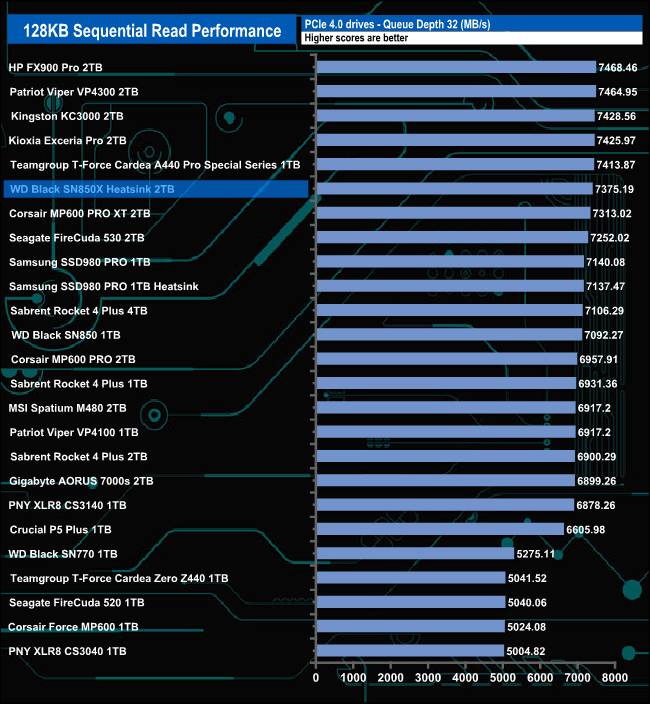

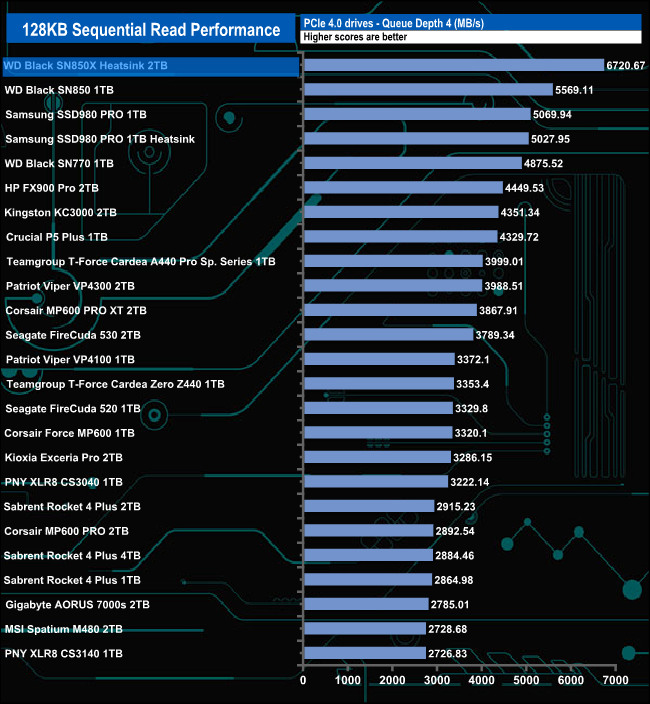

In comparison to the drives around it, the 2TB WD Black SN850X performs best in our Sequential Read tests at QD's 2 & 4 where it tops the charts with results of 5,604.72MB/s and 6,720.67MB/s respectively. At QD1 it sits in third place while at QD32 it drops to sixth.

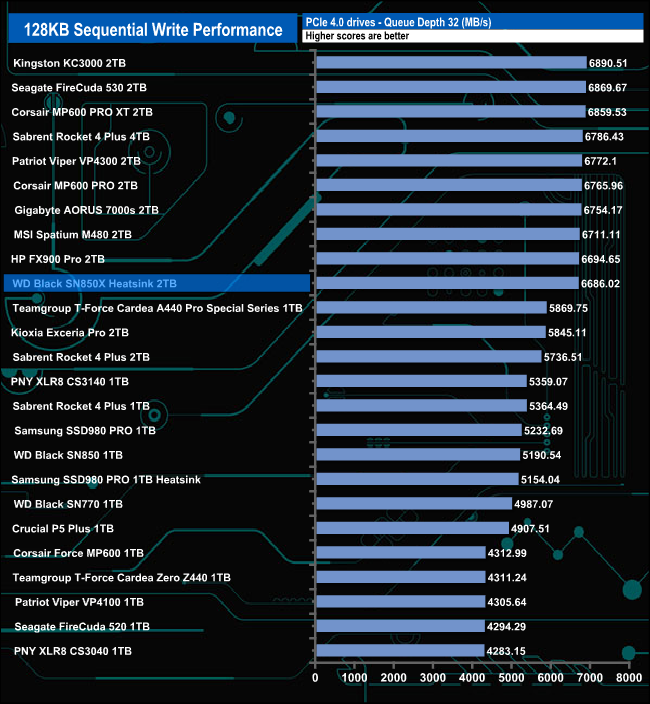

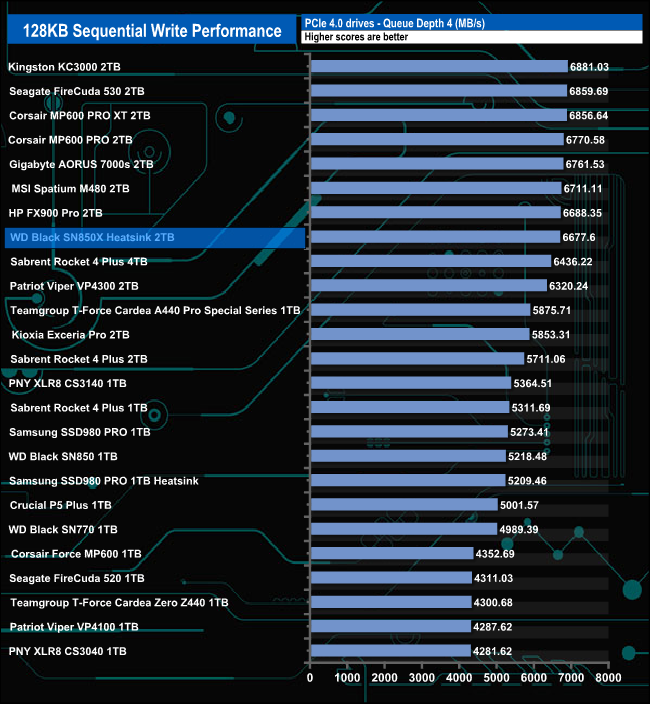

128KB Sequential Write v QD performance compared.

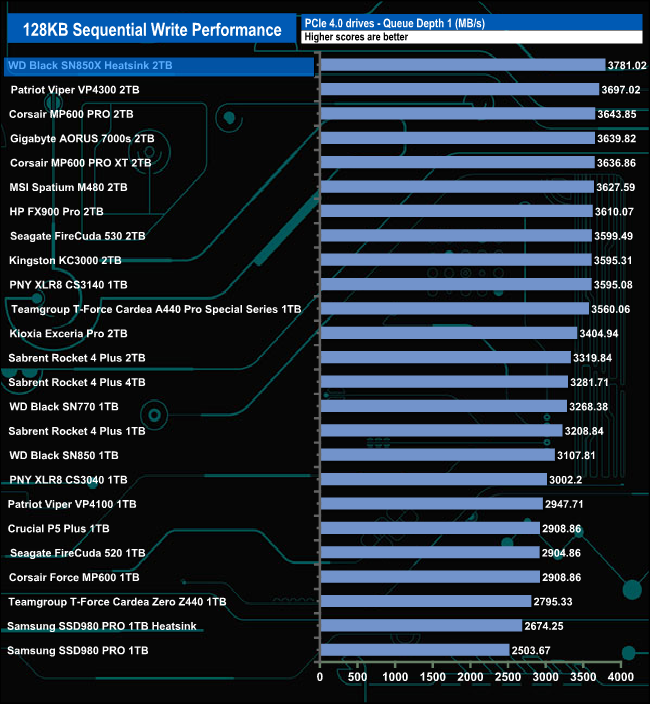

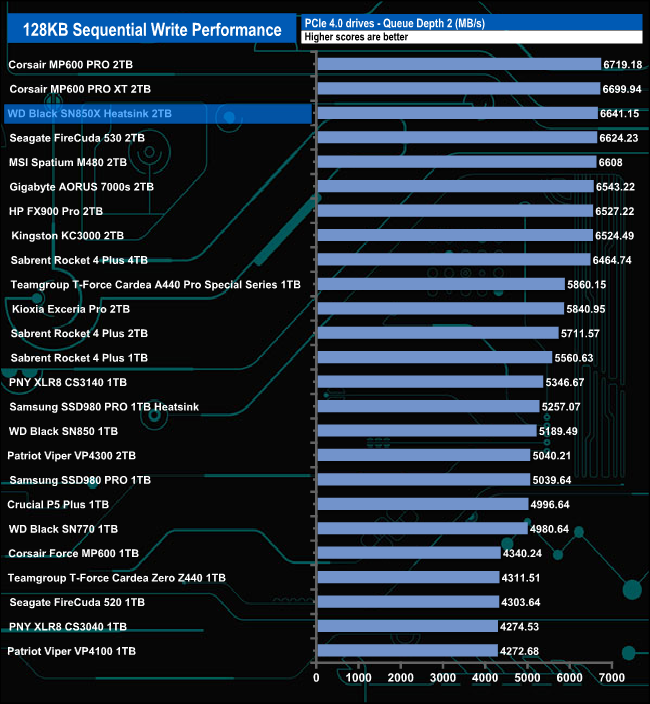

When it comes to Sequential write performance, the drive performs at its best at QD1 where it tops the chart with a test result of 3,781MB/s. As the queue depth deepens the drive drops down the table, finishing our test run at QD32 (6,686MB/s) with the drive at a mid-table position.
