The PCMark 10 Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The benchmark is designed to measure the performance of fast system drives using the SATA bus at the low end and devices connected via PCI Express at the high end.

The goal of the benchmark is to show meaningful real-world performance differences between fast storage technologies such as SATA, NVMe, and Intel’s Optane. The Full System Drive Benchmark uses 23 traces, running 3 passes with each trace. It typically takes an hour to run.

Traces used:

Booting Windows 10.
Adobe Acrobat – starting the application until usable.
Adobe Illustrator – starting the application until usable Adobe Premiere Pro – starting the application until usable.
Adobe Photoshop – starting the application until usable.
Battlefield V – starting the game until the main menu.
Call of Duty Black Ops 4 – starting the game until the main menu.
Overwatch – starting the game until the main menu.
Using Adobe After Effects.
Using Microsoft Excel.
Using Adobe Illustrator.
Using Adobe InDesign.
Using Microsoft PowerPoint.
Using Adobe Photoshop (heavy use).
Using Adobe Photoshop (light use).
cp1 Copying 4 ISO image files, 20 GB in total, from a secondary drive to the target drive (write test).
cp2 Making a copy of the ISO files (read-write test).
cp3 Copying the ISO to a secondary drive (read test).
cps1Copying 339 JPEG files, 2.37 GB in total, to the target drive (write test).
cps2 Making a copy of the JPEG files (read-write test).
cps3 Copying the JPEG files to another drive (read test).

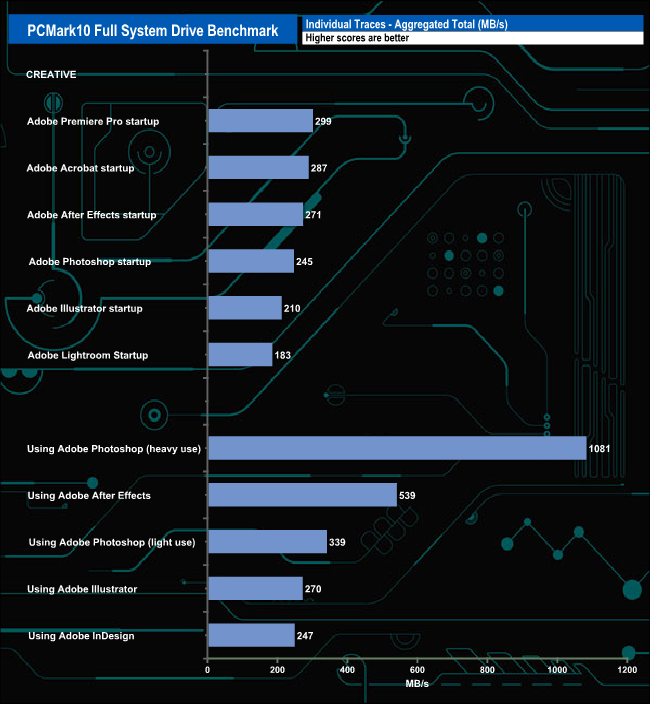

The WD Black SN850X Heatsink dealt with the rigours of the PCMark10’s Full System Drive without any problems. The best result from the Creative set of test traces was the 1,081MB/s for the Heavy Use Adobe Photoshop trace. Also worth a mention was the 539MB/s bandwidth figure for the Adobe After Effects use test trace.

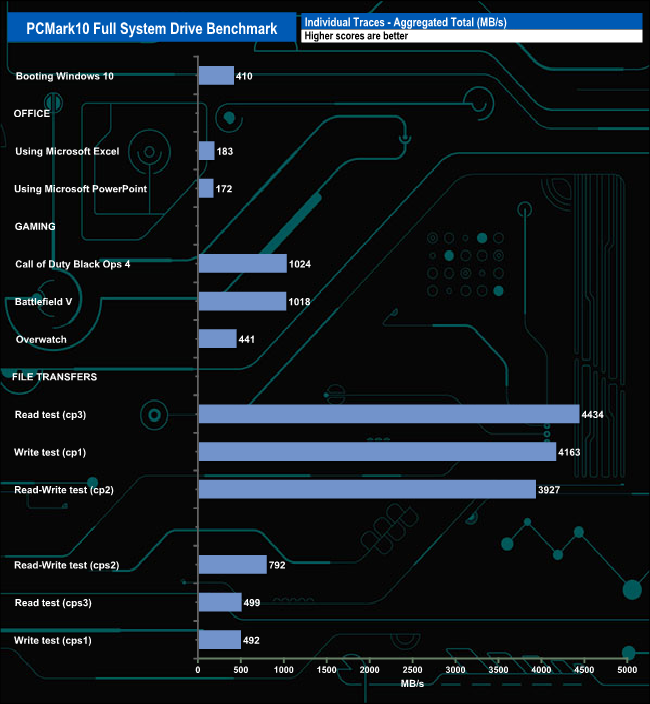

The file transfer tests also produced some good bandwidth figures. Best performance came from the cp3 (read test) at 4,434MB/s with the cp1 (write test) producing 4,163MB/s and the cp2 read/write test trace gave a 3,297MB/s result.

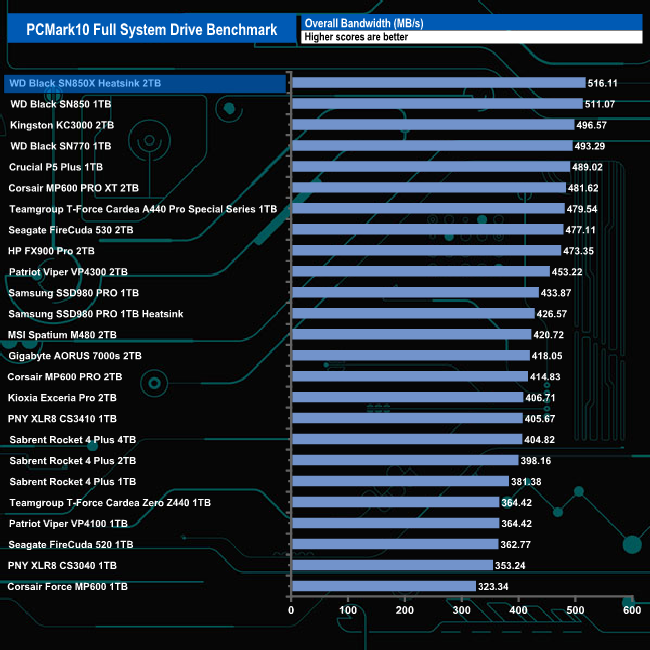

The overall bandwidth figure of 516.11MB/s sees the WD Black SN850X Heatsink just take over the top spot in the chart from the SN850, although there's not a lot in it.
