We used CrystalDiskMark 8 to test the random performance of the drive at lower queue depths (QD1 – QD8 where most of the everyday workloads occur) using 1 to 4 threads.

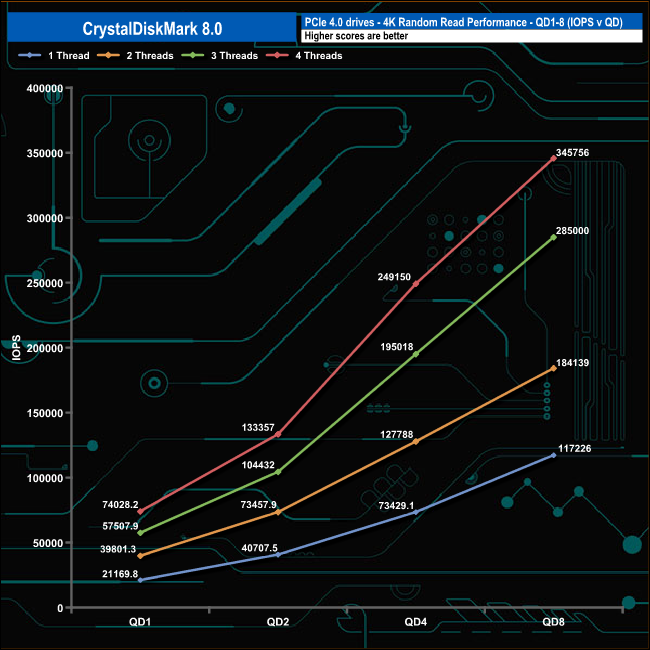

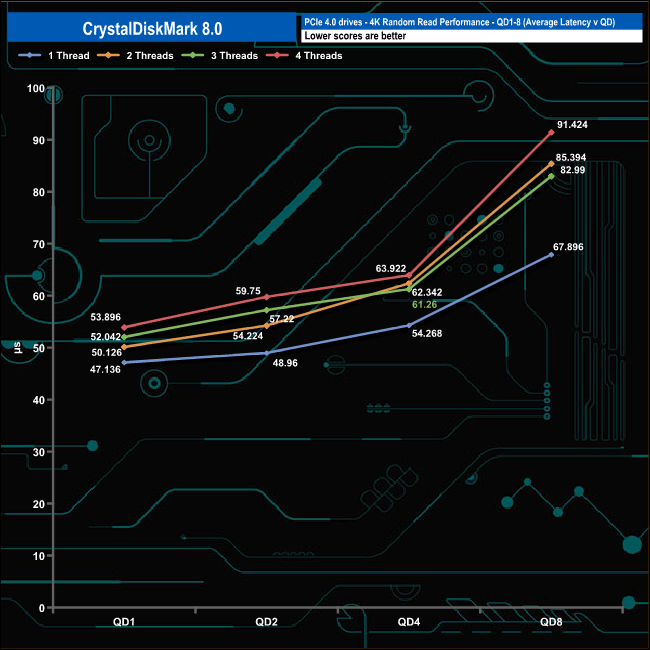

4K Random Read

Using a single thread the performance of the 2TB WD Black SN850X Heatsink ranges from a low point of 21,169 IOPS (86MB/s) at QD1 up to 117,226 IOPS (480MB/s) at QD8. Using four threads the performance of the drive climbs from 74,028 IOPS (303MB/s) at QD1 to 345,756 IOPS (1,416MB/s) at QD8.

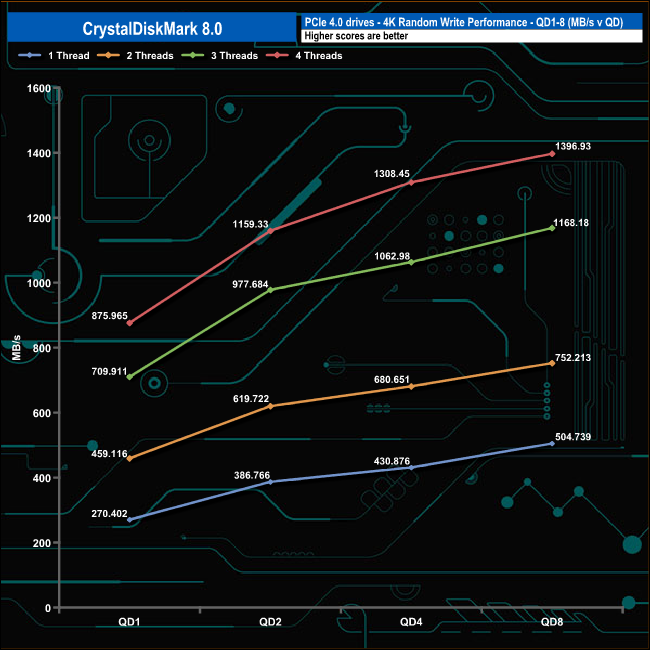

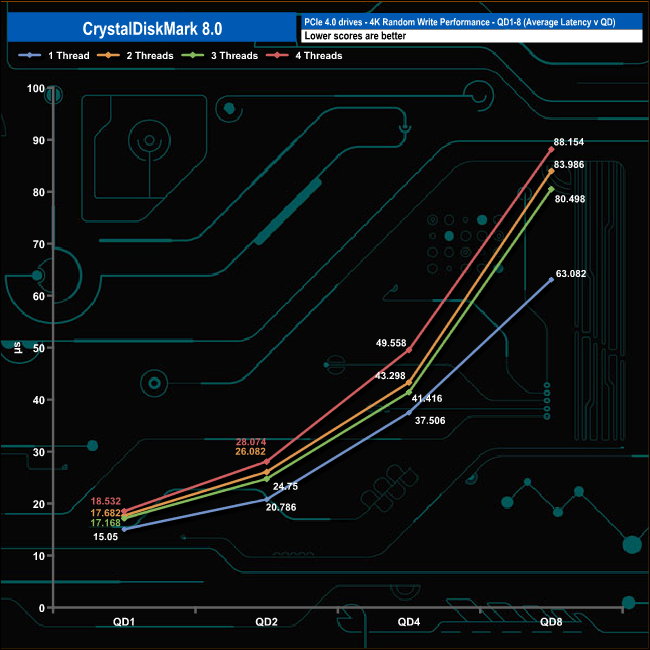

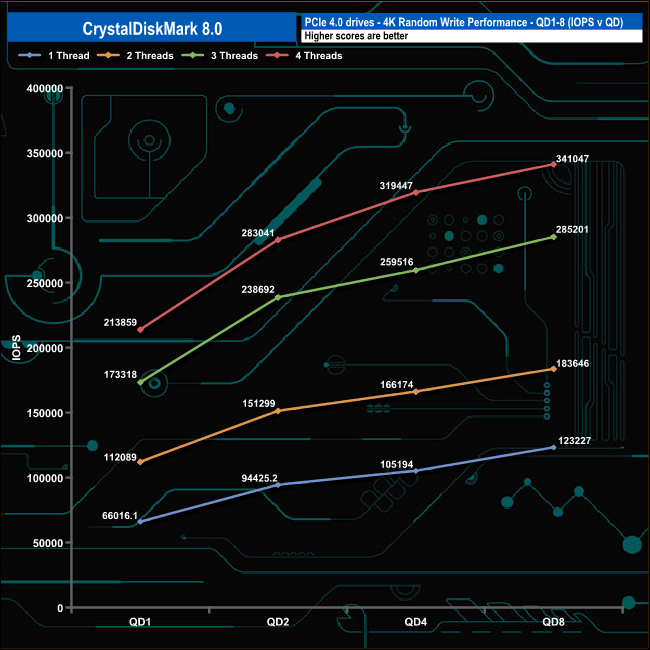

4K Random Write

The 2TB WD Black SN850X write performance climbs very smoothly throughout the tested queue depths and threads with peak performance figures ranging from 123,227 IOPS (QD8) using a single thread up to 341,047 IOPS (QD8) using four threads.
