WD Black SN750 1TB with Heatsink (10c improvements!)

1. Introduction2. WD Black SN750 1TB Heatsink Edition3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMETER8. 128KB Sequential Performance9. 4K Random Read v QD Performance10. 4K Random Write v QD Performance11. 4K 70/30 Mixed Performance12. Throughput13. PCMark 8 - Storage Consistency14. PCMark 8 - Individual Test Suites15. PCMark 8 Storage Test - Individual Test Suites16. Performance Stability17. Real Life File Testing18. Temperature Tests19. Closing Thoughts20. View All Pages

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

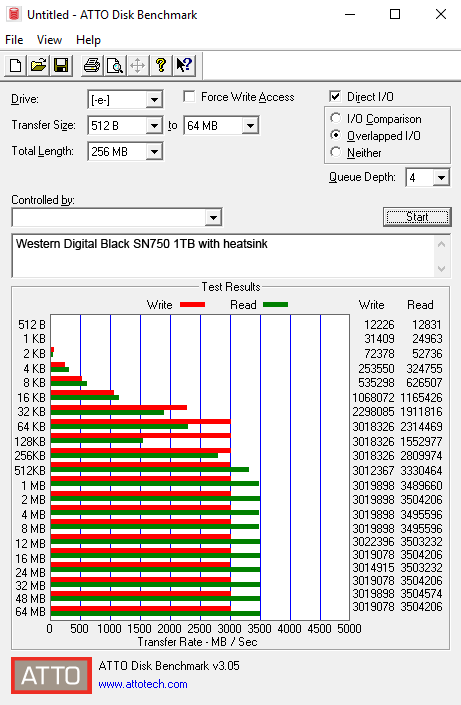

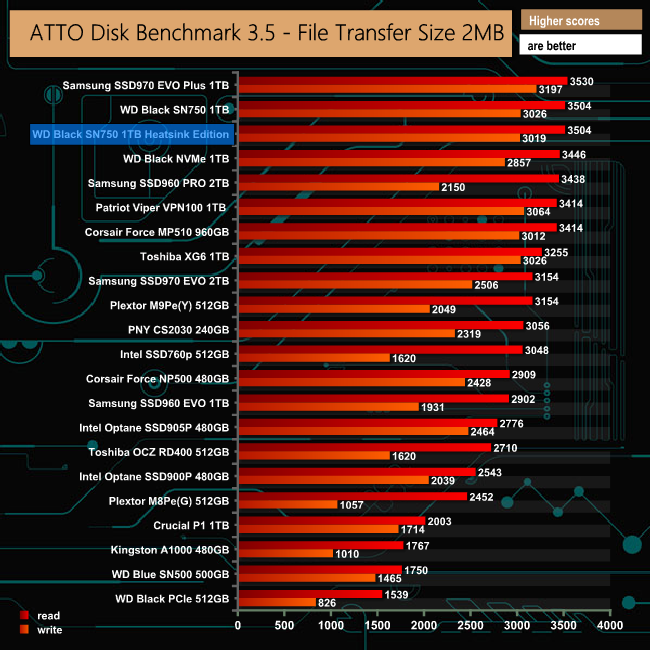

WD’s official Sequential speed ratings for the 1TB drive are up to 3,470MB/s for reads and up to 3,000MB/s for writes. Both speeds are confirmed by the ATTO benchmark with the drive producing a read figure of 3,504MB/s with writes at 3,019MB/s.
