WD Black SN750 1TB with Heatsink (10c improvements!)

1. Introduction2. WD Black SN750 1TB Heatsink Edition3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMETER8. 128KB Sequential Performance9. 4K Random Read v QD Performance10. 4K Random Write v QD Performance11. 4K 70/30 Mixed Performance12. Throughput13. PCMark 8 - Storage Consistency14. PCMark 8 - Individual Test Suites15. PCMark 8 Storage Test - Individual Test Suites16. Performance Stability17. Real Life File Testing18. Temperature Tests19. Closing Thoughts20. View All Pages

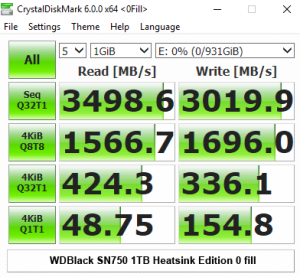

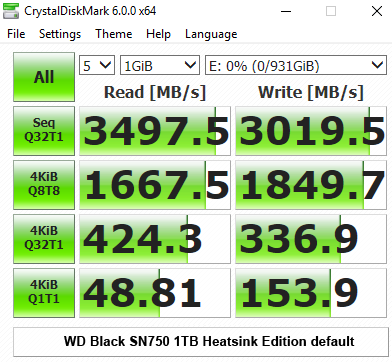

CrystalDiskMark is a useful benchmark to measure theoretical performance levels of hard drives and SSD’s.

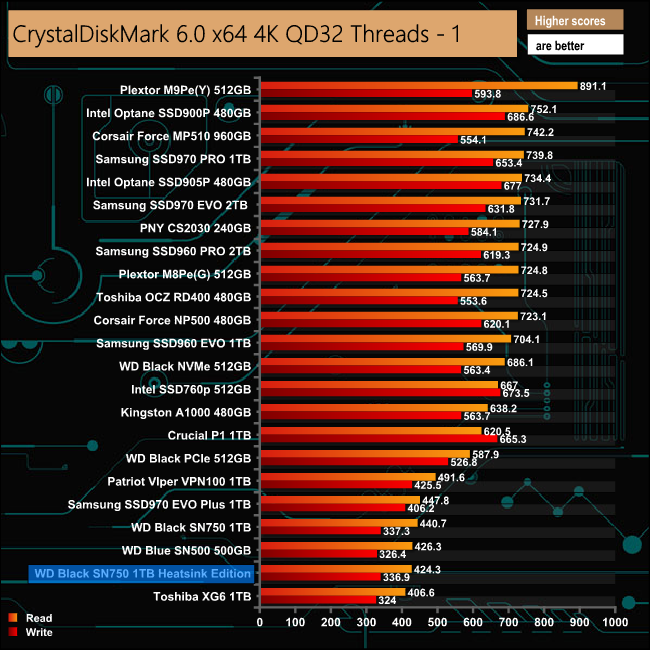

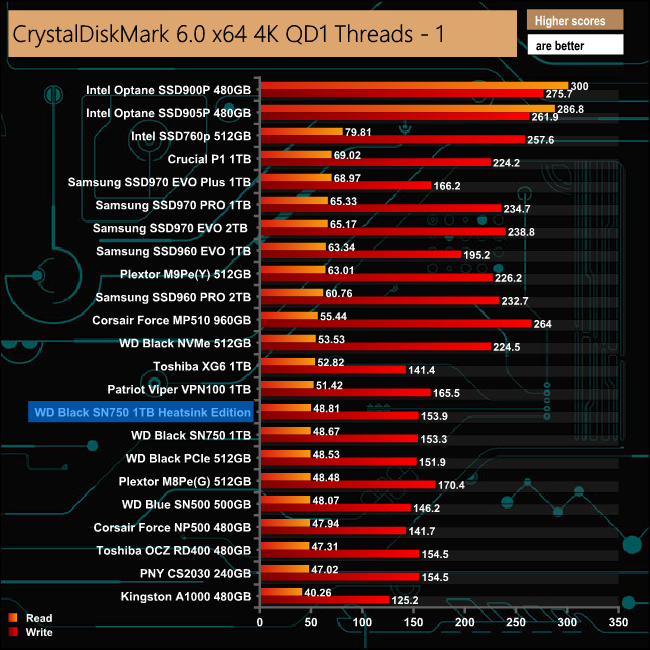

As with the standard version of the Black SN750, the Heatsink edition version of the drive doesn’t perform as well as the previous generation Black NVMe drive at either shallow (QD1) or deep (QD32) queue depths in the CrystalDiskMark benchmark.
