The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customise your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

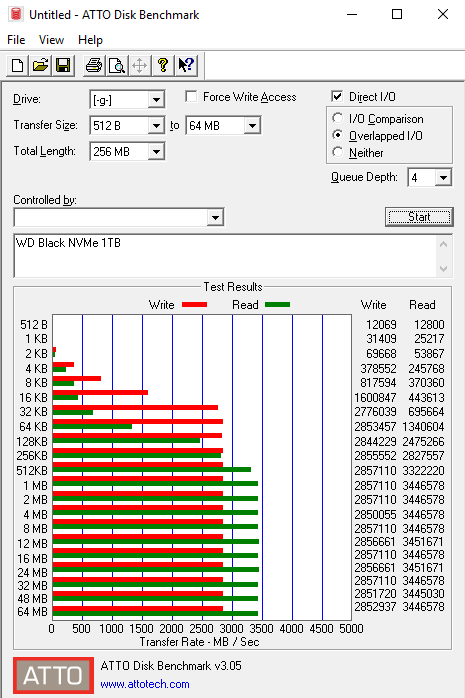

Once again we are upgrading which ATTO version we are using for NVMe drives, so we have also included the result screenshot from the new version.

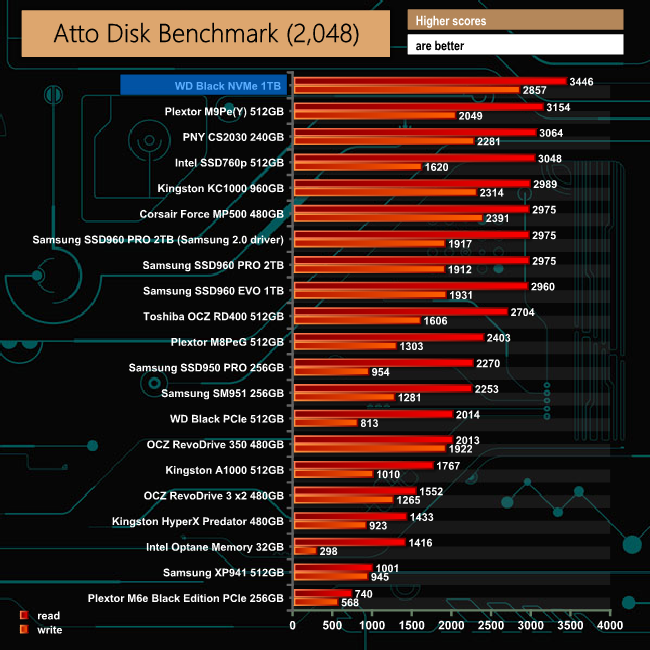

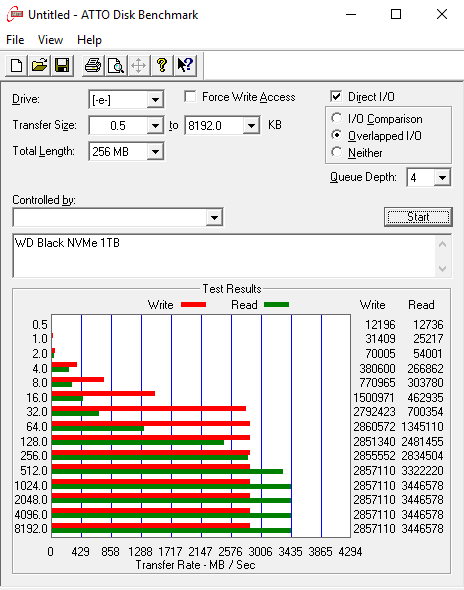

WD's official sequential figures for the 1TB drive are up to 3,400MB/s for reads and up to 2,800MB/s for writes. Using the ATTO benchmark we were able to confirm these speeds as the drive produced a read score of 3,446MB/s with writes coming in at 2,857MB/s. Both of these numbers make the WD Black NVMe 1TB the fastest consumer drive we have tested to date.
