Seagate IronWolf 110 240GB SSD Review

1. Introduction2. Seagate IronWolf 110 240GB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMETER8. Throughput9. PCMark 8 - Storage Consistency10. PCMark 8 - Individual Test Suites11. PCMark 8 Storage Test - Individual Test Suites12. Performance Stability13. Workload Scenarios14. RAID Performance15. Real Life File Testing16. Closing Thoughts17. View All Pages

IOMeter is another open source synthetic benchmarking tool which is able to simulate the various loads placed on hard drive and solid state drive technology.

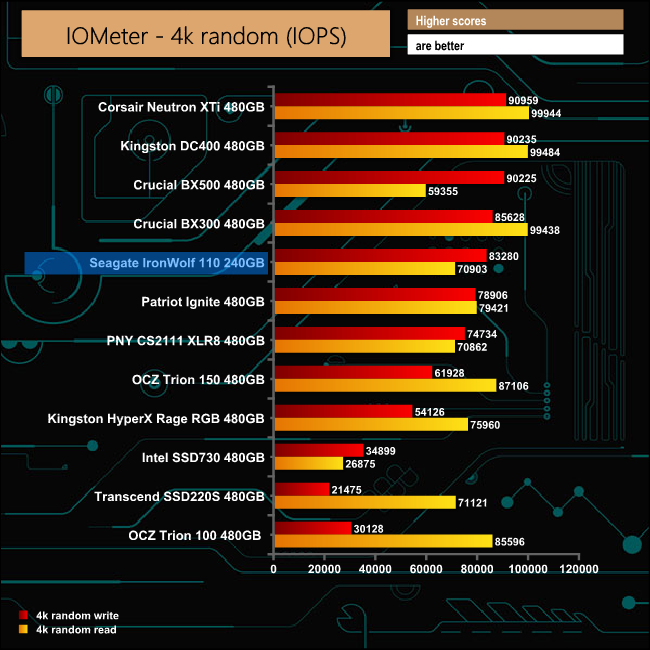

We test with both random read and write 4k tests, as shown above. There are many ways to measure the IOPS performance of a Solid State Drive, so our results will sometimes differ from manufacturer’s quoted ratings. We do test all drives in exactly the same way, so the results are directly comparable.

The official 4k random read/write figures for the drive are up to 55,000 and 30,000 IOPS respectively. These figures are from testing done at a queue depth of 32. We tested the drive at QD1 and got a read figure of 70,903 IOPS, with 83,280 IOPS for writes.
