Seagate FireCuda 540 2TB Gen 5 SSD Review

1. Introduction2. Seagate FireCuda 540 2TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Temps17. Real Life File Testing18. Closing Thoughts19. View All Pages

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

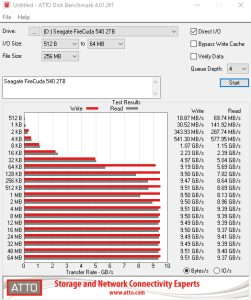

We are using version 4.1 for our NVMe disk tests.

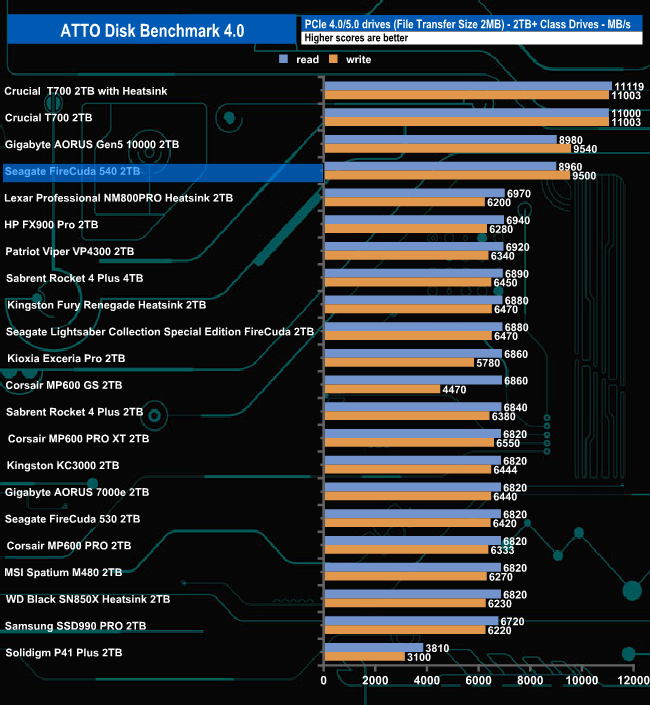

Using the ATTO benchmark we couldn't quite get to the official maximum Sequential figures of up to 10,000MB/s for both reads and writes, The best we saw from testing was 8,950MB/s for reads with writes a little faster at 9,500MB/s.

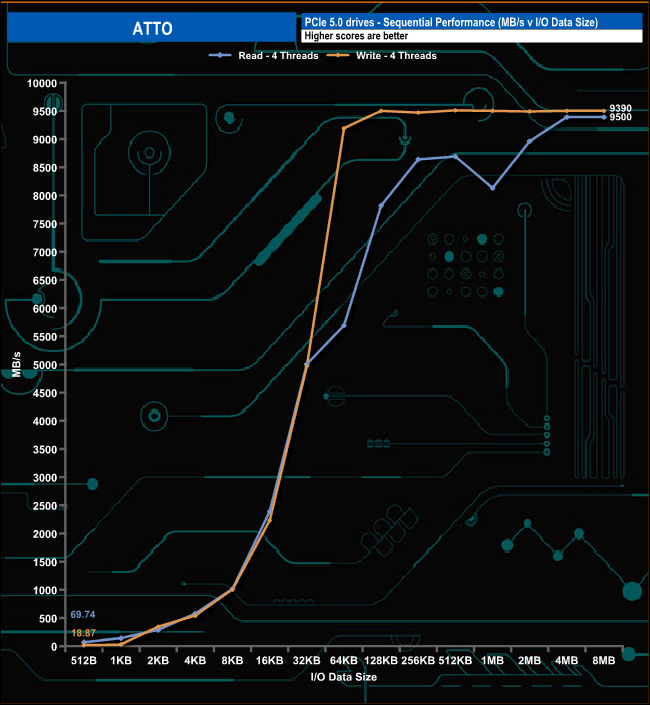

Using the ATTO benchmark, the read performance began to plateau out at 4MB (9,390MB/s), but the write performance levels off way before that, at the 128KB mark with a figure of 9,500MB/s.
