The 3DMark Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance.

Traces used –

Battlefield V
Loading Battlefield™ V from launch to the main menu.

Call of Duty Black Ops 4
Loading Call of Duty®: Black Ops 4 from launch to the main menu.

Overwatch
Loading Overwatch® from launch to the main menu.

Game Move
Copying the Steam folder for Counter-Strike®: Global Offensive from an external SSD to the system drive.

Game Recording
Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch®.

Installing Game
Installing The Outer Worlds® from the Epic Games Launcher.

Game Saving
Saving progress in The Outer Worlds game.

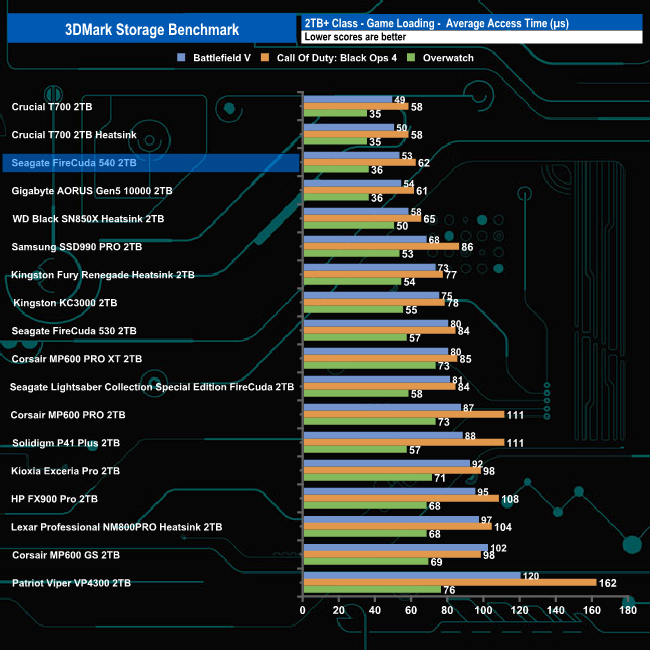

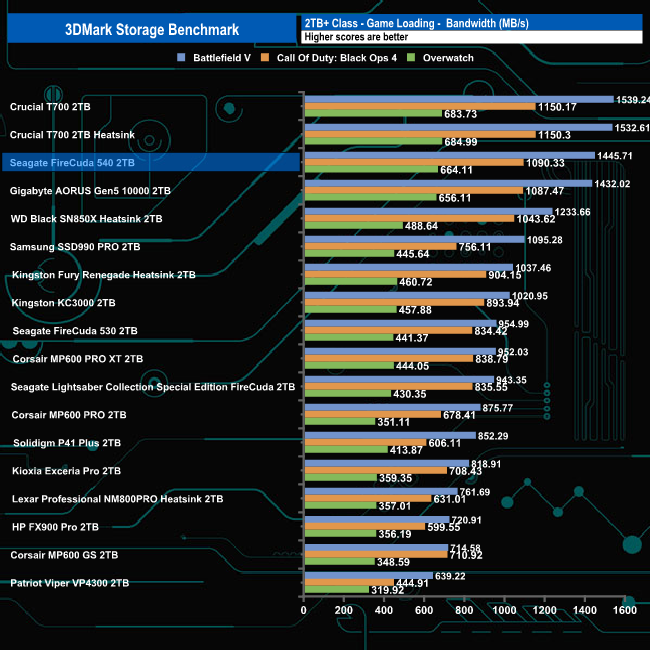

In 3DMark’s Storage Test, the FireCuda 540 had an average game loading bandwidth figure for the three games of 1,066MB/s with an average access time of 50µs.

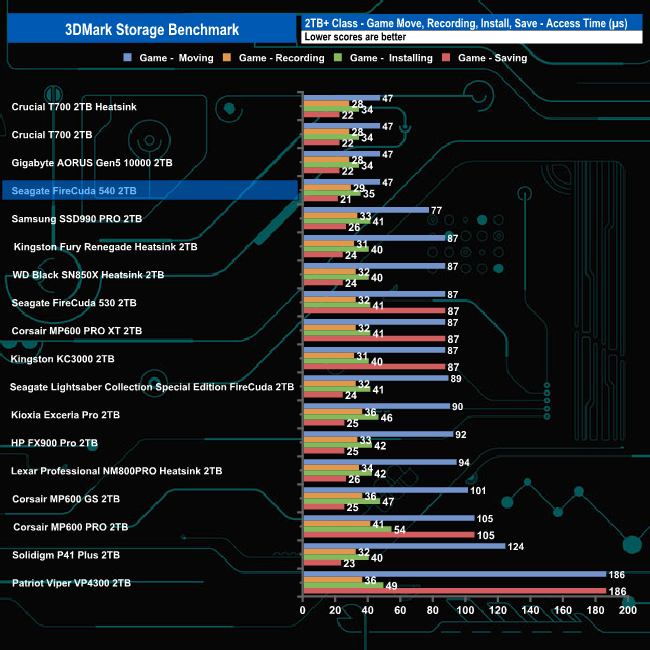

In the game moving, recording, installing and saving test traces the drive averaged 1,615.62MB/s with an average access time of 33µs for the four tests.

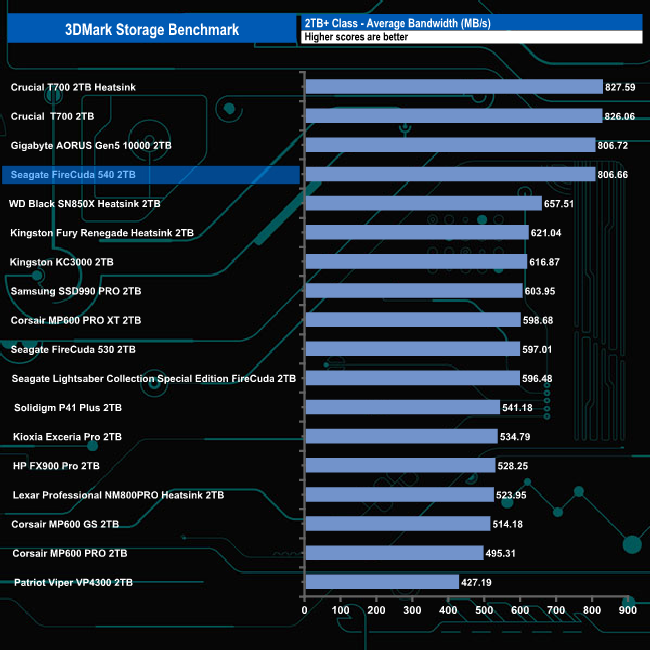

The average bandwidth for the 2TB Seagate FireCuda 540 for the complete benchmark run was 806.66MB/s.
