The 3DMark Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance.

Traces used –

Battlefield V
Loading Battlefield™ V from launch to the main menu.

Call of Duty Black Ops 4
Loading Call of Duty®: Black Ops 4 from launch to the main menu.

Overwatch
Loading Overwatch® from launch to the main menu.

Game Move
Copying the Steam folder for Counter-Strike®: Global Offensive from an external SSD to the system drive.

Game Recording
Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch®.

Installing Game
Installing The Outer Worlds® from the Epic Games Launcher.

Game Saving
Saving progress in The Outer Worlds game.

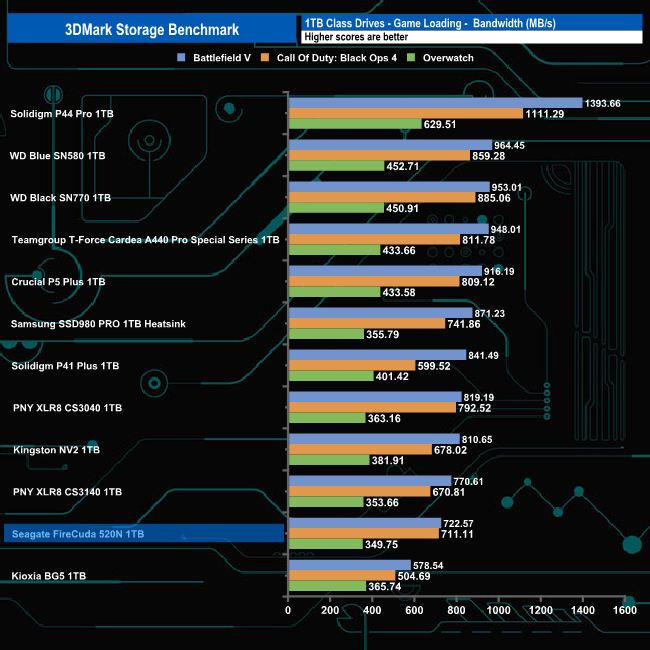

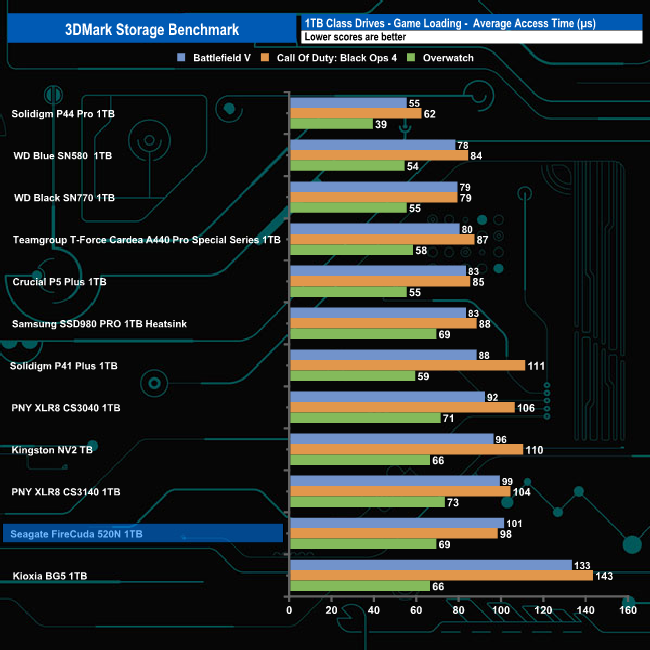

When tested with 3DMark’s Storage Test benchmark, the FireCuda 520N produced an average game loading bandwidth figure for the three games of 594.47MB/s with an overall average access time for the three of 89µs.

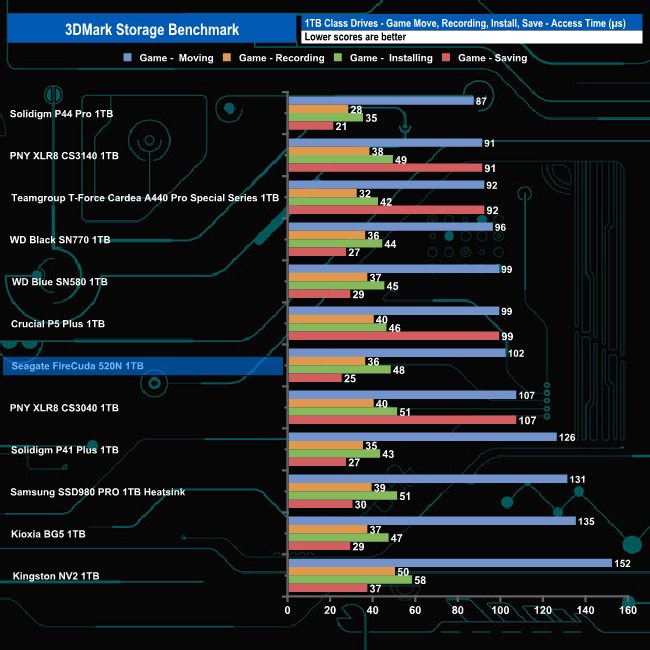

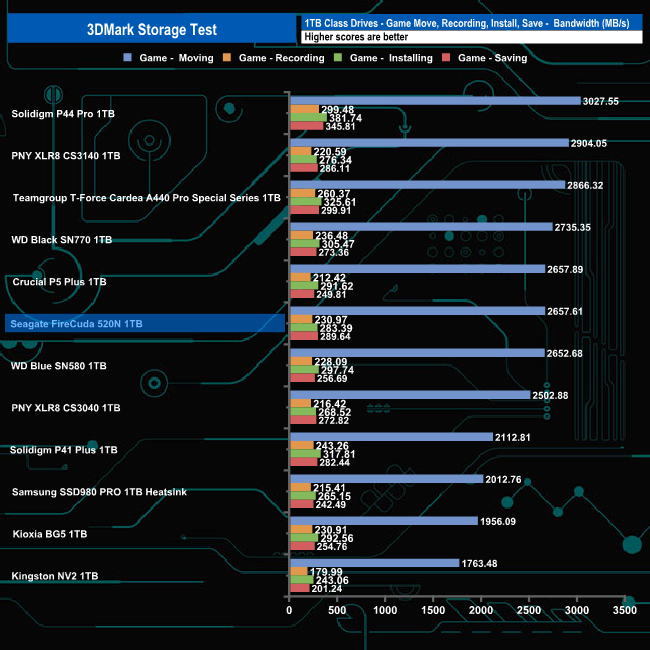

In the game moving, recording, installing and saving test traces the drive averaged 865.41MB/s for the four tests at an average access time of 53µs.

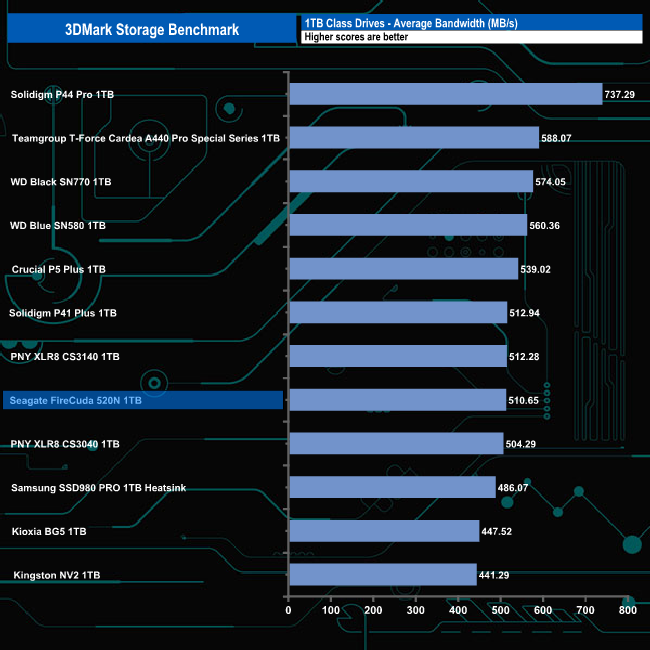

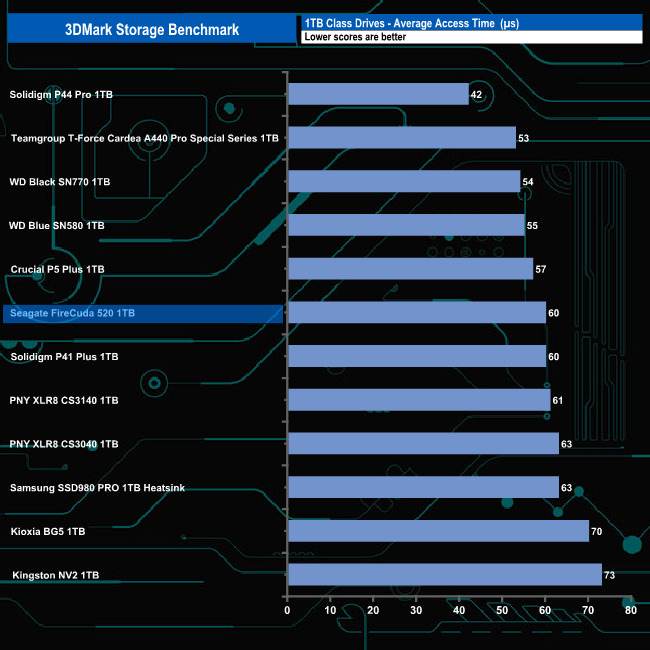

The average bandwidth figure for the 1TB Seagate FireCuda 520N for the complete benchmark run was 510.65MB/s at an average access time of 60µs which puts the drive in the bottom half of the results table.
