Seagate FireCuda 510 1TB SSD Review

1. Introduction2. Seagate FireCuda 510 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMETER8. 128KB Sequential Performance9. 4K Random Read v QD Performance10. 4K Random Write v QD Performance11. 4K 70/30 Mixed Performance12. Throughput13. PCMark 8 - Storage Consistency14. PCMark 8 - Individual Test Suites15. PCMark 8 Storage Test - Individual Test Suites16. Performance Stability17. Real Life File Testing18. Closing Thoughts19. View All Pages

As with our random read tests, the 4-threaded 4K random write test result of 198,568 IOPS was nowhere close to the official figure of up to 600,000 IOPS. As we did with random reads we tested the drive at a QD of 32 using eight threads which gave us a result of 486,103 IOPS, a large way towards the official maximum IOPS figure.

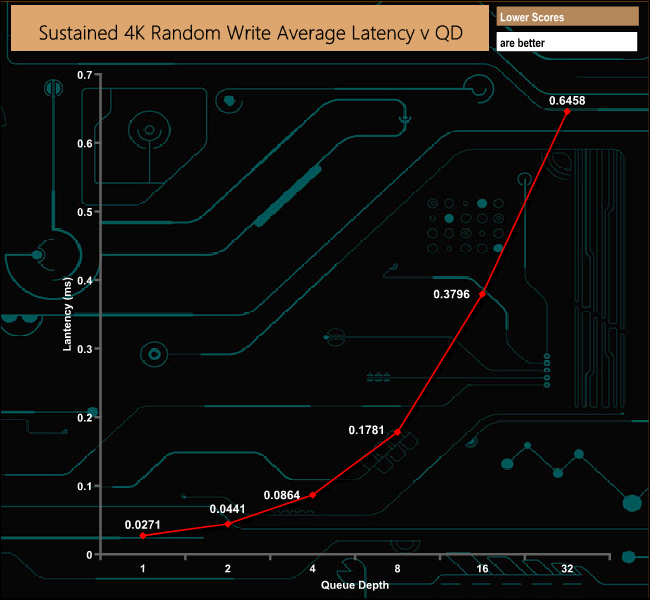

4K Random Write v QD Performance Compared

At the various tested queue depths the FireCuda keeps pace with the majority of the drives using the same controller and NAND combo with the exception of Corsair's Force MP510 drive at QD1 where the Corsair drive is much faster. At a QD of 32 it's the FireCuda that reigns supreme amongst the Phison PS5012-E12 / Toshiba 3D TLC NAND users.
