Samsung SSD 970 EVO Plus 1TB Review

1. Introduction2. Samsung 970 EVO Plus 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMeter8. 128KB Sequential Performance9. 4K Random Read v QD Performance10. 4K Random Write v QD Performance11. 4K 70/30 Mixed Performance12. Throughput13. PCMark 8 - Storage Consistency14. PCMark 8 - Individual Test Suites15. PCMark 8 Storage Test - Individual Test Suites16. Performance Stability17. Real Life File Testing18. Closing Thoughts19. View All Pages

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

We are using version 3.5 for our NVMe disk tests.

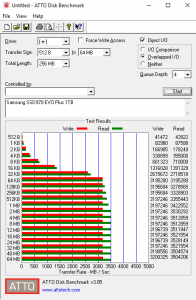

Samsung rates the Sequential performance of the 1TB SSD970 EVO Plus as up to 3,500MB/s for reads and up to 3,300MB/s for writes. When tested with the ATTO benchmark, the review drive matched the official read figure with 3,530MB/s while not quite getting to the top end write figure at 3,197MB/s. Both those figures however, allow it to take top spot on the chart from WD's latest Black SN750 drive.
