The 3DMark Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance.

Traces used:

Battlefield V
Loading Battlefield™ V from launch to the main menu.

Call of Duty Black Ops 4
Loading Call of Duty®: Black Ops 4 from launch to the main menu.

Overwatch
Loading Overwatch® from launch to the main menu.

Game Move
Copying the Steam folder for Counter-Strike®: Global Offensive from an external SSD to the system drive.

Game Recording
Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch®.

Installing Game
Installing The Outer Worlds® from the Epic Games Launcher.

Game Saving
Saving progress in The Outer Worlds game.

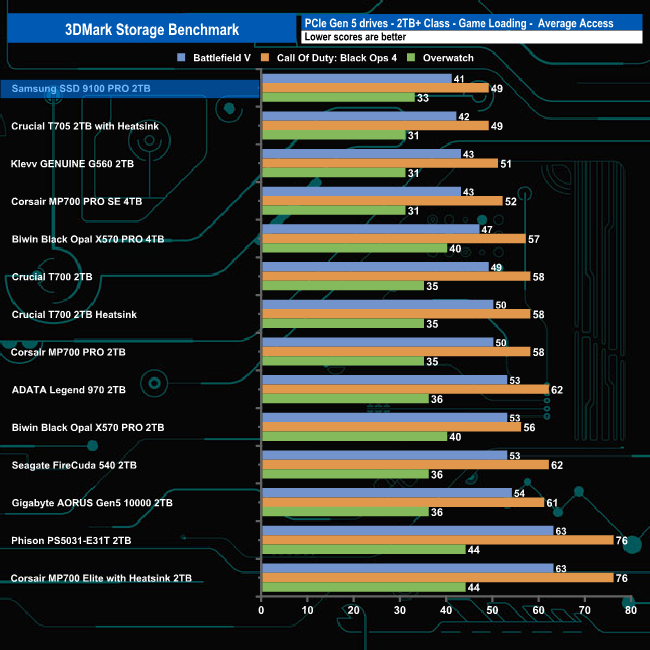

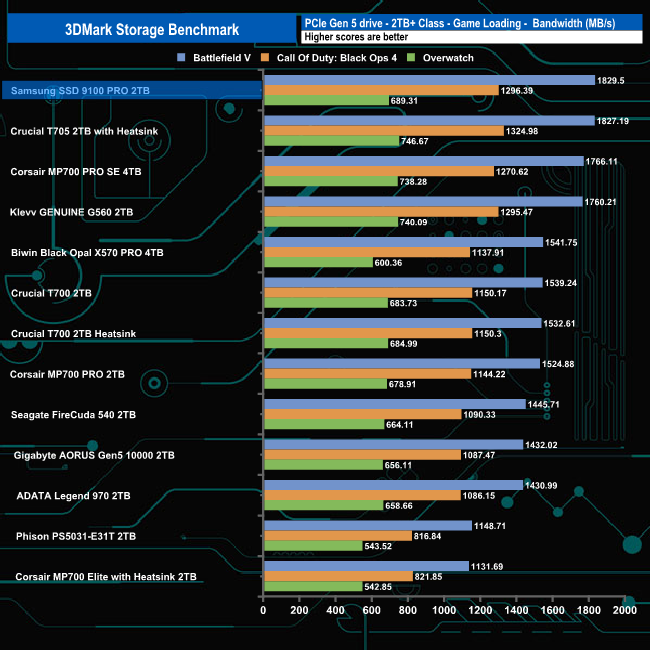

In 3DMark’s Storage Test, the drive had an average game loading bandwidth figure for the three games of 1,258MB/s, the fastest we've seen to date in this part of the test with an average access time figure of 41µs (0.041m/s).

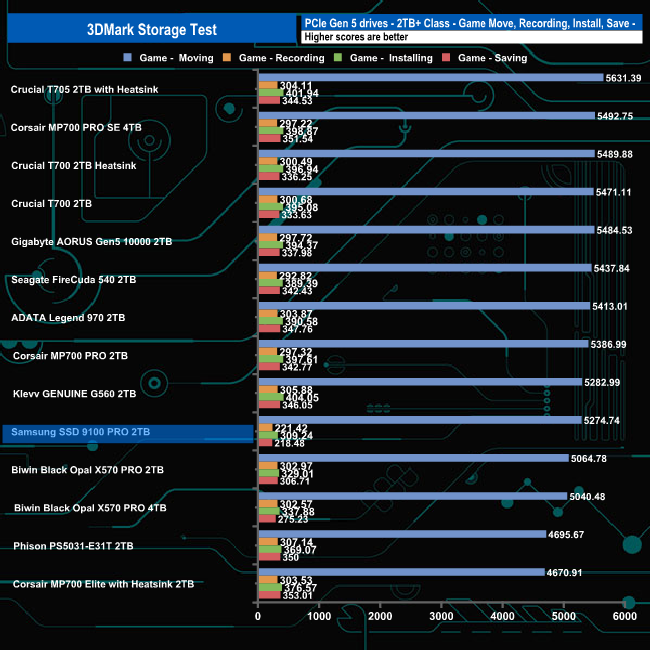

In the game moving, recording, installing and saving test traces, the drive averaged 1,505.47MB/s with an average access time of 40µs (0.040m/s) for the four tests, which sees the drive in the lower half of the table.

The overall average bandwidth figure for the 2TB Samsung SSD 9100 Pro for the complete benchmark run was 746.35MB/s, a result which sees the drive sitting close to the bottom of the results chart.
