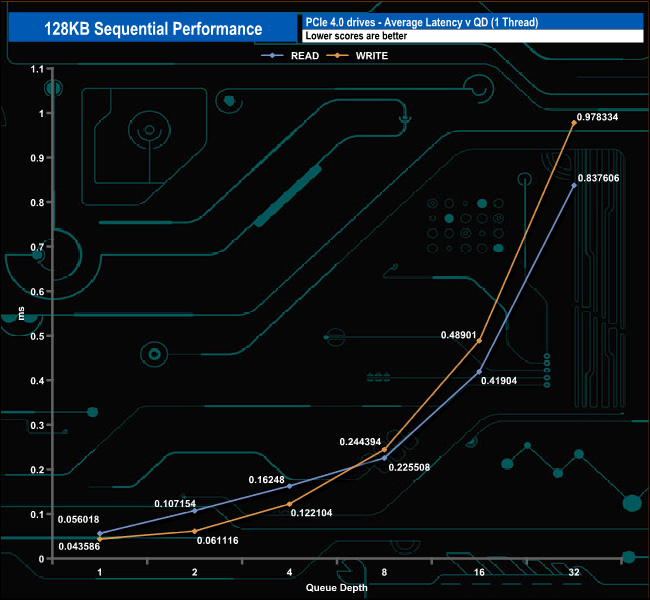

We used CrystalDiskMark 8‘s custom settings to test the Sequential read and write performance of the drive through a range of queue depths. The setup for the tests is listed below.

128KB Sequential Read / Write.

Transfer Request Size: 128KB, Thread(s): 1, Outstanding I/O: 1-32.

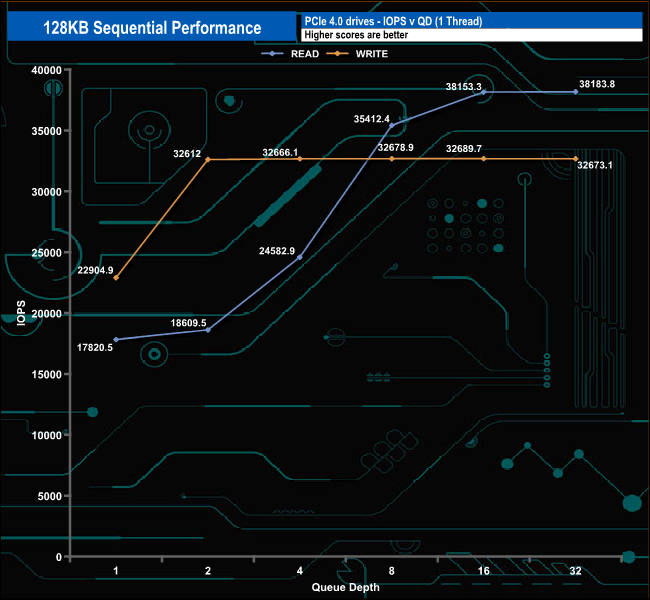

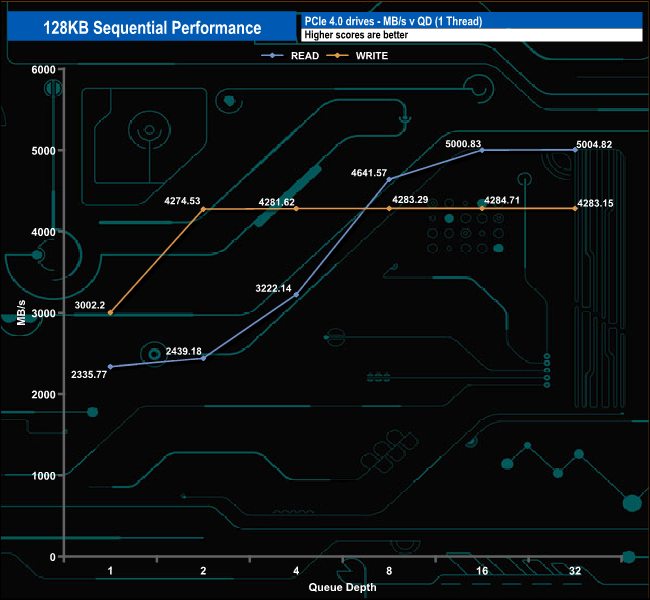

The XLR8 CS3040 produced a best sequential read figure of 5,004.82MB/s, a fair bit short of the official maximum of 5,600MB/s. The best sequential write figure we saw was 4,284.17MB/s which is not so far away from the official maximum of 4,300MB/s.

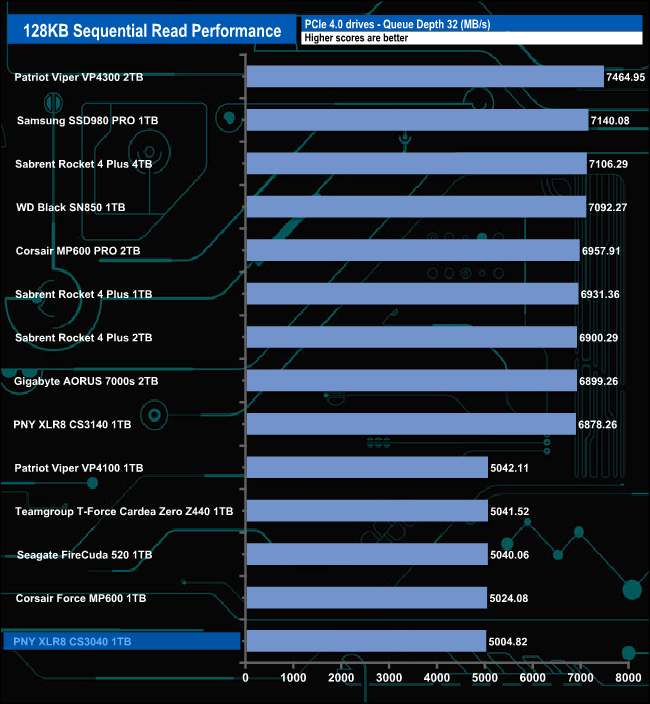

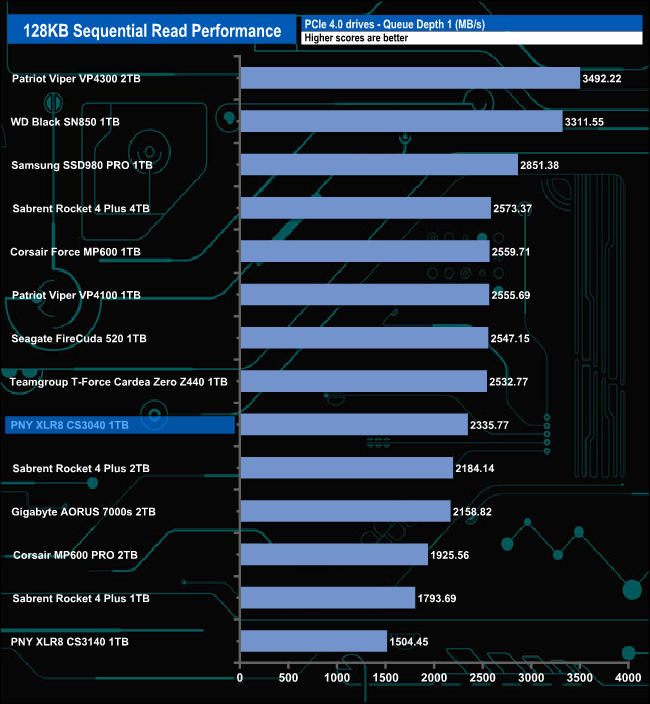

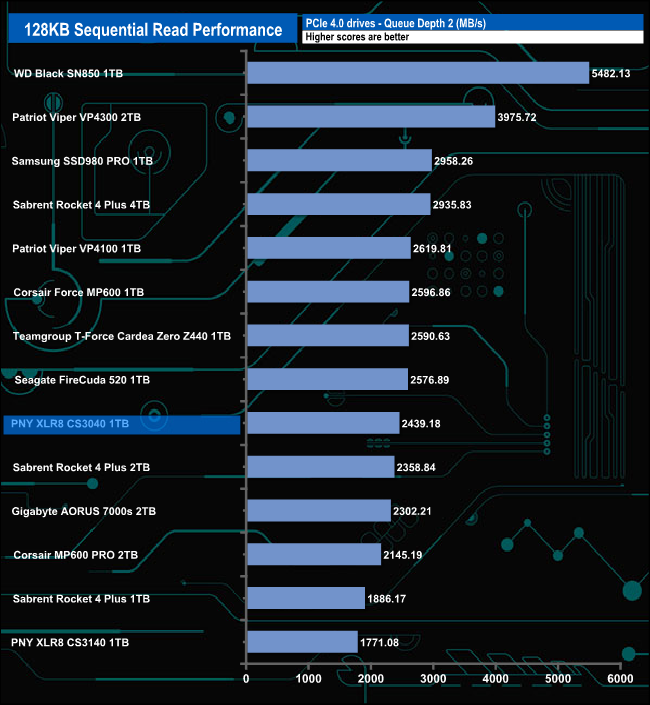

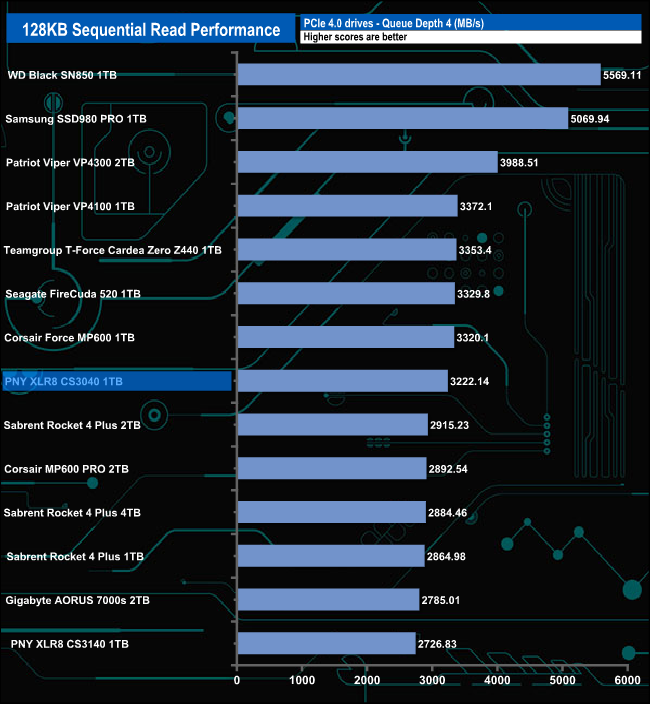

128KB Sequential Read MB/s v QD compared.

The XLR8 CS3040 sits at the halfway mark in result charts at QDs 1, 2 and 4 but by the QD32 test, it has dropped to the bottom of the list.

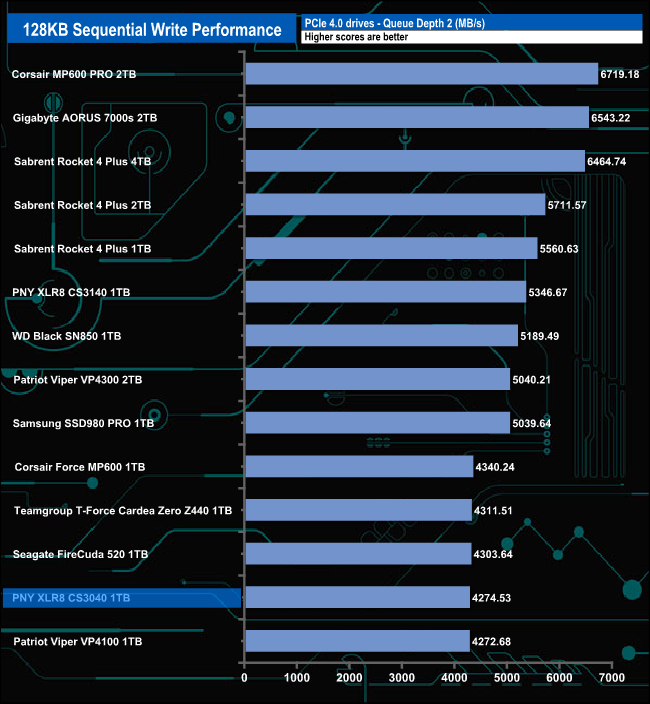

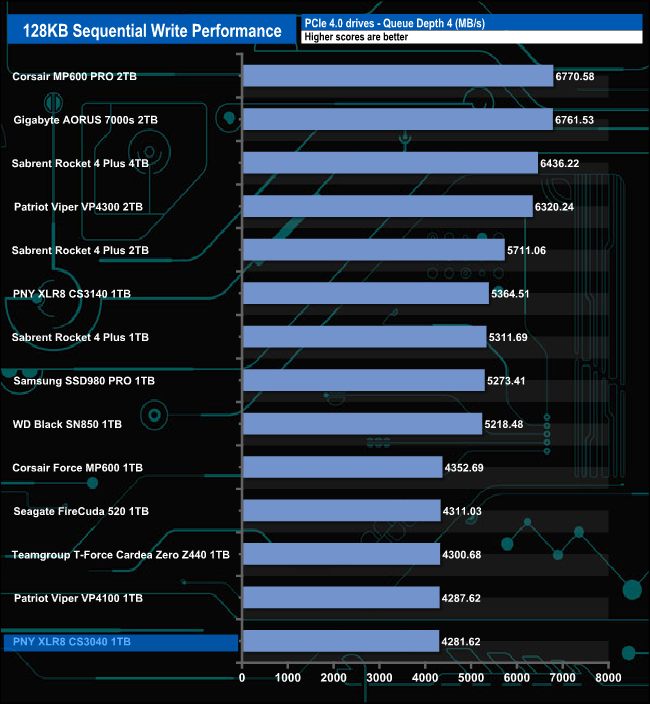

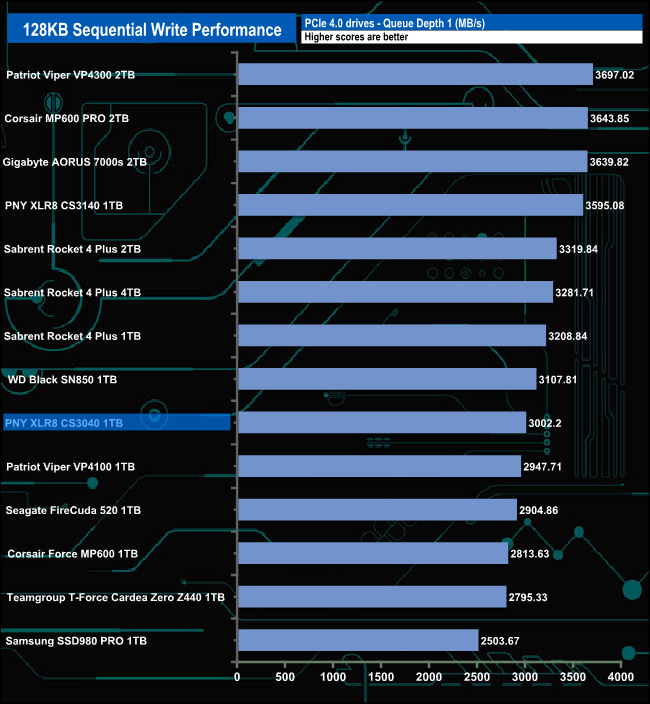

128KB Sequential Write MB/s v QD compared.

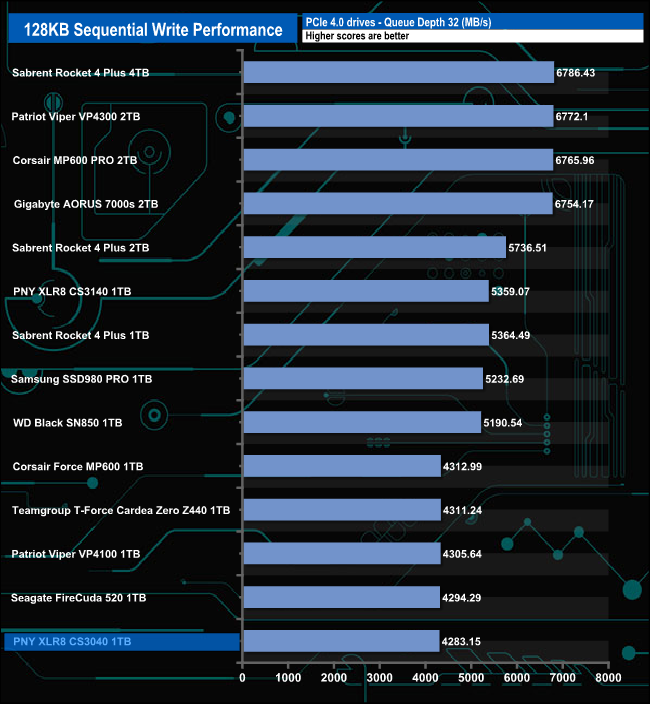

At a QD of 1, the PNY CS3040 sits in the bottom half of the results chart but at QD2 its is in last but one place and at QDs 4 and 32 it sits in last place.
