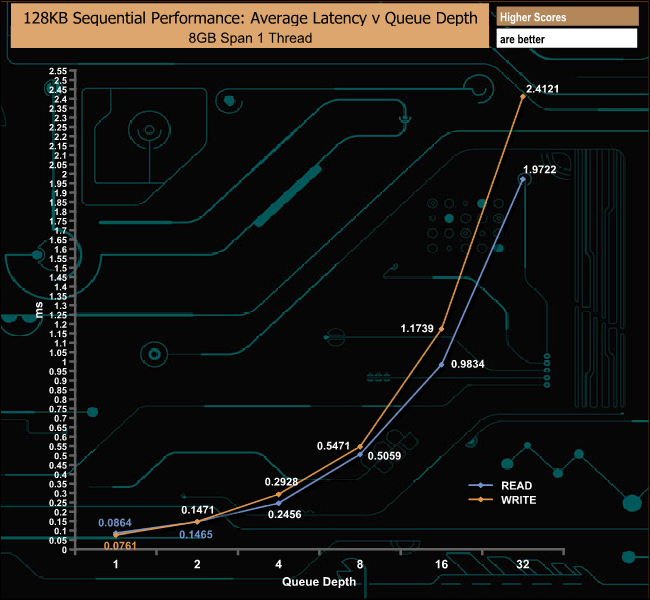

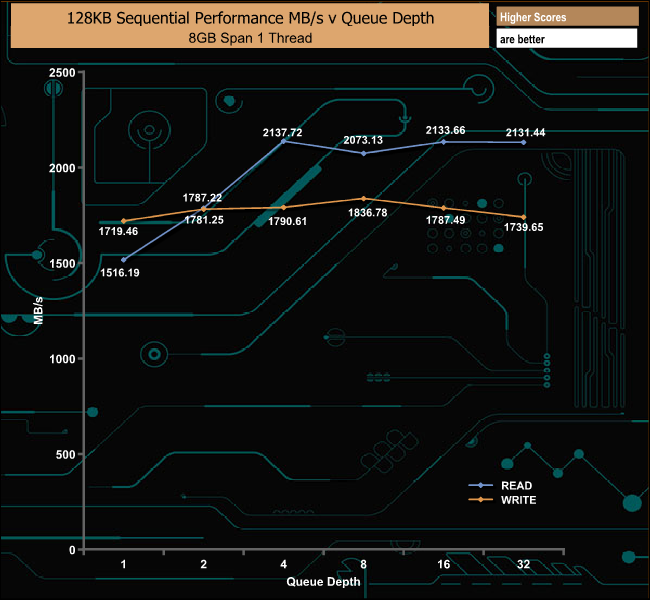

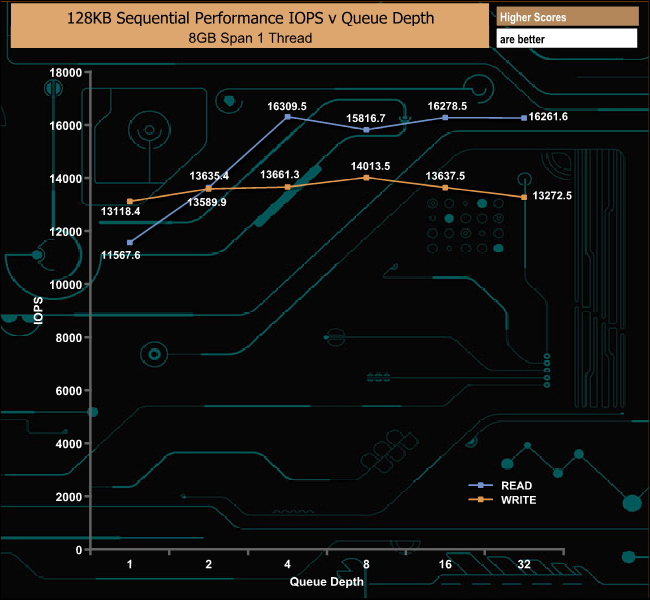

Using our own Sequential tests we could confirm the official maximum read figure of 2,100MB/s with a tested figure of 2,137.72MB/s at a queue depth of 4. The best write figure we saw was 1,836.78MB/s (QD8) which betters the official 1,650MB/s.

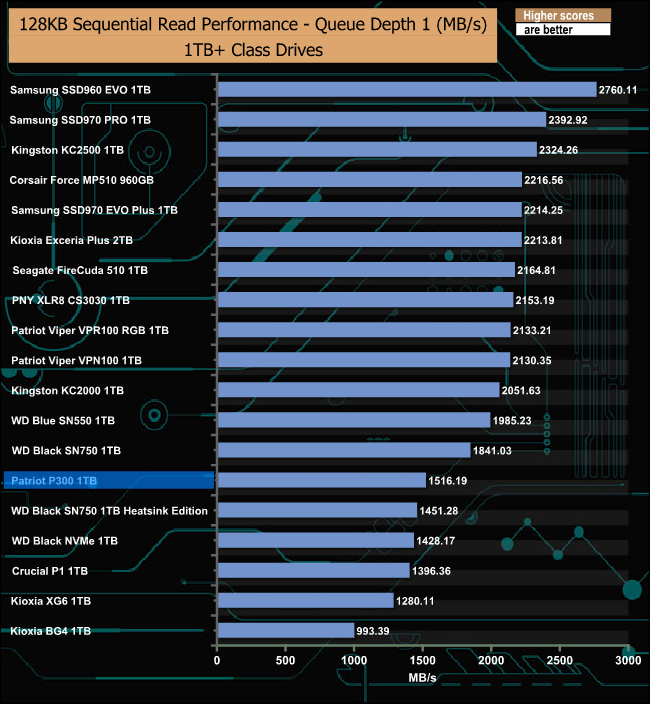

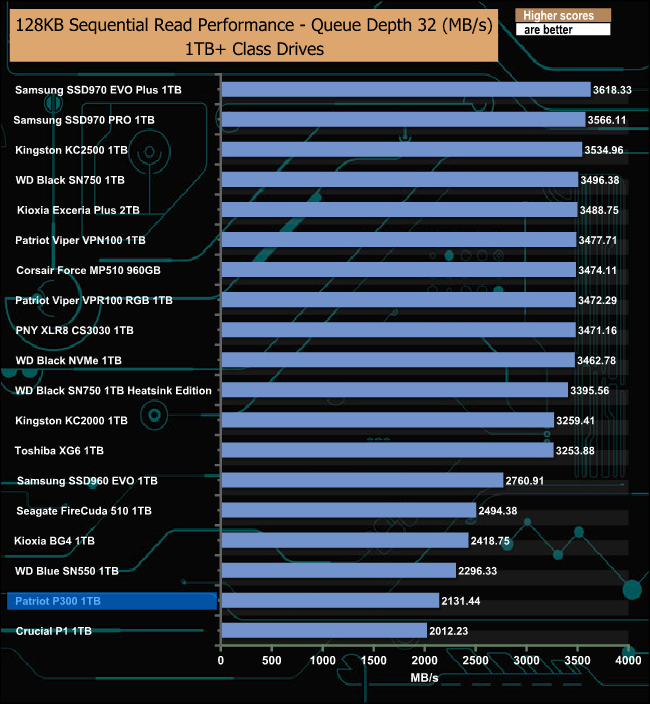

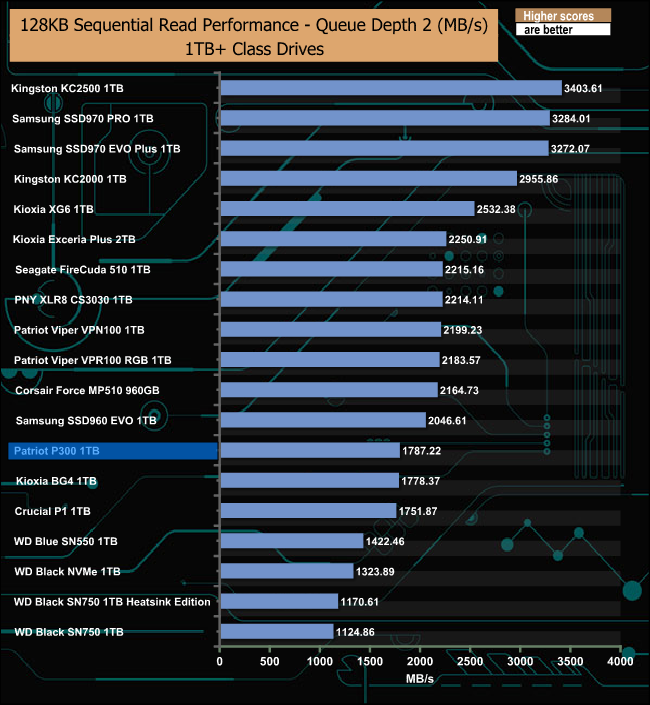

128KB Sequential Read Performance v QD

The P300's Sequential read performance falls away from its nearest competitors as the queue depth deepens.

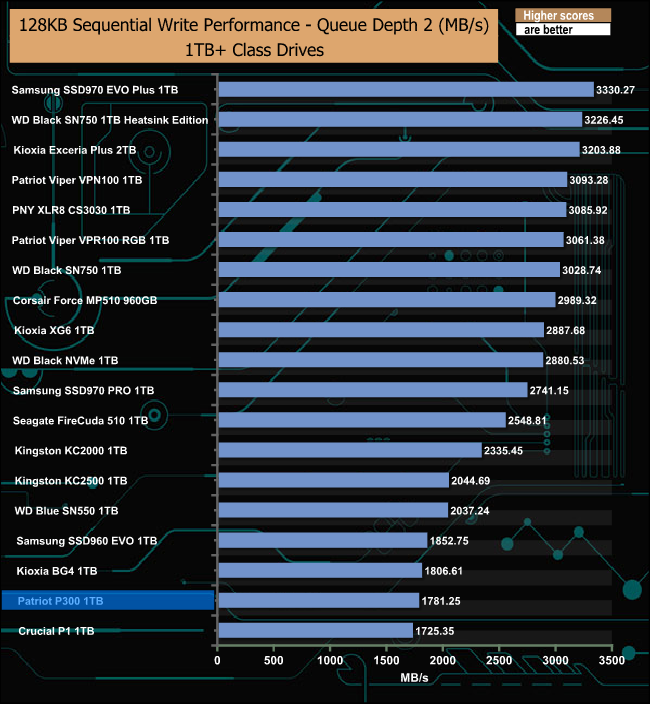

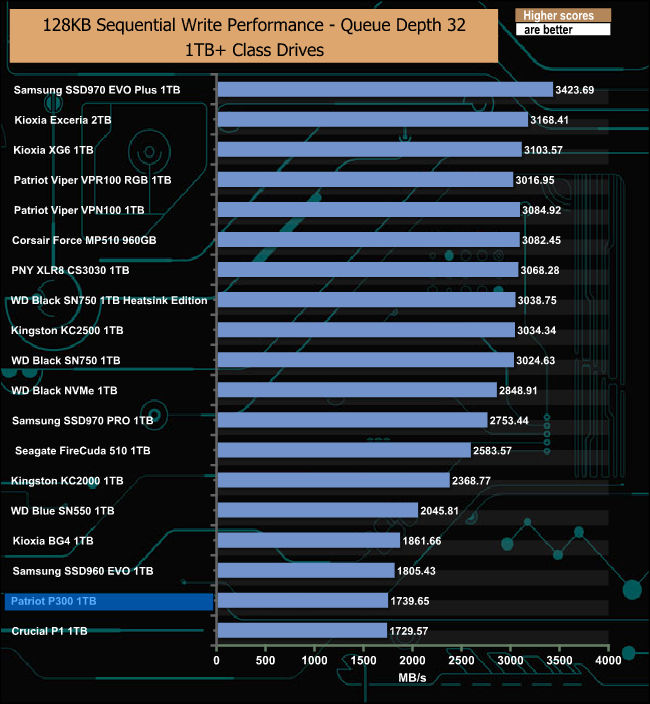

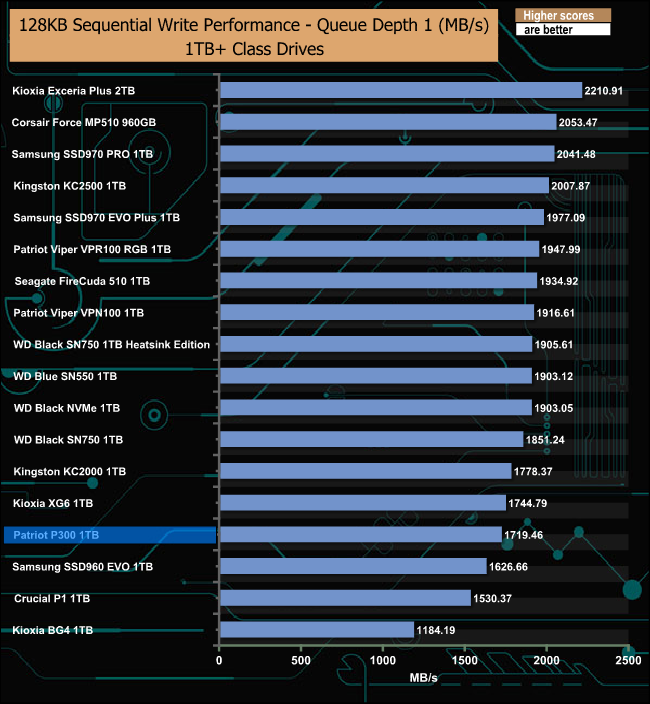

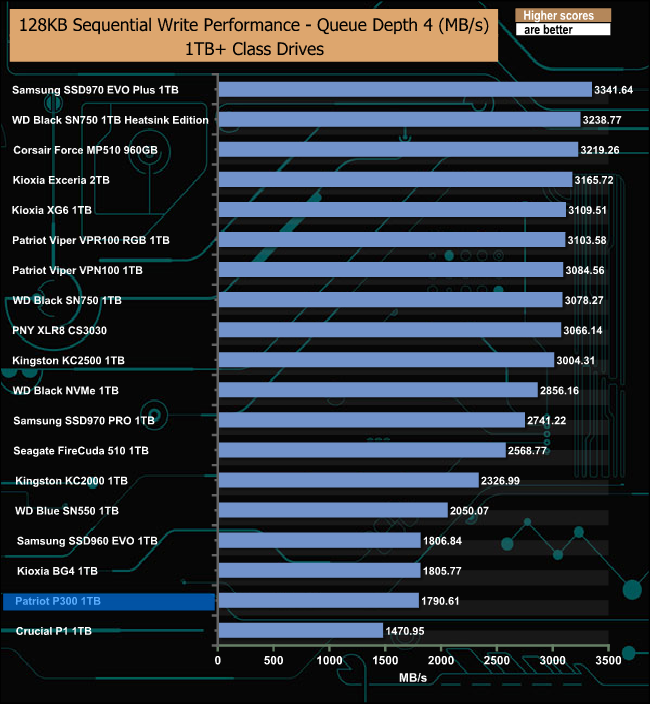

128KB Sequential Write Performance v QD

Not only are the tested Sequential write results faster than the official figure of 1,650MB/s it also is very consistent through all the tested queue depths.
