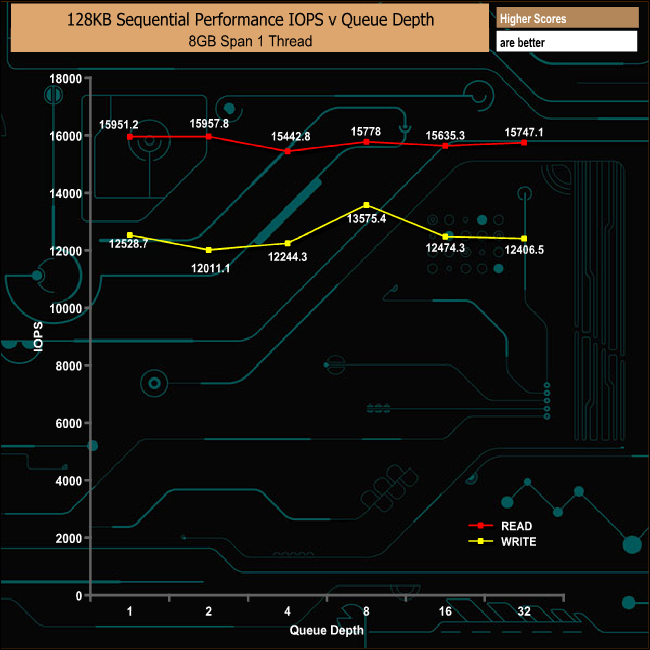

With our Sequential read/write test we couldn't quite match the official maximum read figure of 2,100MB/s at 2,068MB/s but we bettered the official write score of 1,600MB/s, the test runs producing 1,779.36MB/s.

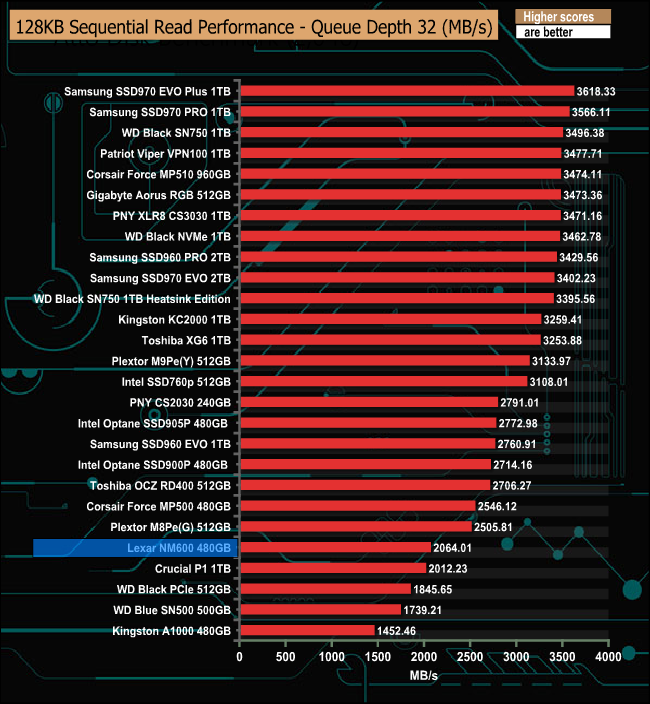

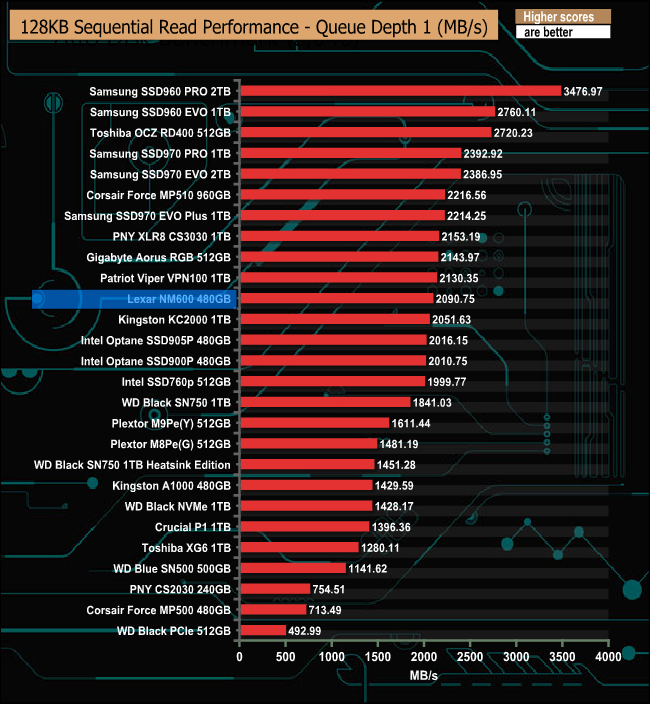

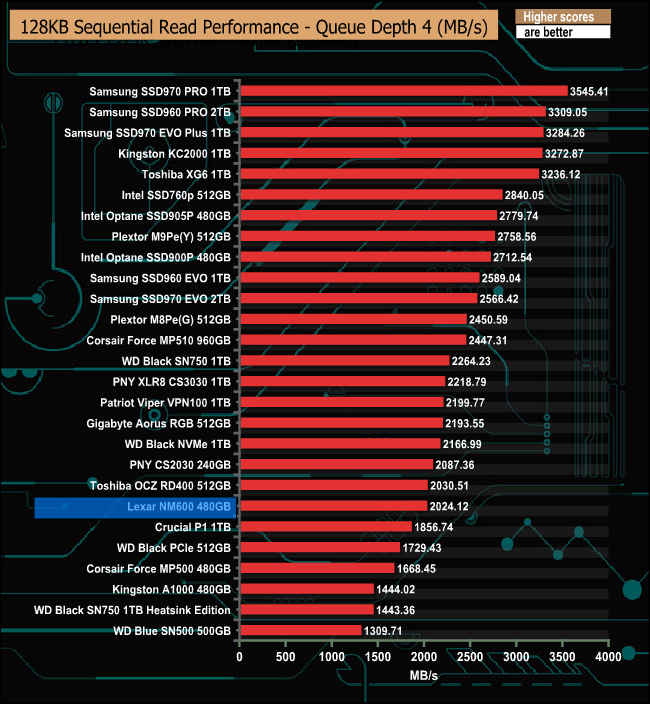

128KB Sequential Read Performance v QD Compared.

Up to a QD of 4, the NM600 hovers around mid-table for Sequential reads, but as the queue depth deepens the drive drops down the table.

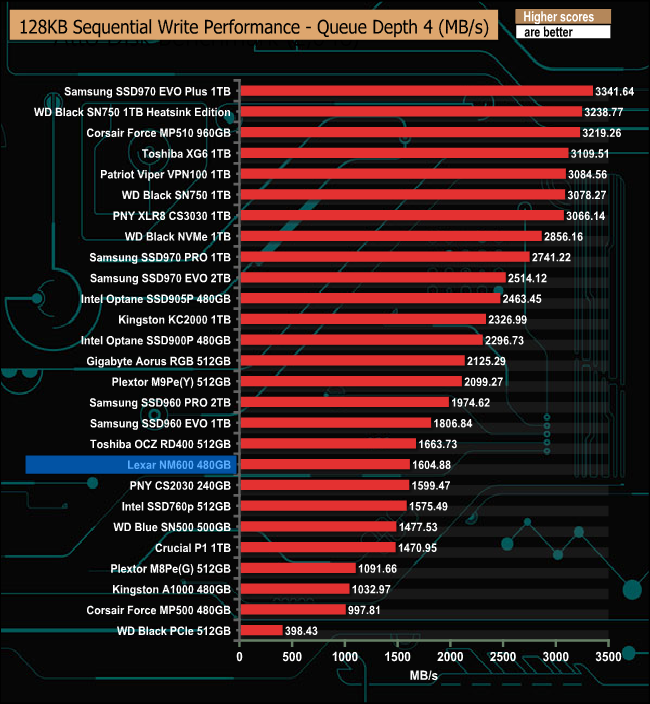

128KB Sequential Write Performance v QD Compared

The Lexar NM600's Sequential write performance remains pretty consistent throughout the tested queue depths.
