The PCMark 10 Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The benchmark is designed to measure performance of fast system drives using the SATA bus at the low end and devices connected via PCI Express at the high end.
The goal of the benchmark is to show meaningful real-world performance differences between fast storage technologies such as SATA, NVMe, and Intel’s Optane. The Full System Drive Benchmark uses 23 traces, running 3 passes with each trace. It typically takes an hour to run.
Traces used:
Booting Windows 10.
Adobe Acrobat – starting the application until usable.
Adobe Illustrator – starting the application until usable Adobe Premiere Pro – starting the application until usable.
Adobe Photoshop – starting the application until usable.
Battlefield V – starting the game until the main menu.
Call of Duty Black Ops 4 – starting the game until the main menu.
Overwatch – starting the game until main menu.
Using Adobe After Effects.
Using Microsoft Excel.
Using Adobe Illustrator.
Using Adobe InDesign.
Using Microsoft PowerPoint.
Using Adobe Photoshop (heavy use).
Using Adobe Photoshop (light use).
cp1 Copying 4 ISO image files, 20 GB in total, from a secondary drive to the target drive (write test).
cp2 Making a copy of the ISO files (read-write test).
cp3 Copying the ISO to a secondary drive (read test).
cps1Copying 339 JPEG files, 2.37 GB in total, to the target drive (write test).
cps2 Making a copy of the JPEG files (read-write test).
cps3 Copying the JPEG files to another drive (read test).

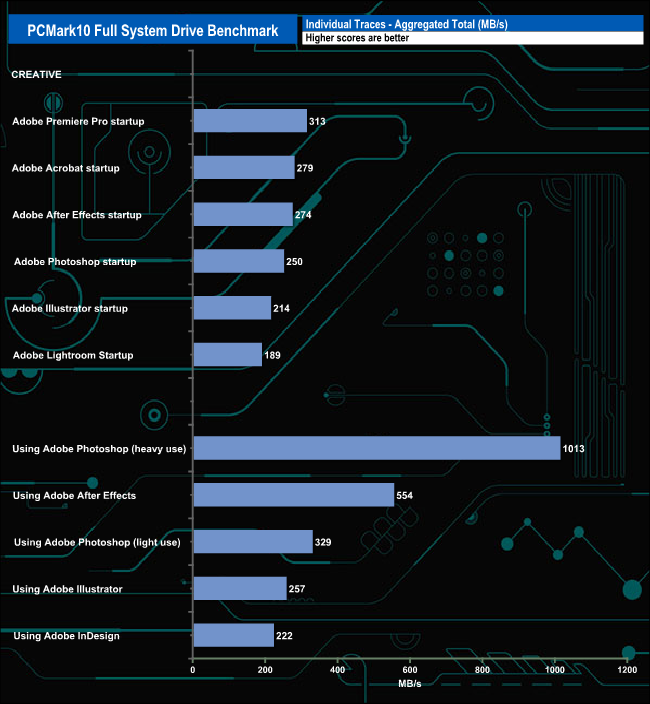

Klevv's 2TB CRAS C925 handled the demands of the PCMark10 Full System Drive Benchmark pretty well. Tested with the six Adobe startup traces it produced an average of 253MB/s with the fastest being the Premiere Pro test trace at 313MB/s, with the Lightroom trace the slowest at 189MB/s.
As is normal with the usage traces it was the Photoshop heavy usage trace that produced the best result of 1,103MB/s, with the InDesign trace being the slowest at 222MB/s. For the five usage traces the drive averaged 475MB/s.

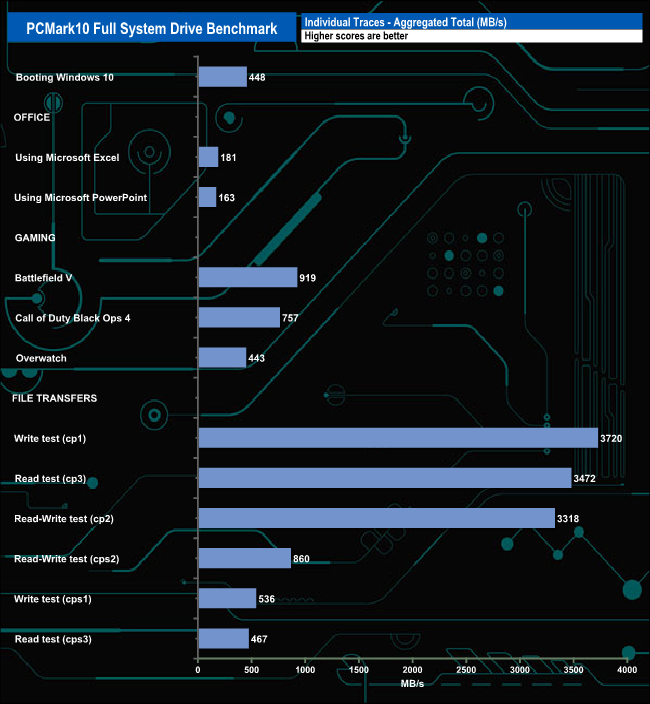

The three gaming traces produced an average result of 706MB/s, the fastest being Battlefield V at 919MB/s. Next came Call Of Duty Black Ops 4 at 757MB/s followed by Overwatch at 443MB/s,
When it came to the file transfers, the fastest was the cp1 Write test at 3,720MB/s with the drive averaging 2,062MB/s for the six file transfer tests.
With an overall bandwidth figure of 498.02MB/s, the 2TB Klevv CRAS C925 sits in a mid-table position just behind Kingston's KC3000 drive.
