The 3DMark Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance.

Traces used:

Battlefield V
Loading Battlefield™ V from launch to the main menu.

Call of Duty Black Ops 4
Loading Call of Duty®: Black Ops 4 from launch to the main menu.

Overwatch
Loading Overwatch® from launch to the main menu.

Game Move
Copying the Steam folder for Counter-Strike®: Global Offensive from an external SSD to the system drive.

Game Recording
Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch®.

Installing Game
Installing The Outer Worlds® from the Epic Games Launcher.

Game Saving
Saving progress in The Outer Worlds game.

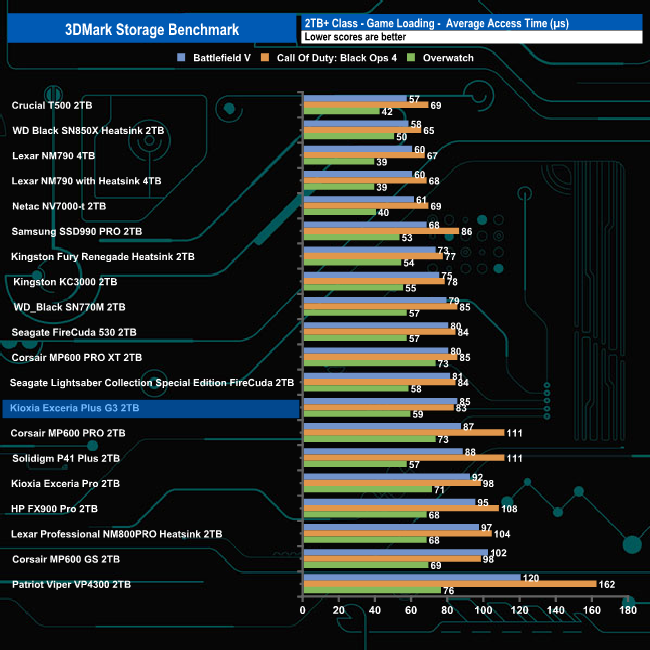

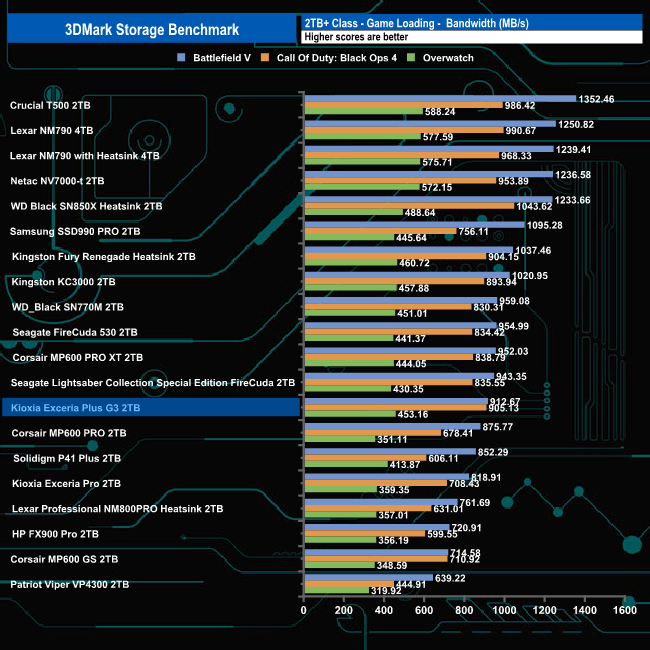

When tested with 3DMark’s Storage Test, the Exceria Plus G3 produced an average game loading bandwidth figure for the three games of 756.98MB/s with an overall average access time for the three of 75µs.

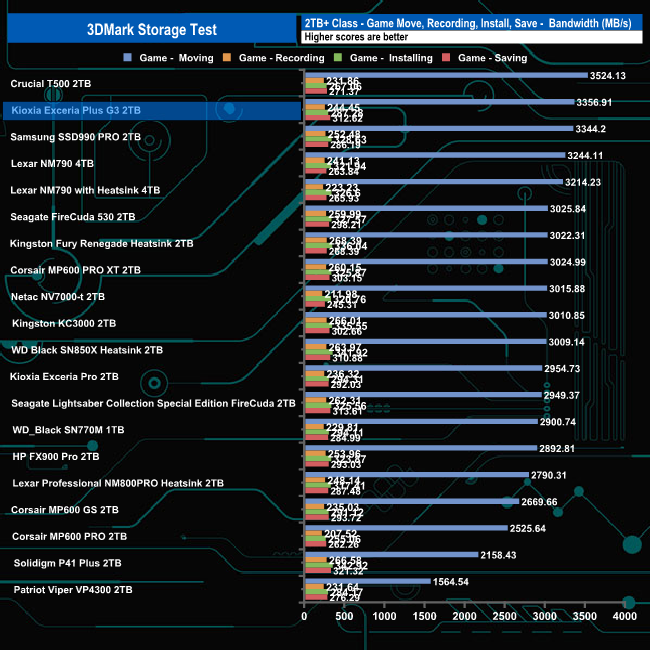

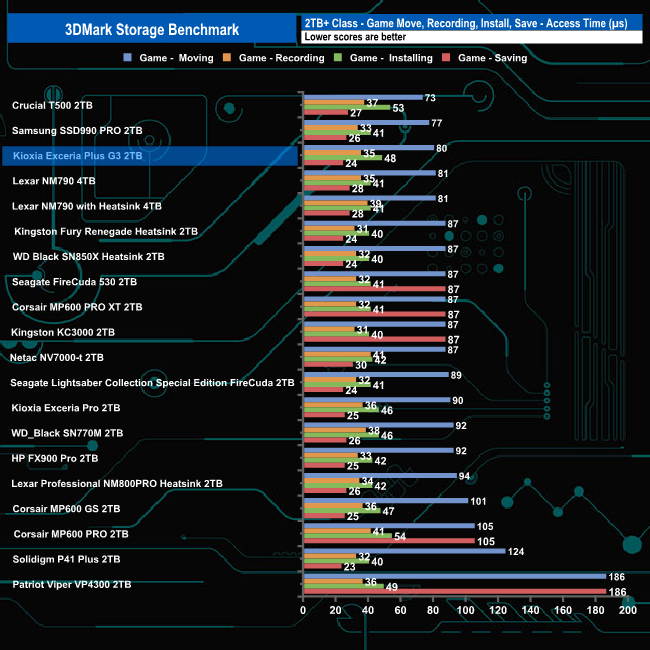

In the game moving, recording, installing and saving test traces the drive averaged 1,050.20MB/s for the four tests, the second fastest we've seen to date in this test for a Gen 4 drive. For this group of tests, the drive had an average access time of 47µs.

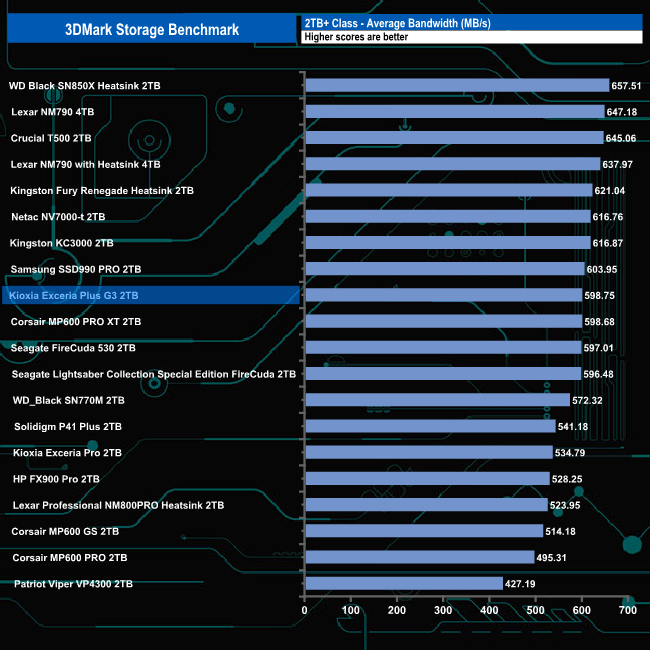

The average bandwidth figure for the 2TB Kioxia Exceria Plus G3 for the complete benchmark run was 598.75MB/s which sees it in the middle section of the results chart.
