The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.
Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host adapters, hard drives and SSD drives. Notice that ATTO products will consistently provide the highest performance to your storage.

We are using version 4.0 for our NVMe disk tests.

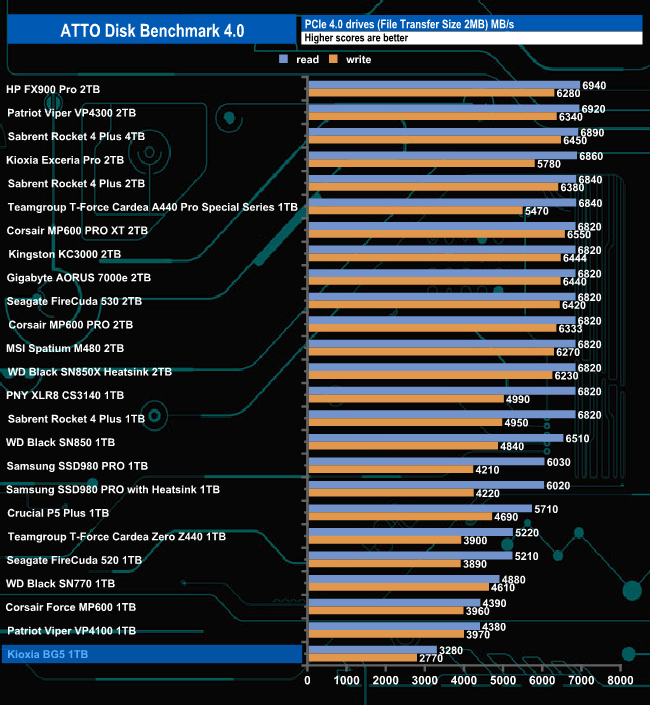

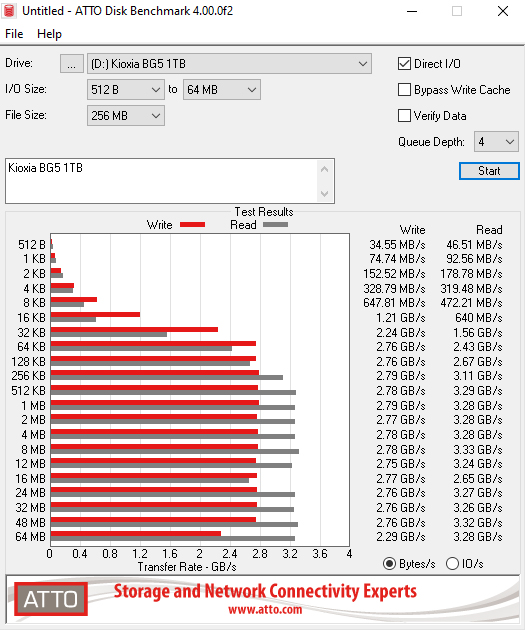

Kioxia rate the read/write Sequential performance of the 1TB BG5 as up to 3,500MB/s and 2,900MB/s respectively. Using the ATTO benchmark we couldn't quite hit those maximums with test result figures of 3,280MB/s for reads and 2,770MB/s for writes.
