Kioxia BG5 1TB SSD Review

1. Introduction2. Kioxia BG5 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark15. Performance Stability16. Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

We used CrystalDiskMark 8 to test the random performance of the drive at lower queue depths (QD1 – QD8 where most of the everyday workloads occur) using 1 to 4 threads.

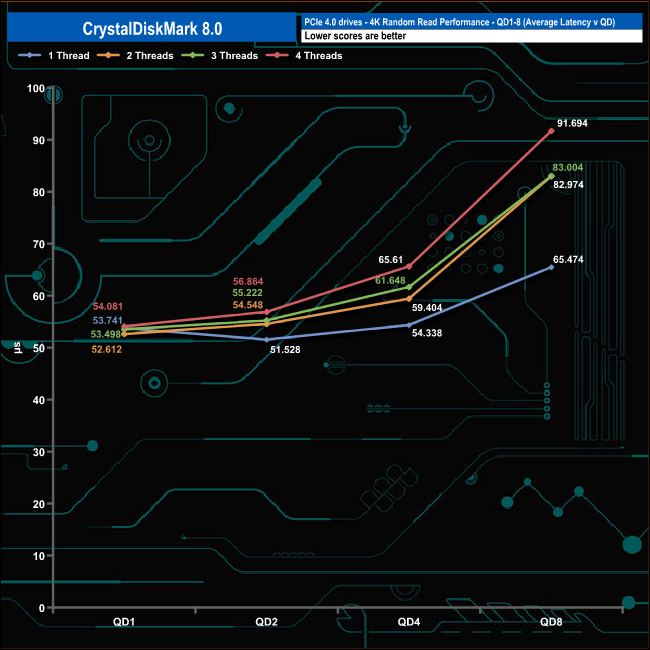

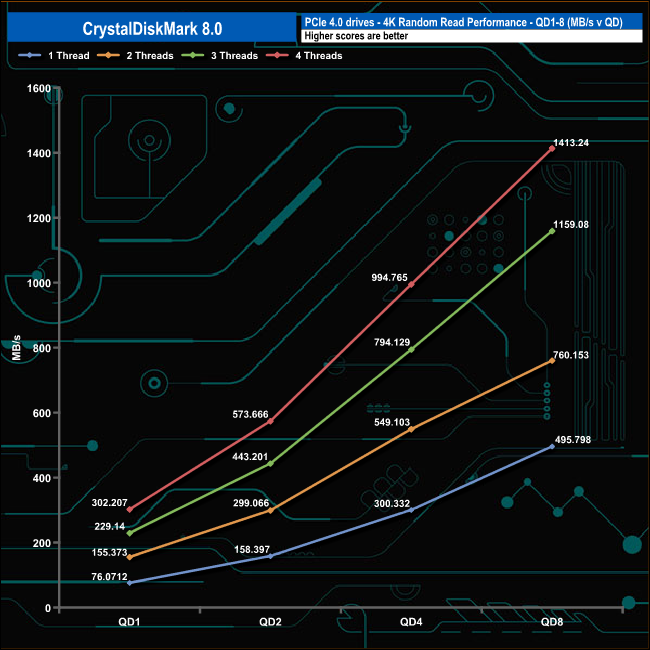

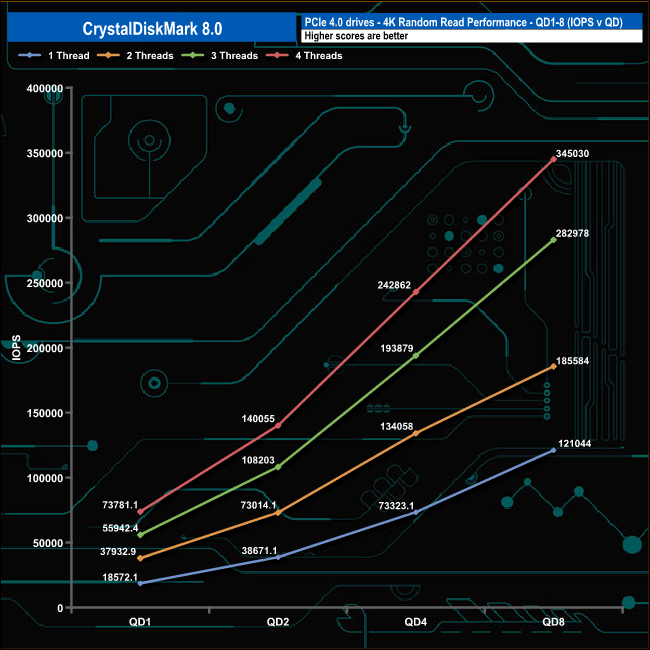

4K Random Read Performance QD1-QD8

In our lower queue depth, 4K random read tests, the performance increases steadily as the queue depth deepens for each thread. At QD1 the performance ranged from a low point of 18,572 IOPS (76.07MB/s) for a single thread up to 73,781 IOPS (302.30MB/s) for four threads. At QD8 a single thread produced 121,044 IOPS (495.79MB/s) and four threads, 345,030 IOPS (1,413.24MB/s).

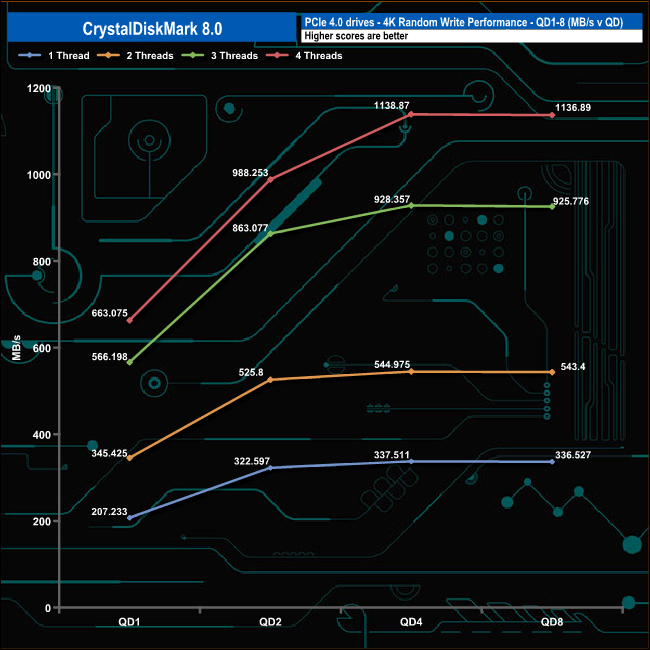

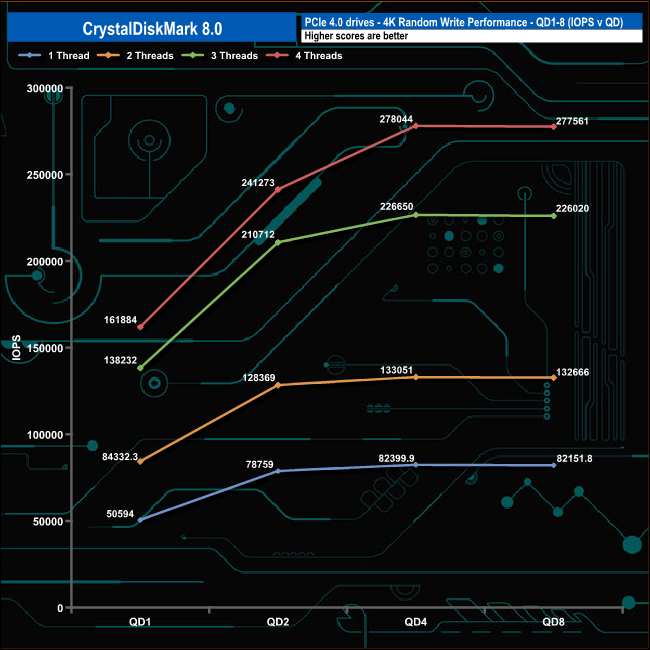

4K Random Write Performance QD1-QD8:

In the 4K write test both one and two-thread performance begins to slow from QD2 onwards while using three and four threads sees the slow down happening from QD4.
