To test the real-life performance of a drive we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of the drive reading from & writing to a 256GB Samsung SSD850 PRO.

Transfer Details

100GB data file.
60GB iso image.
60GB Steam folder – 29,521 files.
50GB File folder – 28,523 files.
12GB Movie folder – (15 files – 8 @ .MKV, 4 @ .MOV, 3 @ MP4).
10GB Photo folder – (304 files – 171 @ .RAW, 105 @ JPG, 21 @ .CR2, 5 @ .DNG).
10GB Audio folder – (1,483 files – 1479 @ MP3, 4 @ .FLAC files).
5GB (1.5bn pixel) photo.
BluRay Movie – 42GB.
21GB 8K Movie demos – (11 demos)
16GB 4K Raw Movie Clips – (9 MP4V files).
4.25GB 3D Printer File Folder – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).
1.5GB AutoCAD File Folder (80 files – 60 @ .DWG and 20 @.DXF).

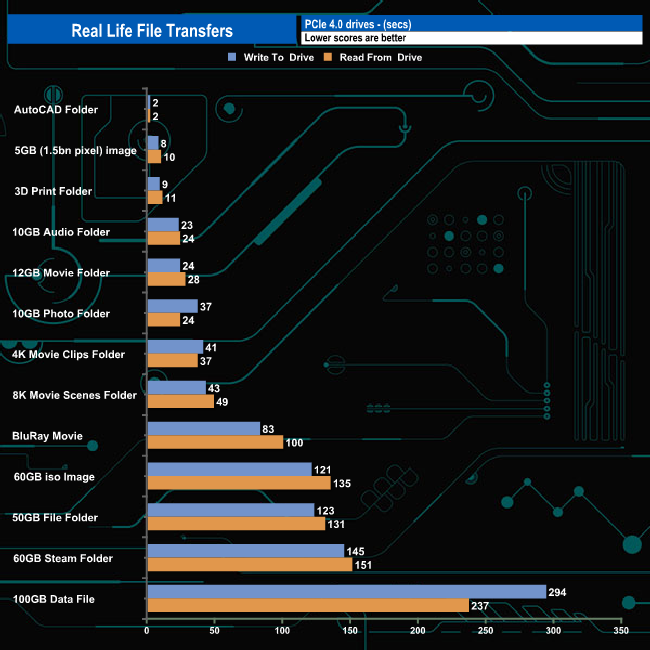

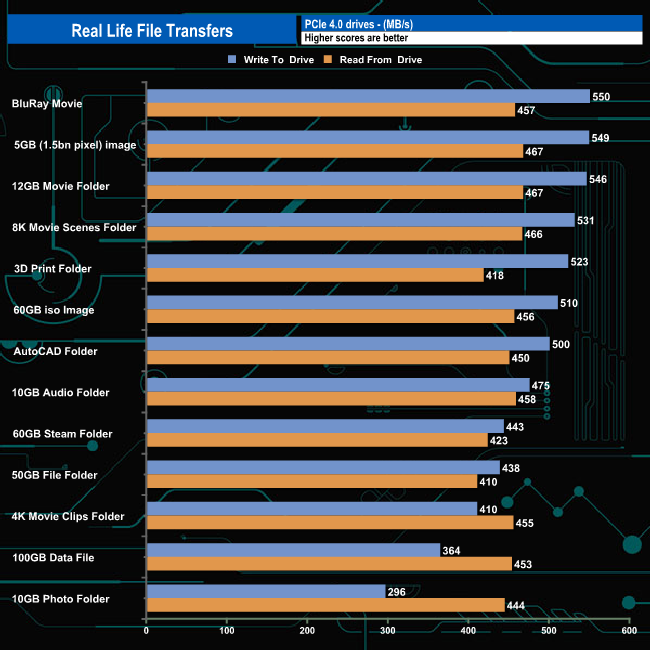

In our real-life transfer tests, the drive averaged 539MB/s when writing the larger file-size folders to the drive and 309MB/s when reading the data back. When it came to reading and writing the folders containing smaller bity files the drive was slower when it came to writes, averaging 416MB/s  and faster when it came to reads at 442MB/s.

To get a measure of how much faster PCIe NVMe drives are than standard SATA SSD we use the same files but transfer to and from a 2TB Kioxia Exceria Plus drive:

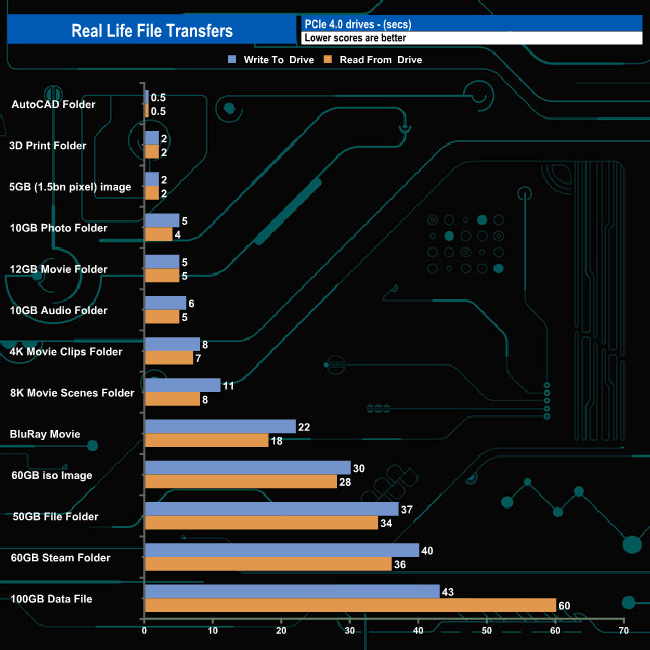

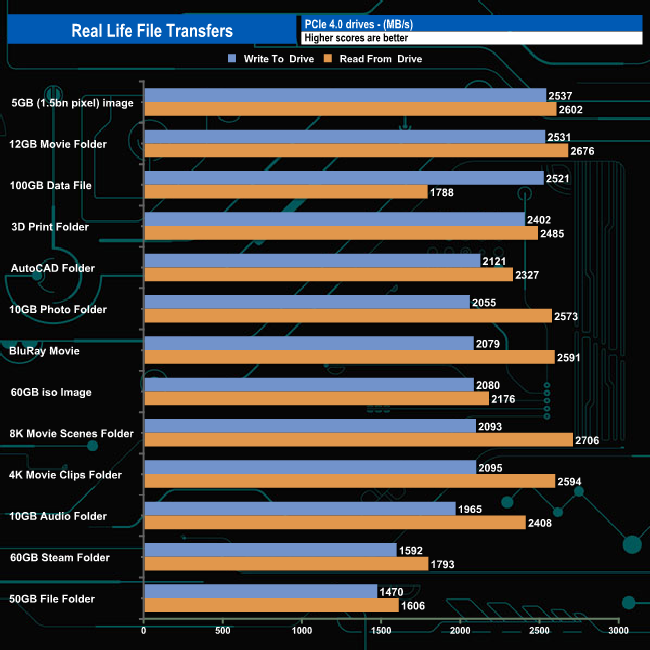

Switching over to an all-NVMe architecture saw, as you can imagine, transfer speeds rocketing upwards. The NV2 averaged 2,118MB/s for writes and 2,332MB/s for read for the thirteen file transfers. The fastest write speed was 2,537MB/s for the 5GB image while the fastest read speed came from the 8K Movie Scenes folder at 2,705MB/s.
