Kingston DC450R 3.84TB SSD Review

1. Introduction2. Kingston DC450R 3.84TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. Sustained Sequential Read/Write Performance8. 4KB Random Read/Write Performance9. 4K Random 70/30 Mix Read/Write10. 8KB Random Read/Write Performance11. 8K Random 70/30 Mix Read/Write12. Throughput13. Performance Stability14. Workload Scenarios15. PCMark 10 Full System Drive Benchmark16. Real Life File Testing17. Closing Thoughts18. View All Pages

To test real life performance of a drive we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of drive reading from & writing to a 256GB Samsung SSD850 PRO.

We use the following folder/file types:

• 100GB data file.
• 60GB iso image.
• 60GB Steam folder – 29,521 files.
• 50GB File folder – 28,523 files.
• 12GB Movie folder – (15 files – 8 @ .MKV, 4 @ .MOV, 3 @ MP4).
• 10GB Photo folder – (304 files – 171 @ .RAW, 105 @ JPG, 21 @ .CR2, 5 @ .DNG).
• 10GB Audio folder – (1,483 files – 1479 @ MP3, 4 @ .FLAC files).
• 5GB (1.5bn pixel) photo.
• BluRay Movie – 42GB.
• 21GB 8K Movie demos – (11 demos)
• 16GB 4K Raw Movie Clips – (9 MP4V files).
• 4.25GB 3D Printer File Folder – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).
• 1.5GB AutoCAD File Folder (80 files – 60 @ .DWG and 20 @.DXF).

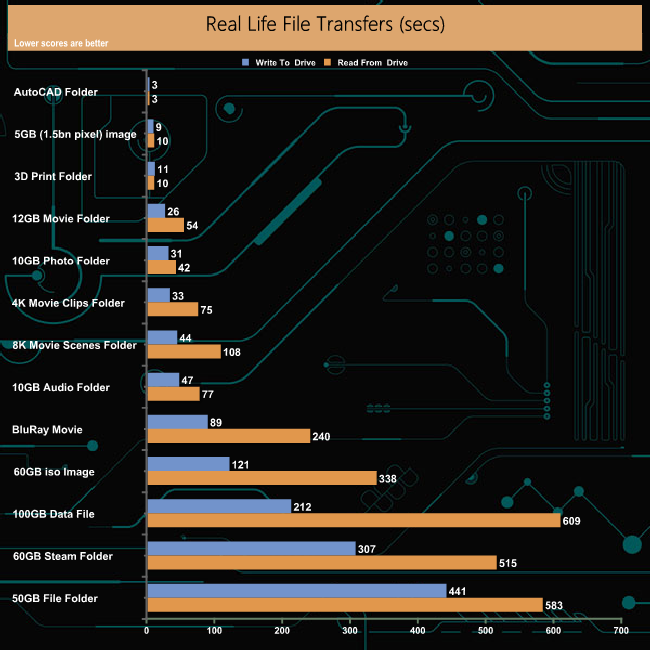

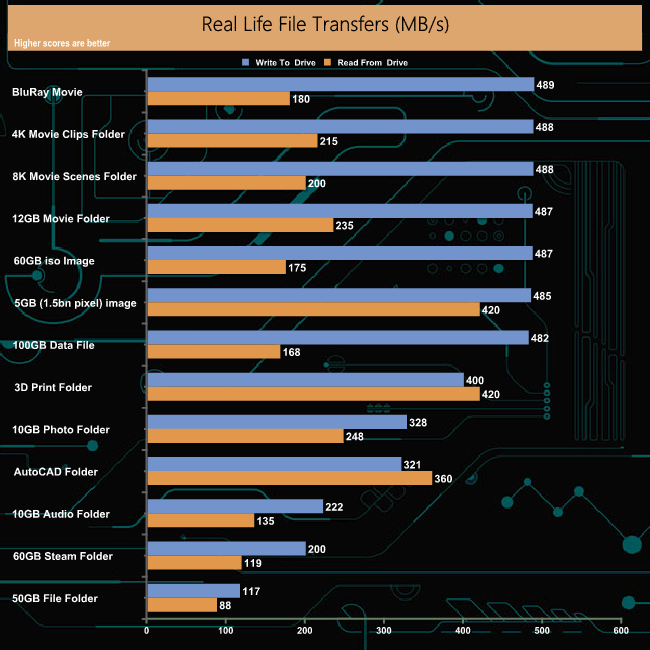

Our real-life file transfer tests posed little problem for the DC450R as it handled most of them very efficiently. As always it’s the 50GB file folder transfer that slows down the drive.
