To test real-life performance of a drive we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of drive reading from & writing to a 256GB Samsung SSD850 PRO.

We use the following folder/file types:

• 100GB data file.
• 60GB iso image.
• 60GB Steam folder – 29,521 files.
• 50GB File folder – 28,523 files.
• 21GB 8K Movie demos.
• 12GB Movie folder – 24 files (mix of Blu-ray and 4K files).
• 11GB 4K Raw Movie Clips (8 MP4V files).
• 10GB Photo folder – 621 files (mix of png, raw and jpeg images).
• 10GB Audio folder – 1,483 files (mix of mp3 and .flac files).
• 5GB (1.5bn pixel) photo.
• Blu-ray movie

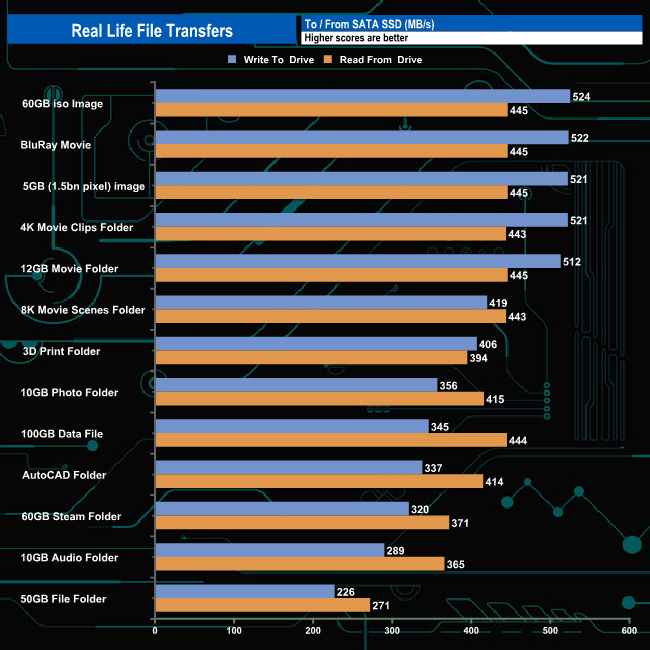

When it came to our real-life file transfer tests the drive averaged 520MB/s for the five fastest write transfers and 446MB/s when reading the data back.

To get a measure of how much faster PCIe NVMe drives are than standard SATA SSD's we use the same files but transfer to and from a 2TB Kioxia Exceria Plus drive:

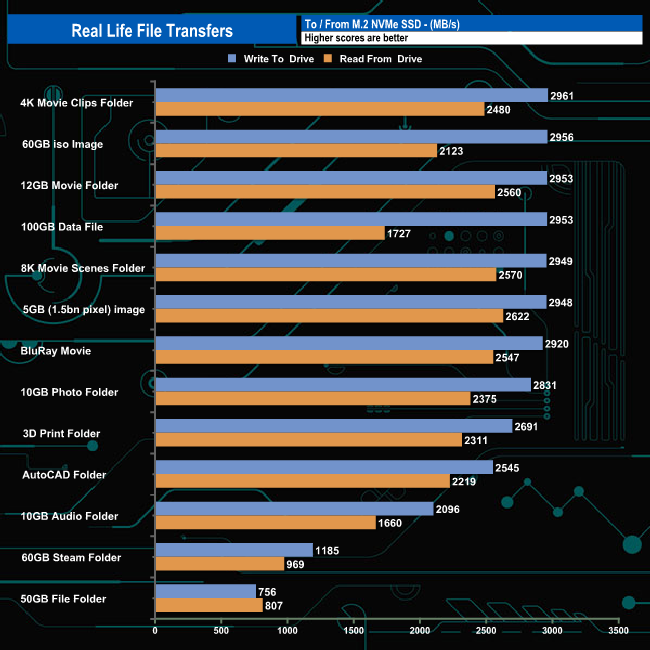

Switching over to transferring files to and from an NVMe drive saw file transfers very close to the 3GB/s mark for seven out of the thirteen tests when it came to writes and well over 2GB/s for nine of the tests when it came to reads.
