The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.

Use ATTO Disk Benchmark to test any manufacturers RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

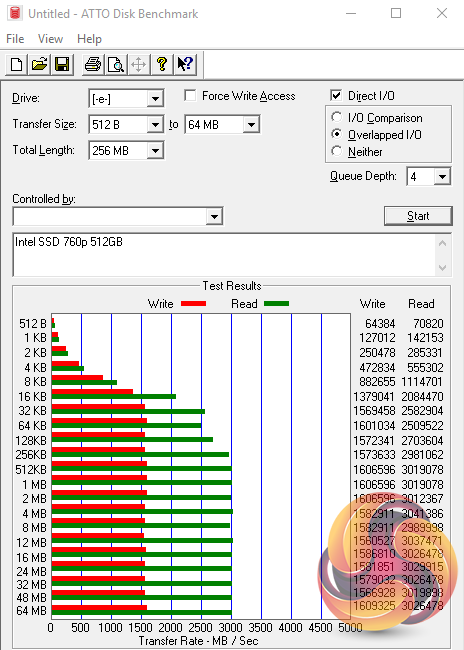

Once again we are upgrading which ATTO version we are using for NVMe drives so have included the result screenshot from the new version.

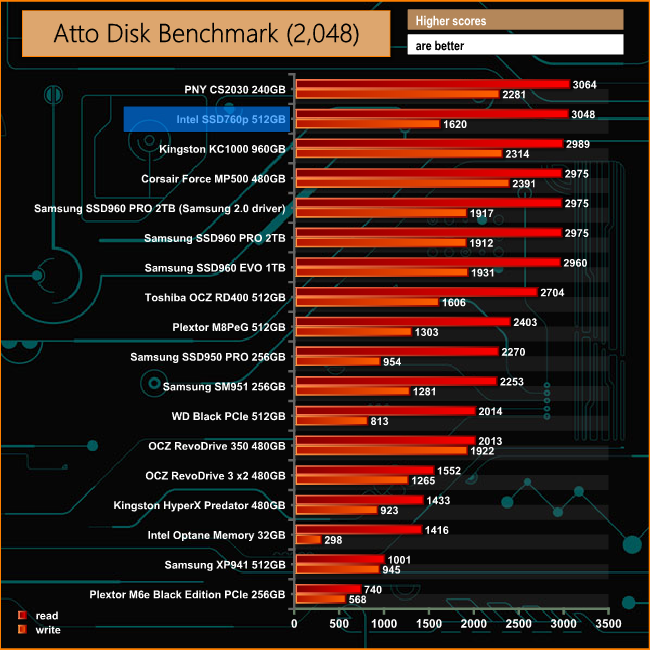

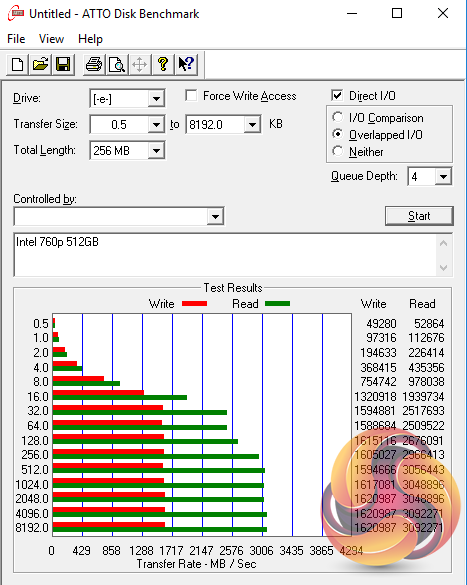

Intel's official Sequential read/write figures for the 512GB SSD760p are up to 3,230MB/s and 1,625MB/s respectively. Using the ATTO benchmark we couldn't quite reach the maximum read figure, the tested drive giving a score of 3,048MB/s. Writes however were bang on the official figure at 1,620 MB/s.
