The 3DMark Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance.

Traces used –

Battlefield V: Loading Battlefield™ V from launch to the main menu.

Call of Duty Black Ops 4: Loading Call of Duty®: Black Ops 4 from launch to the main menu.

Overwatch: Loading Overwatch® from launch to the main menu.

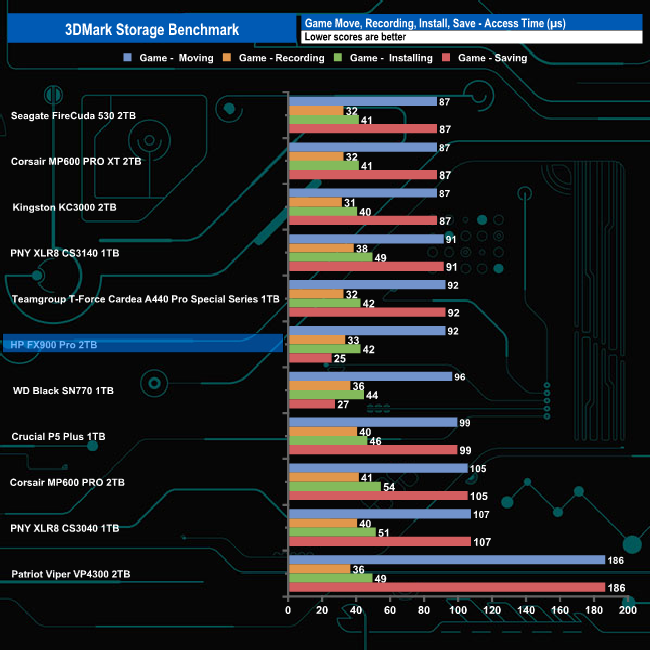

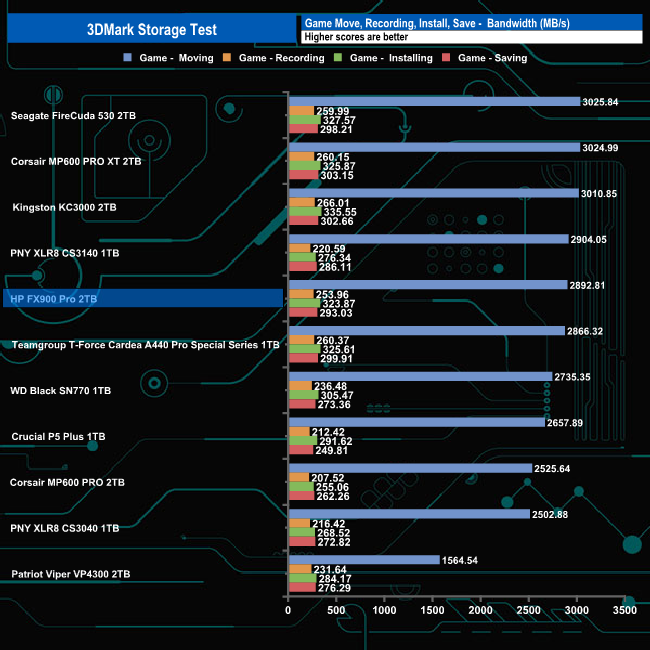

Game Move: Copying the Steam folder for Counter-Strike®: Global Offensive from an external SSD to the system drive.

Game Recording: Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch®.

Installing Game: Installing The Outer Worlds® from the Epic Games Launcher.

Game Saving: Saving progress in The Outer Worlds game.

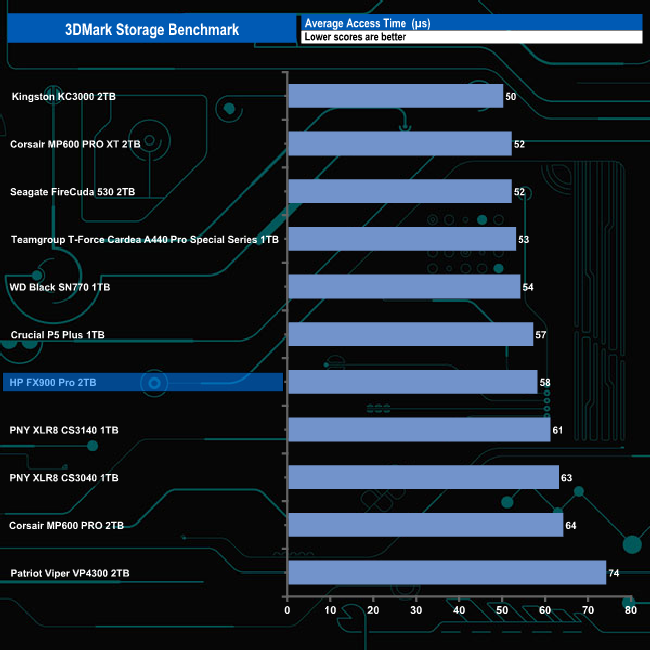

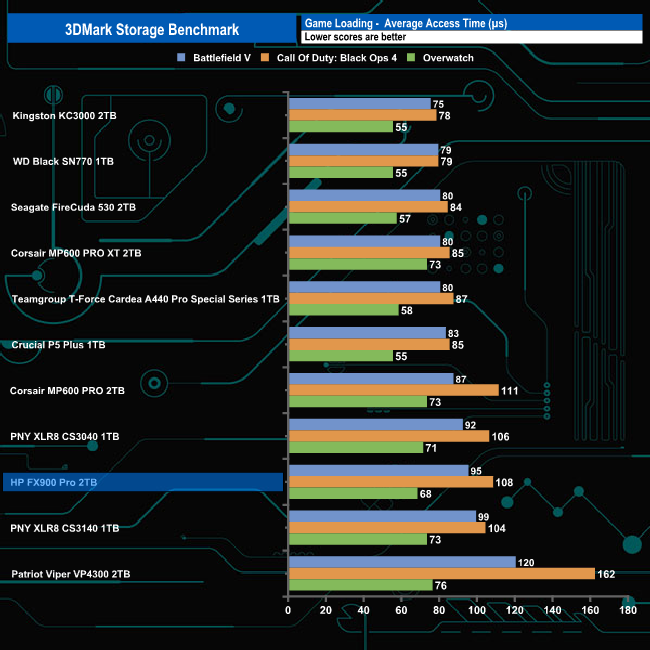

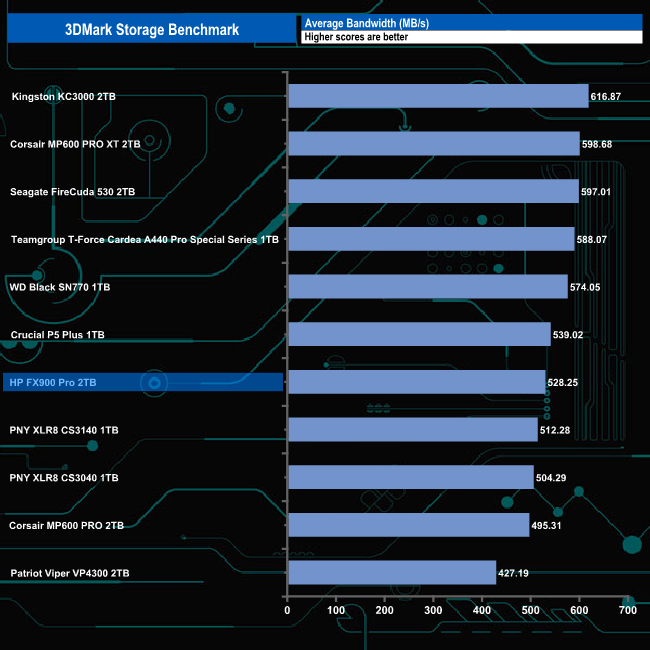

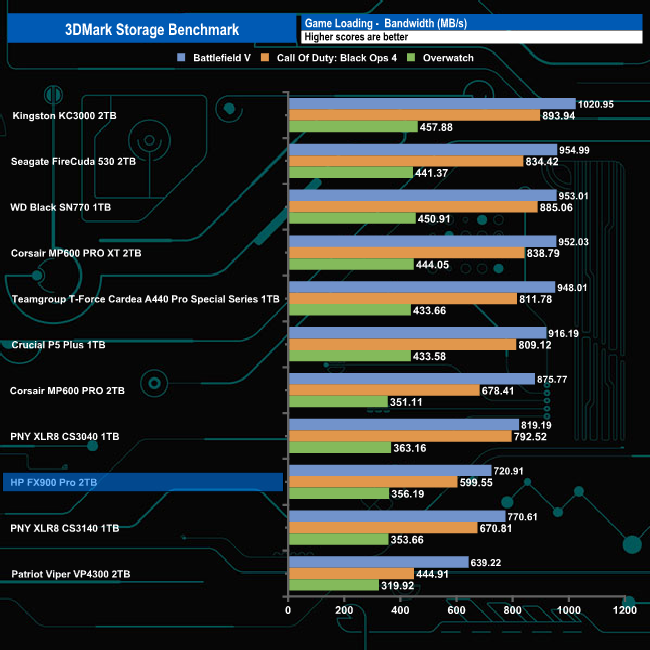

In 3DMark’s Storage Test, the FX900 Pro had an average bandwidth figure of 558.88MB/s for the three game load tests (Battlefield V, Call of Duty: Black Ops 4 and Overwatch) with an average access time of 90.33µs for the same three games. The overall bandwidth figure for the complete test run was 528.25MB/s which puts the drive in the lower portion of the results chart.
