Crucial T500 2TB PCIe Gen4 SSD Review

1. Introduction2. Crucial T500 Pro 2TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Tempretures17. Real Life File Testing18. Closing Thoughts19. View All Pages

The 3DMark Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance.

Traces used:

Battlefield V
Loading Battlefield™ V from launch to the main menu.

Call of Duty Black Ops 4
Loading Call of Duty®: Black Ops 4 from launch to the main menu.

Overwatch
Loading Overwatch® from launch to the main menu.

Game Move
Copying the Steam folder for Counter-Strike®: Global Offensive from an external SSD to the system drive.

Game Recording
Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch®.

Installing Game
Installing The Outer Worlds® from the Epic Games Launcher.

Game Saving
Saving progress in The Outer Worlds game.

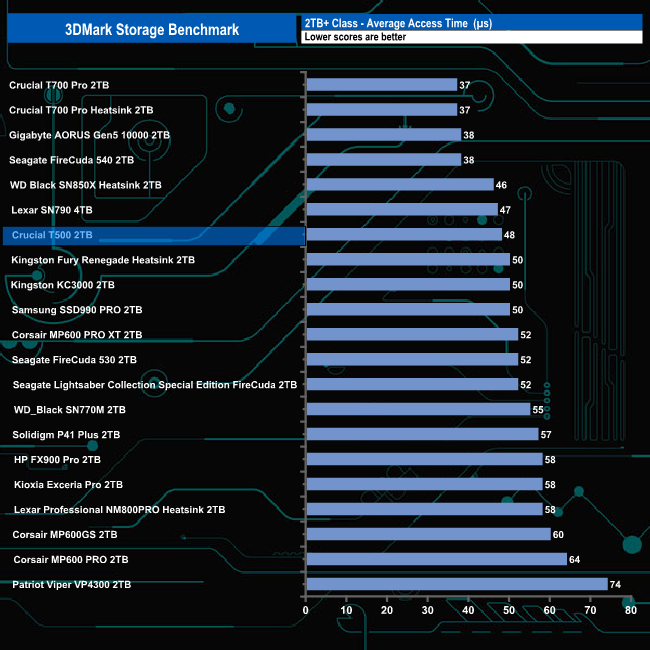

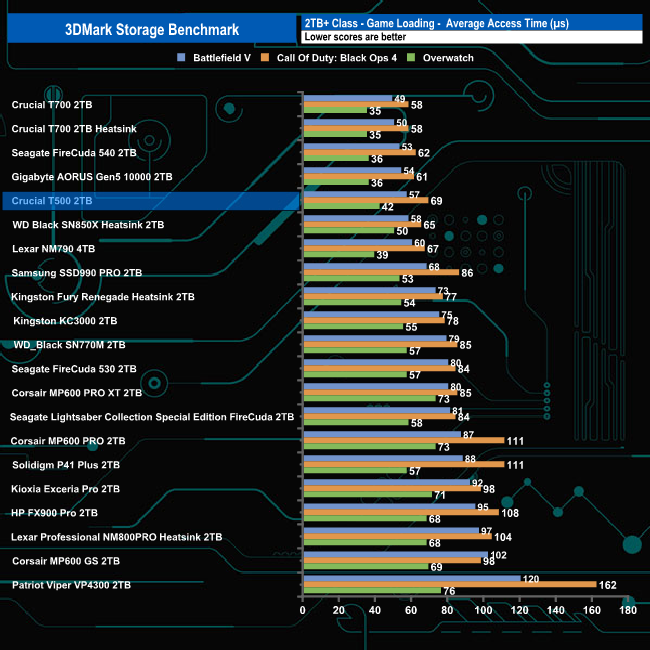

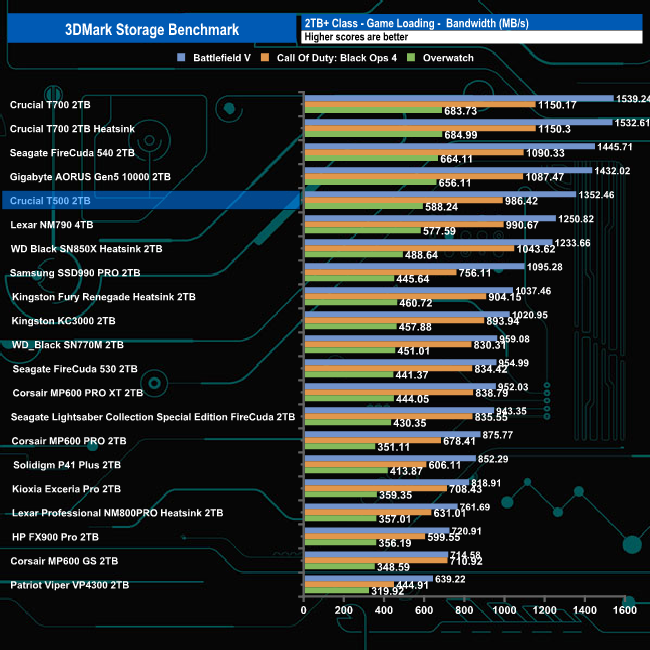

In 3DMark’s Storage Test, the 2TB T500 had an average game loading bandwidth figure for the three games of 975.71MB/s which is the fastest average for a Gen 4 drive with an average access time of 56µs.

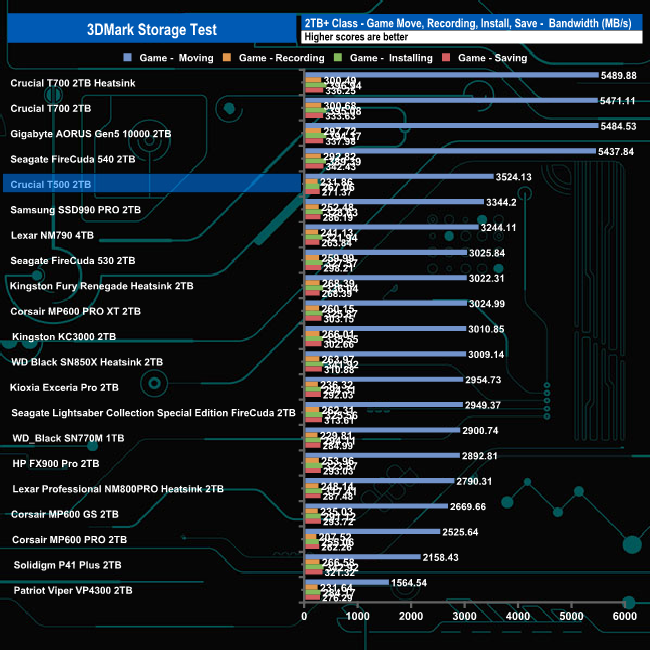

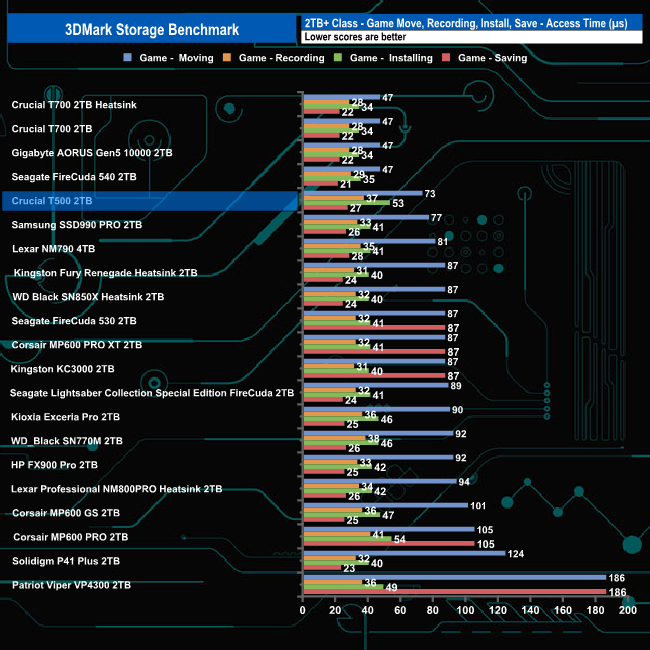

In the game moving, recording, installing and saving test traces the drive averaged 1,342MB/s with an average access time of 47µs for the four tests.

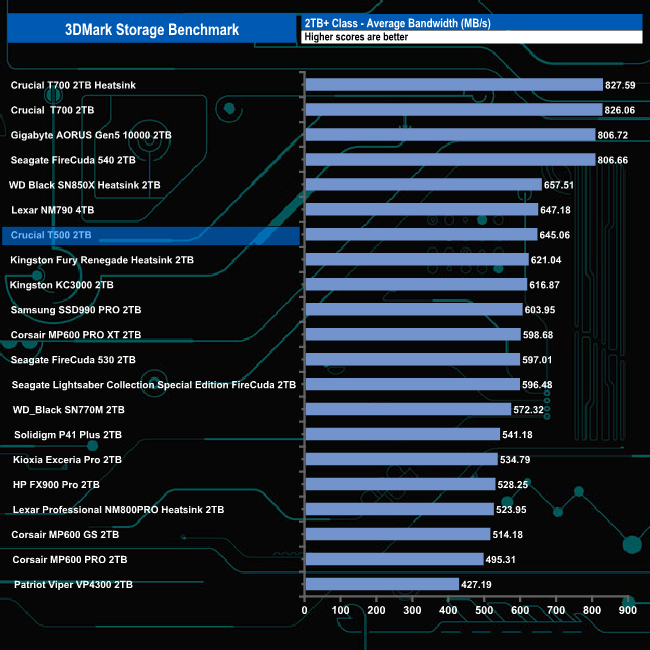

The average bandwidth figure for the drive was 645.08MB/s, the third fastest figure for a Gen 4 drive.
