We test the 4K random write performance of a drive through a range of queue depths. The setup for the tests is listed below.

4K Random Write

Transfer Request Size: 4KB, Outstanding I/O: 1-32.

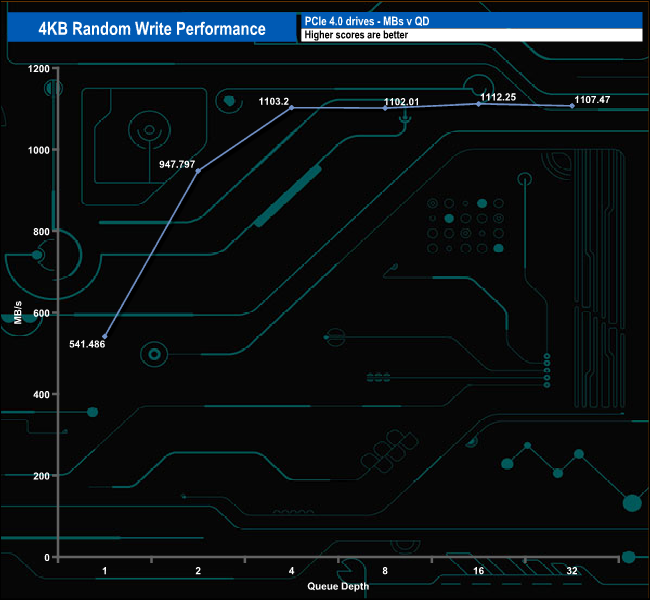

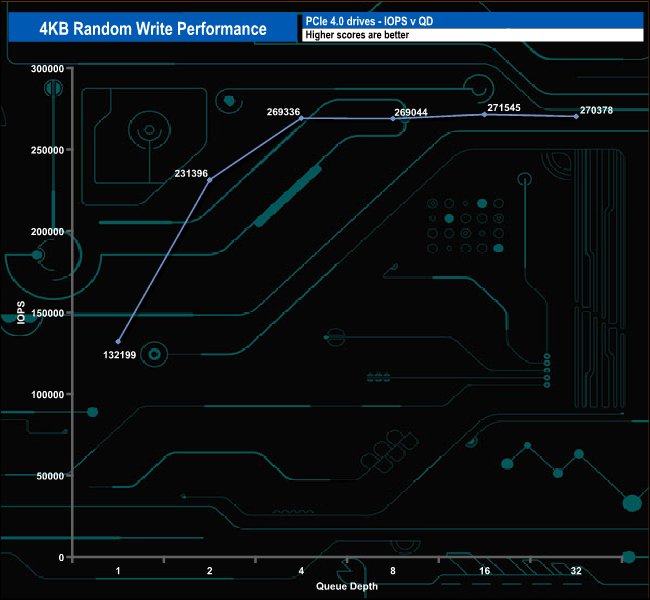

In our four-threaded random write tests, the drive's best performance came at the QD16 mark at 271,545 IOPS before dropping back to finish the test run at 270,378 IOPS. That peak figure is nowhere close to the official maximum for the drive of 700,000 IOPS. Once again we did a quick test using eight threads at QD32 with a result figure of 575,586 IOPS, still short of the maximum.

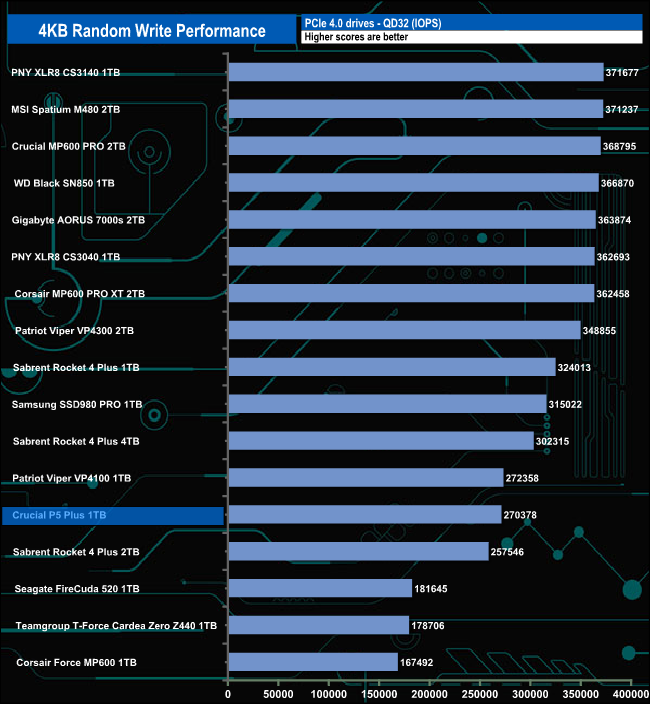

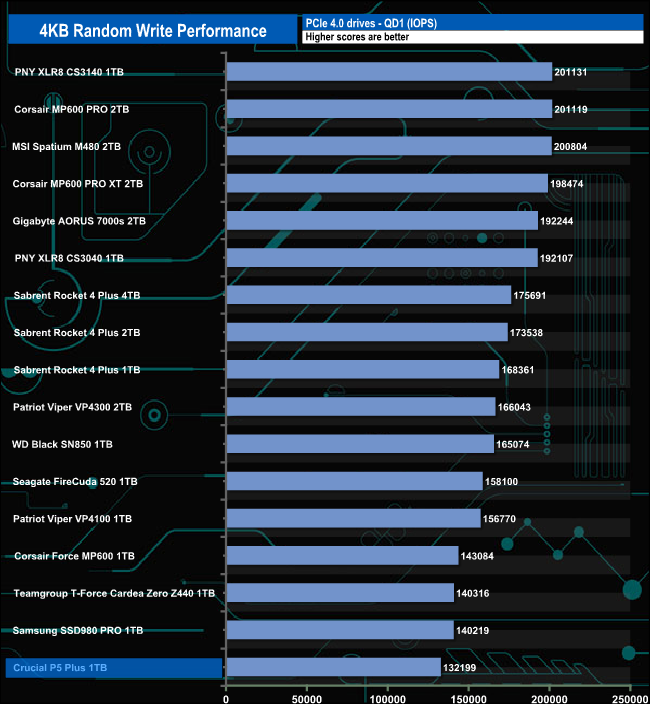

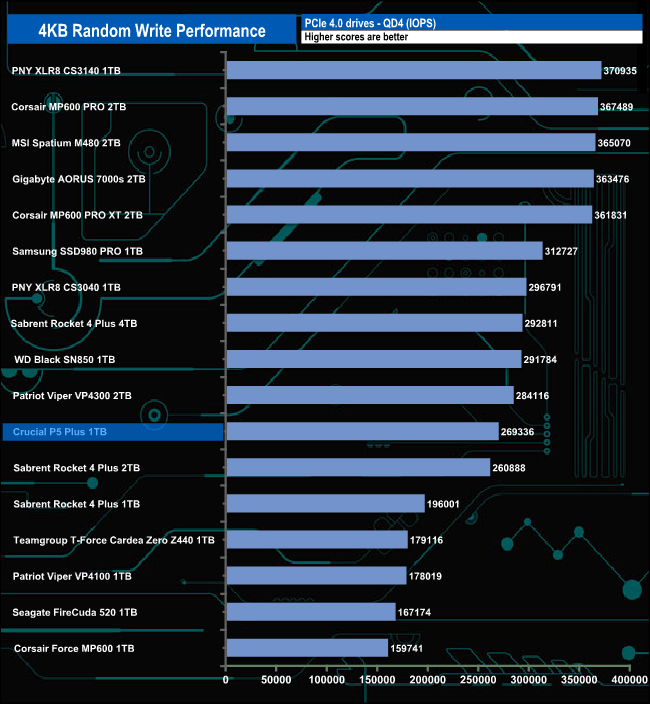

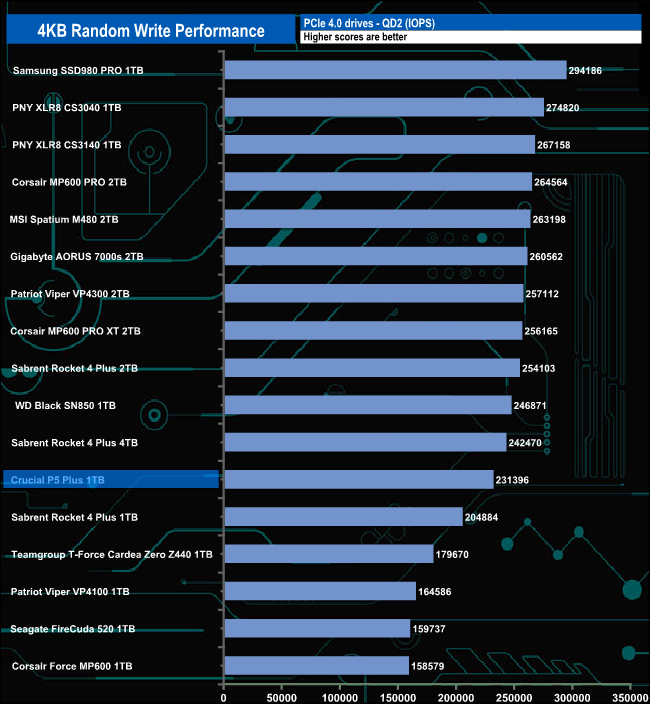

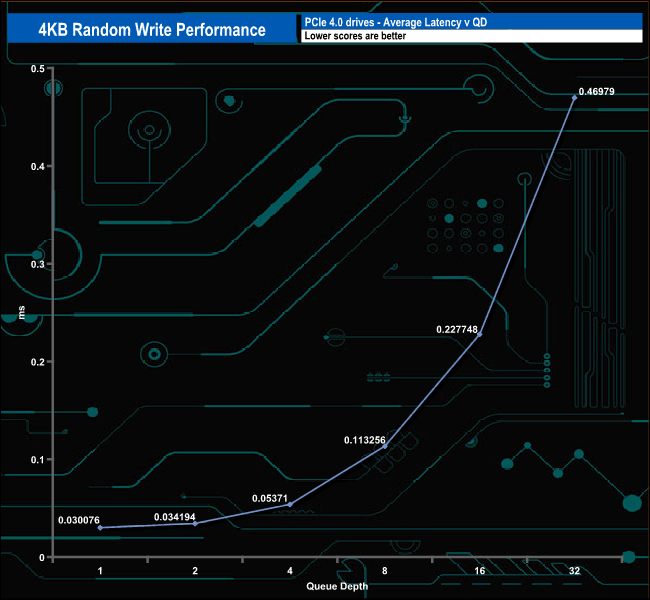

4K Random Write v QD Performance compared.

In a complete opposite to the random read performance, when it comes to random writes, the drive doesn't climb out of the bottom half of the result charts.
