The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage system performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

We are using version 4.1 for our NVMe disk tests.

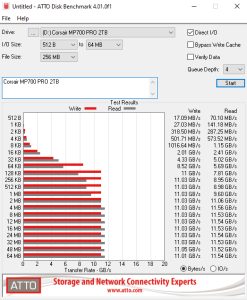

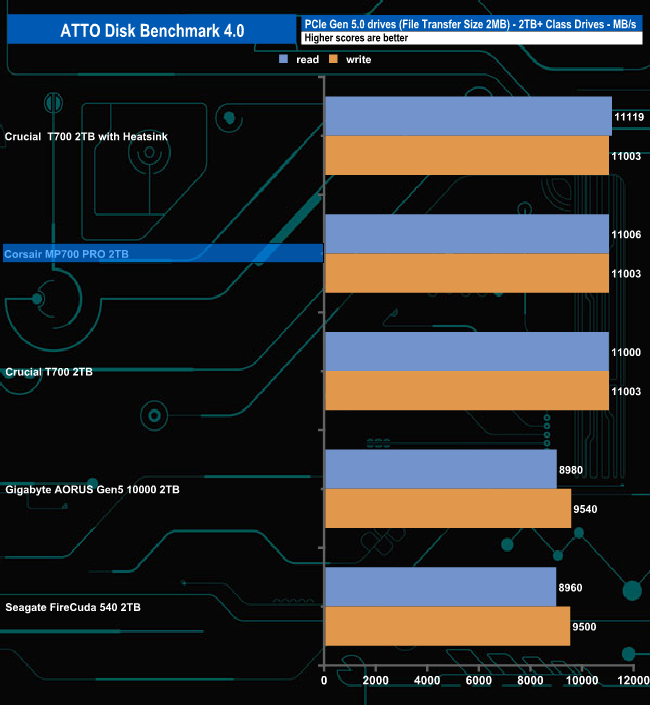

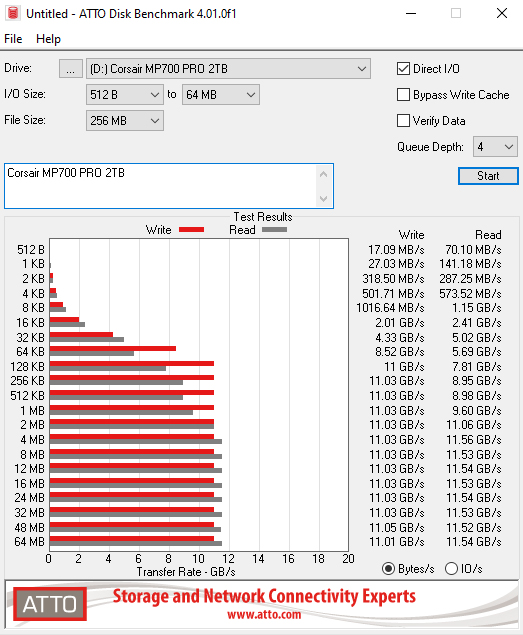

Using the ATTO benchmark we couldn't quite get to the official maximum Sequential figures of up to 12,400MB/s and 11,800MB/s for reads and writes respectively for the MP700 PRO. The best we saw from the drive under testing was 11,006MB/s for reads and 11,003MB/s for writes.

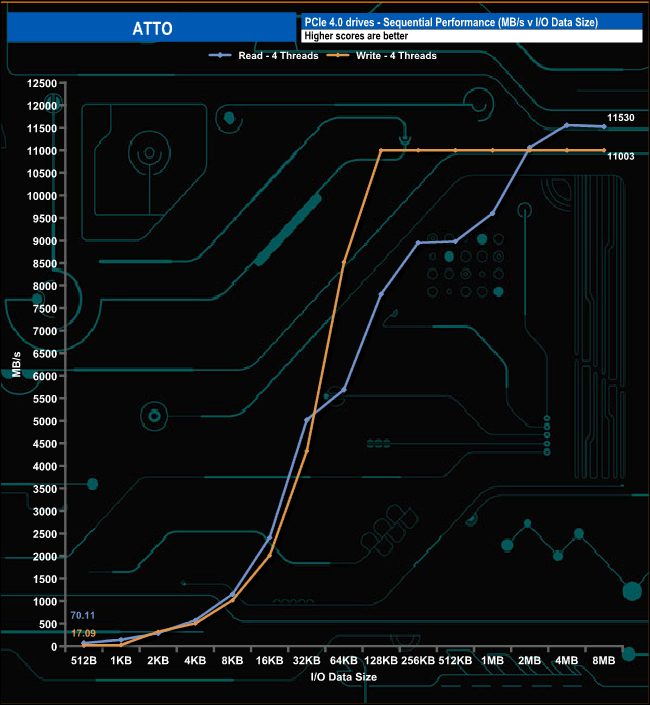

Using the ATTO benchmark, the MP700 PRO write performance peaked at the 256KB mark at 11,003MB/s and plateaued at that point for the rest of the test up to an I/O size of 8MB. The read performance levelled off between the 256KB and 512KB points but then got a second wind, ending up at 11,530MB/s at the 8MB mark.
