The PCMark 10 Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The benchmark is designed to measure the performance of fast system drives using the SATA bus at the low end and devices connected via PCI Express at the high end.

The goal of the benchmark is to show meaningful real-world performance differences between fast storage technologies such as SATA, NVMe, and Intel’s Optane. The Full System Drive Benchmark uses 23 traces, running 3 passes with each trace. It typically takes an hour to run.

Traces used:
Booting Windows 10.
Adobe Acrobat – starting the application until usable.
Adobe Illustrator – starting the application until usable Adobe Premiere Pro – starting the application until usable.
Adobe Photoshop – starting the application until usable.
Battlefield V – starting the game until the main menu.
Call of Duty Black Ops 4 – starting the game until the main menu.
Overwatch – starting the game until main menu.
Using Adobe After Effects.
Using Microsoft Excel.
Using Adobe Illustrator.
Using Adobe InDesign.
Using Microsoft PowerPoint.
Using Adobe Photoshop (heavy use).
Using Adobe Photoshop (light use).
cp1 Copying 4 ISO image files, 20 GB in total, from a secondary drive to the target drive (write test).
cp2 Making a copy of the ISO files (read-write test).
cp3 Copying the ISO to a secondary drive (read test).
cps1Copying 339 JPEG files, 2.37 GB in total, to the target drive (write test).
cps2 Making a copy of the JPEG files (read-write test).
cps3 Copying the JPEG files to another drive (read test).

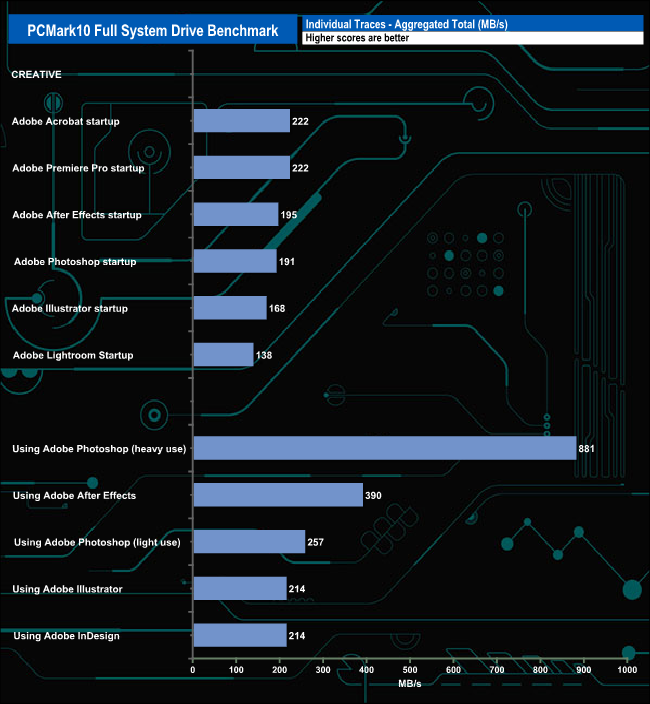

Corsair's MP600 GS dealt with the rigours of the PCMark10’s Full System Drive pretty well. The best result from the Creative set of test traces was the from the Heavy Use Adobe Photoshop trace at 881MB/s. It also handled the Adobe After Effects use test trace reasonably well with a test result of 390MB/s.

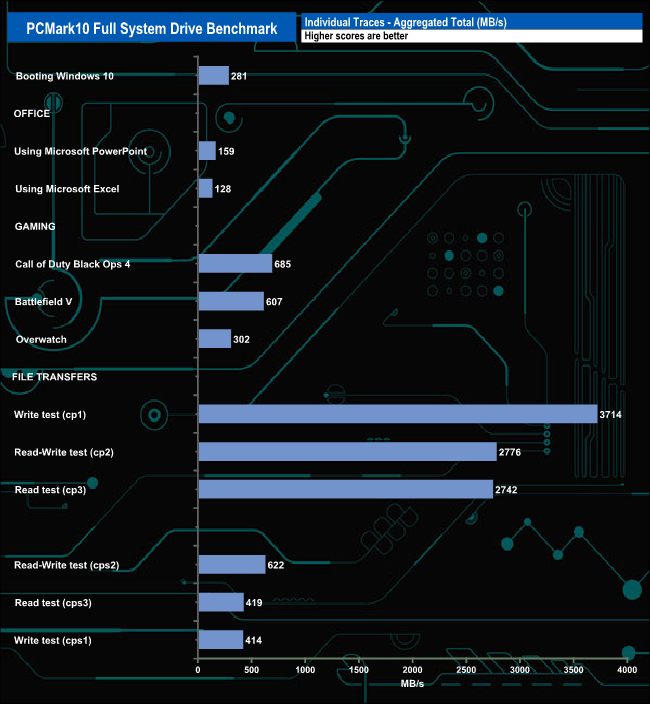

The file transfer tests also produced some good bandwidth figures. The best performance came from the cp1 (write test) at 3,714MB/s backed up results of 2,776MB/s for the cp2 read/write test and 2,742MB/s for the cp3 (read test).

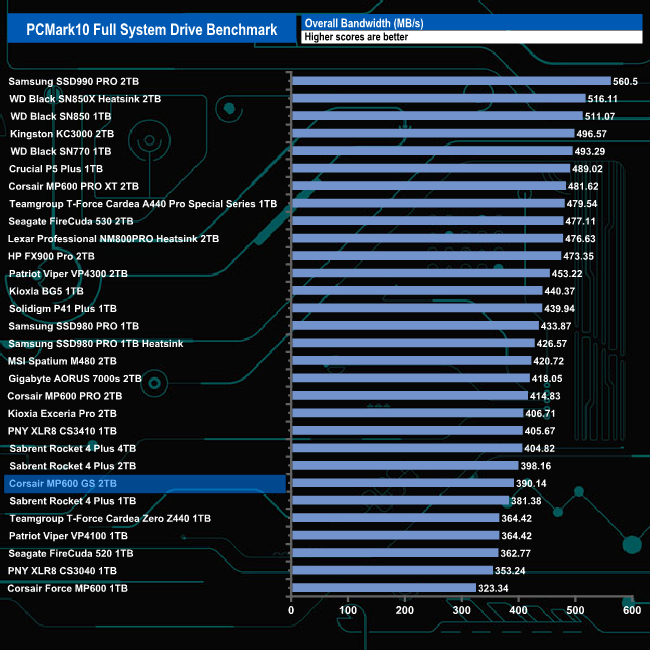

The overall bandwidth figure of 390.14MB/s sees the Corsair MP600 GS in the bottom half of the results chart. It betters the original Corsair Force MP600 by 66MB/s.
