The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage system performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously. Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

We are using version 4.1 for our NVMe disk tests.

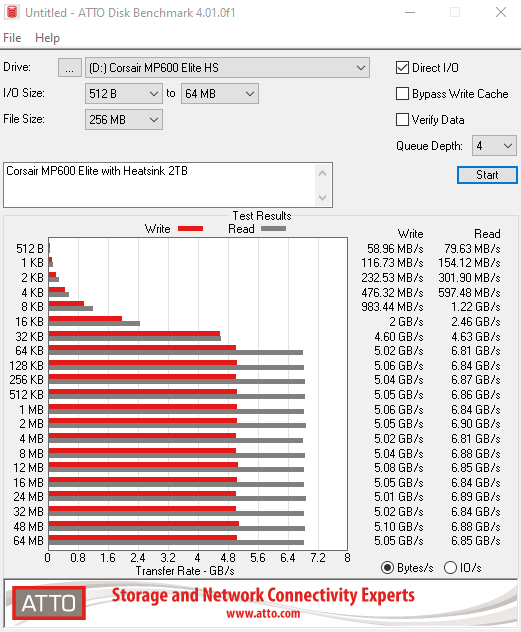

Using the ATTO benchmark, we couldn't quite hit the official maximum Sequential figures of 7,000MB/s and up to 6,500MB/s for reads and writes respectively. The best read figure we saw was 6,900MB/s while the best write result was 5,050MB/s.

Reads begin to level off at 64KB at 6,810MB/s eventually peaking at 6,900MB/s at the 2MB mark before dropping back to 6,880MB/s at the 8MB mark. Writes also start levelling off at the 64KB mark at 5,020MB/s and stay at that level more or less until the end of the test run.
