Gigabyte Z170-Gaming K3 Motherboard Review

Ryan Martin May 3, 2016 Component, Featured Announcement, Motherboard

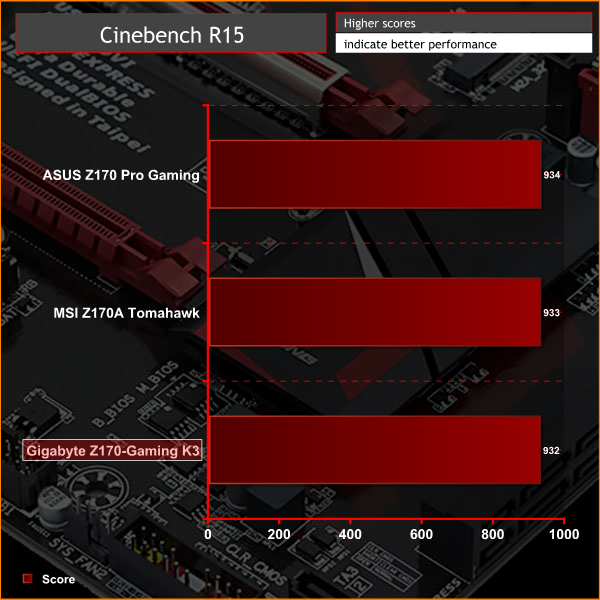

Cinebench R15

Cinebench is an application which renders a photorealistic 3D scene to benchmark a computer's rendering performance, on one CPU core, all CPU cores or using the GPU. We run the test using the all core CPU mode.

Gigabyte_Z170_GamingK3_Graphs_cine

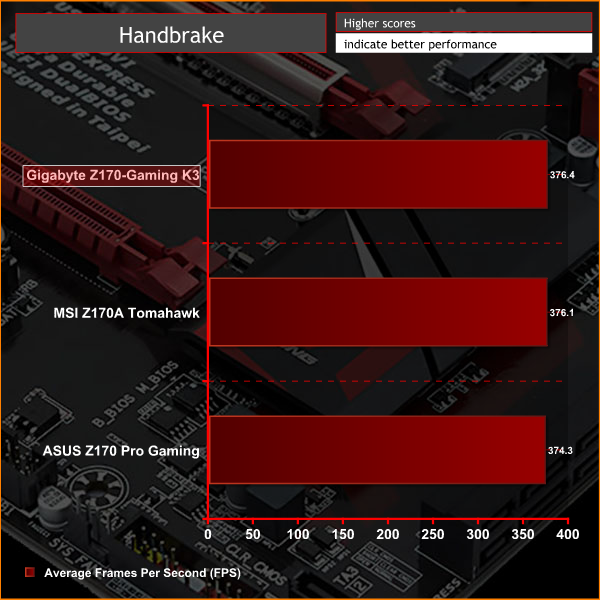

Handbrake

Handbrake is a free and open-source video transcoding tool that can be used to convert video files between different codecs, formats and resolutions. We use Handbrake to convert a short 720p into the Android preset built into the application.

Gigabyte_Z170_GamingK3_Graphs_handbrake

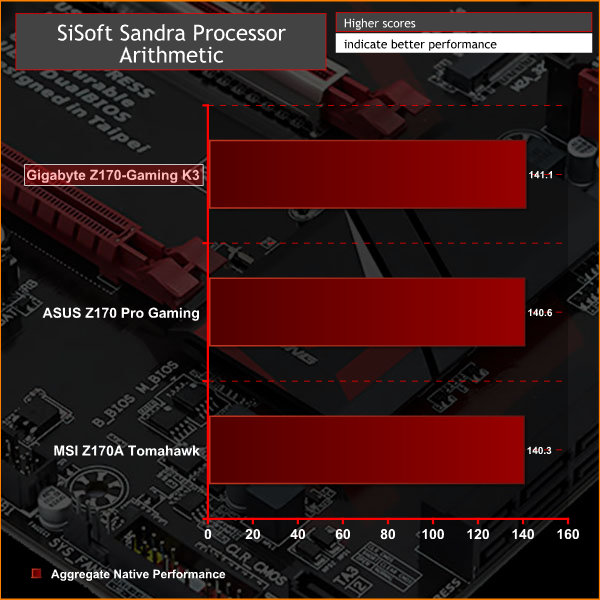

SiSoft Sandra

SiSoft Sandra 2016 is a multi-function utility program that supports remote analysis, benchmarking and diagnostic features for PCs, servers, mobile devices and networks. We run the application's processor arithmetic test to gauge the CPU performance on each tested motherboard.

Gigabyte_Z170_GamingK3_Graphs_SandraCPU

CPU performance is within margin of error for all tested Z170 motherboards once you standardise for different Turbo mode behaviour tweaks the vendors use. Most will automatically enable various turbo enhancements that increase the average operating frequency of Intel's CPUs, this is often implemented with XMP profiles. This can give the impression some motherboards are “faster” than others when in reality they just overclock the CPU more. In our testing we found that Gigabyte doesn't automatically implement all-core turbo when enabling the XMP profile, but we standardised for this by adjusting the multiplier hence all the results appear equal.

Become a Patron!

Pages: 1 2 3 4 5 6 7 8 9 10 11 12

Tags

Check Also

Games Emulation

KitGuru Games: The Best Console is the One in Your Pocket

Emulation is the saving grace of the video games industry. Despite its controversial nature, the technology will be the only way in which all games are preserved for the future – free from licensing agreements and other such nonsense. Better still is the fact that in a majority of cases, emulation allows for a more accurate recreation of the game’s original experience than official offerings, due to countless complex shaders, filters and tweakable settings. And the best part? Thanks to the progression of technology, your humble smartphone is able to do all this and more – giving you the power of 10,000 games in the palm of your hand.

4 comments

  1. JanxSpirit
    August 14, 2016 at 2:12 pm

    Your problem with the CPU not down-clocking when idle is probably due to one of the following reasons…

    1/ You’re running Windows with the performance profile enabled rather than using balanced,

    2/ You’re forcing a CPU core voltage which is a totally nonsensical way to overclock a Skylake CPU.

    Try running the balanced Windows profile and applying a positive CPU core voltage offset instead. It will work flawlessly and exactly as intended on this motherboard.

  2. Ezra
    April 14, 2017 at 9:35 am

    This does work well with 7th generation intel right?

  3. Modi Infosol Pvt. Ltd.
    November 6, 2017 at 11:37 am

    Gigabyte motherboards for gaming desktops, Laptop with gaming motherboard, motherboard price in Delhi, online gigabyte motherboard, all types of gaming motherboards are available at Modi Infosol Pvt. Ltd
    zte routers

  4. Axlworld
    November 22, 2017 at 11:40 am

    Ideas are great about the product, the big things is that it having long lasting and also available at affordable price.
