Super Flower Leadex Platinum 1000W PSU Review

Allan 'Zardon' Campbell February 24, 2014 Featured Announcement, Power Supplies


ACC_5564_DxO

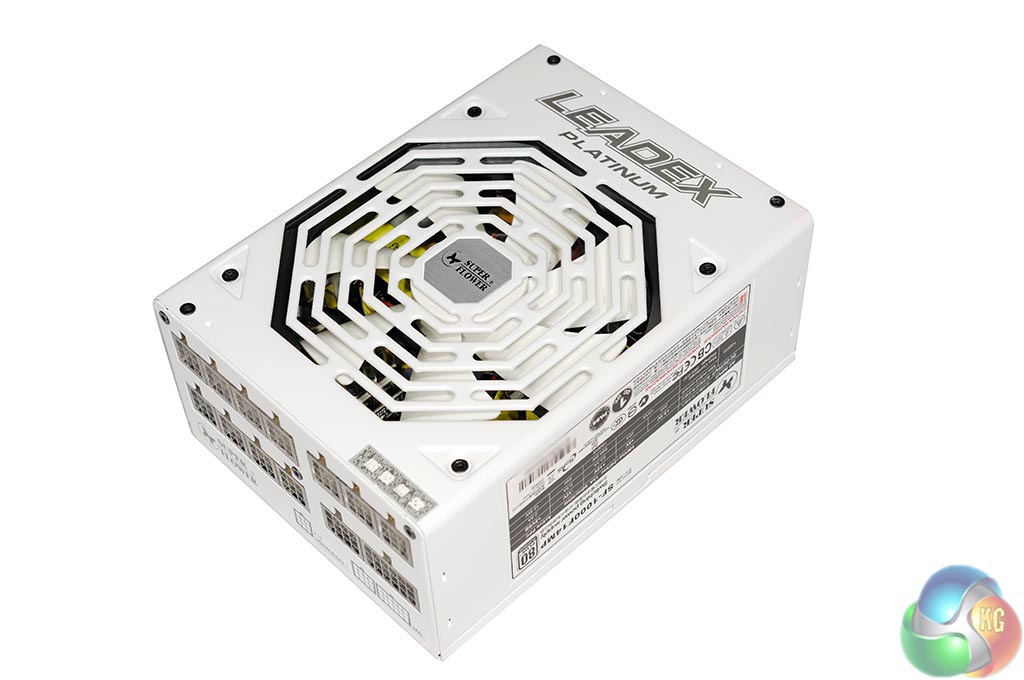

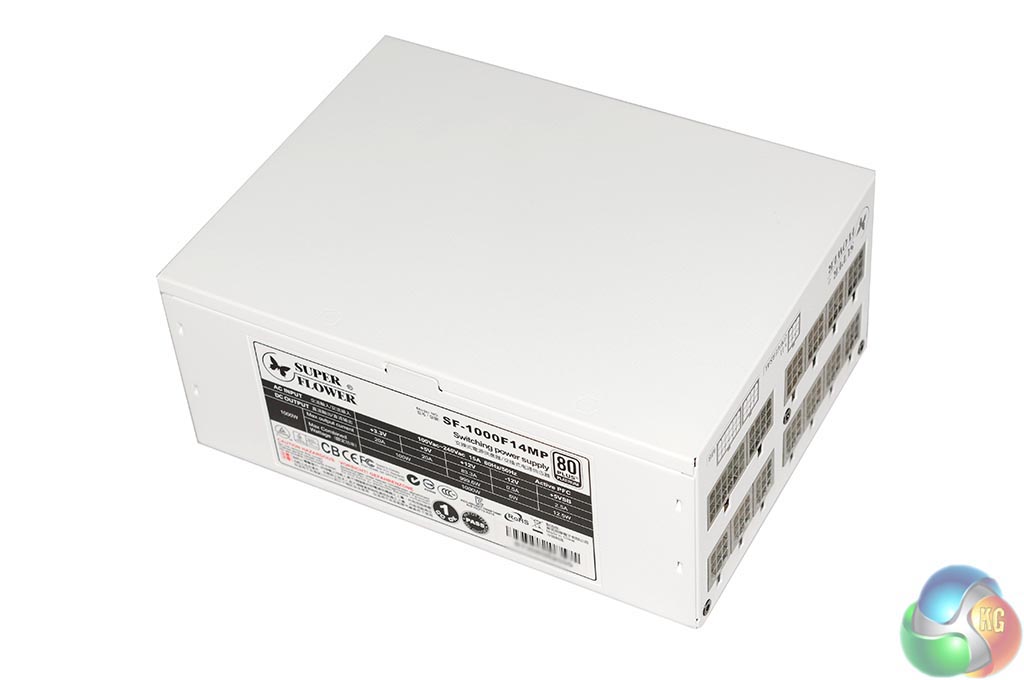

The Super Flower Leadtek Platinum 1000W power supply is very nicely finished. The white paintwork is deep and very resistant to fingerprints and rough handling. It measures 200 mm (L) x 150 mm (W) x 86 mm (H).
ACC_5563_DxOACC_5568_DxO

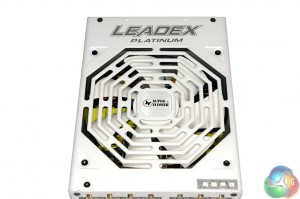

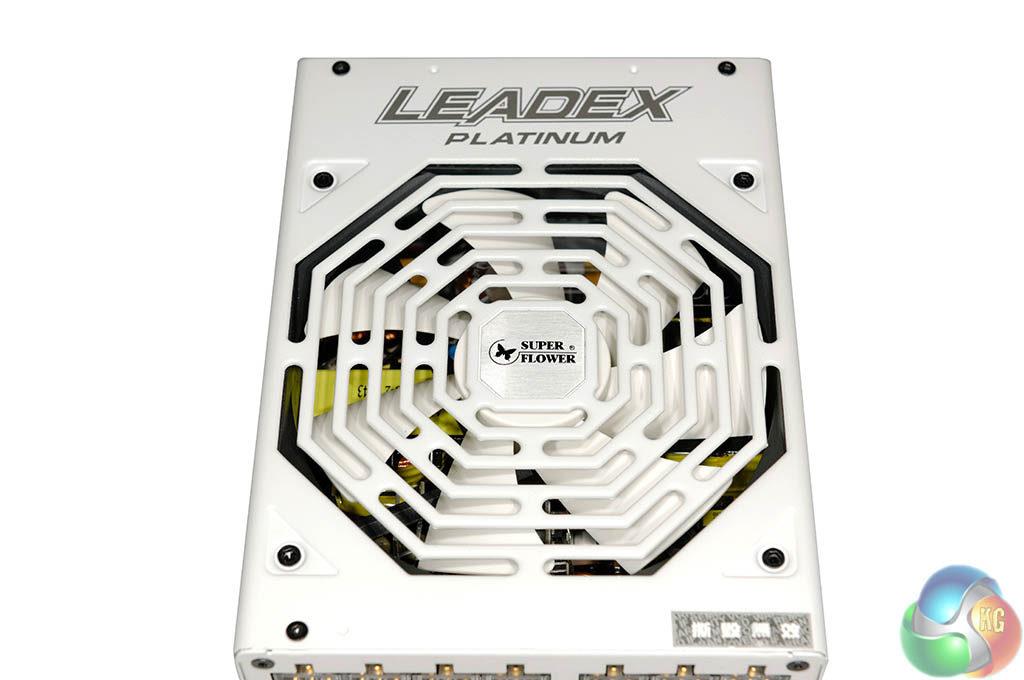

The white fan resides behind a white grill, keeping with the simple, yet effective colour scheme.
ACC_5573_DxO

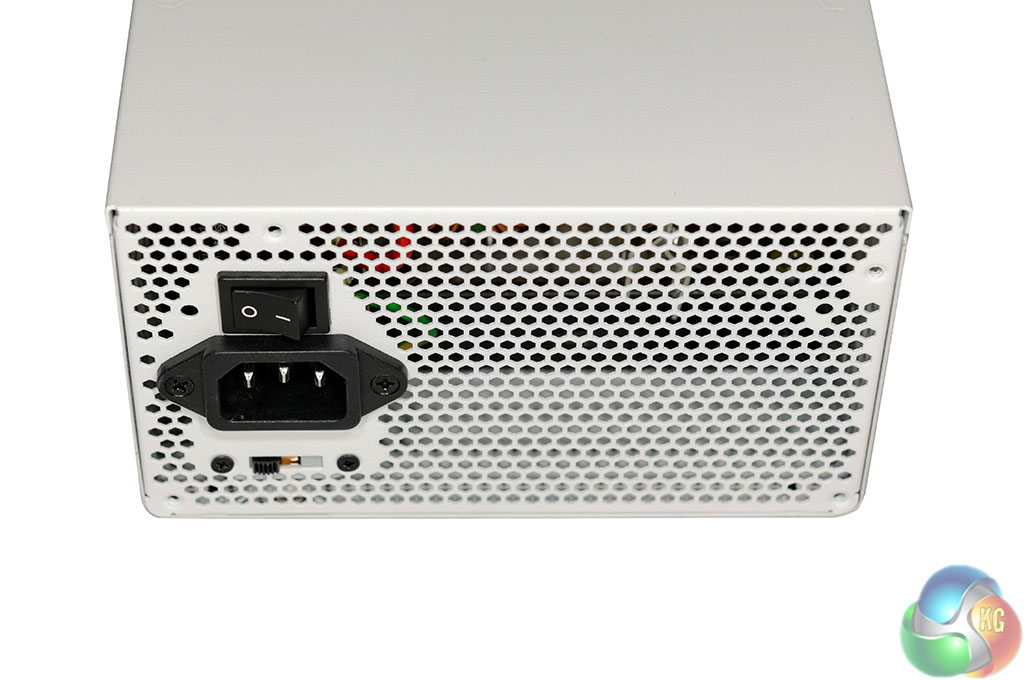

One side of the unit has a honeycomb style grill to aid with cooling. There is a power connector and switch at the side. We can also see a fanless mode switch which may confuse some of the user base. Best leaving it in the semi fanless default mode.
ACC_5572_DxO

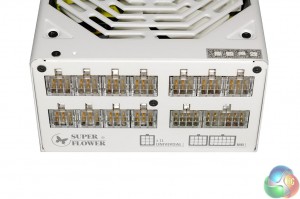

The modular panel is well laid out and pretty much fool proof. When the connectors are attached they glow white during operation. Ideal if you like to experiment with lighting inside case. Not so much, if you don't.
ACC_5566_DxO

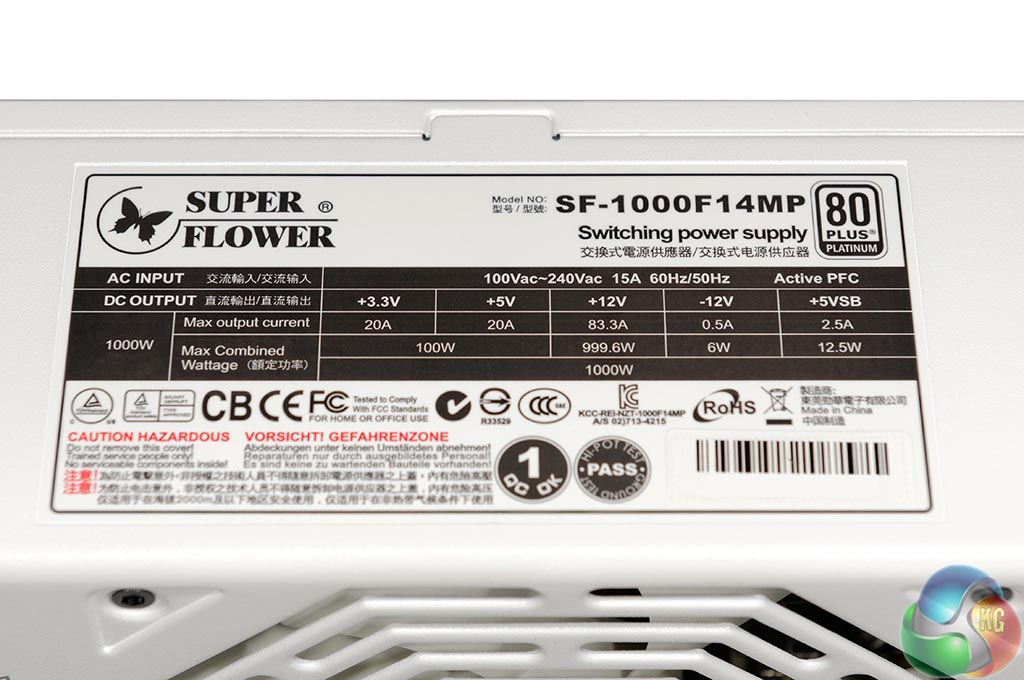

Super Flower Leadex Platinum 1000W
DC Output
+3.3V
+5V
 +12V
-12V
+5Vsb
Max Output
20A
20A
 83.3A
0.5A
2.5A
Total Power 100W 999.6W 6W 12.5W
1000W

The single +12V rail is powerful, delivering 83A for 999W of the maximum output.
